BRAKE CONTROL: SKID CONTROL SENSOR: INSTALLATION

INSTALLATION

1. INSTALL SKID CONTROL SENSOR
(a) Wipe off sealant attached to the sensor's fitting surface with white gasoline.
NOTE: Prevent foreign matter from attaching to the sensor rotor.

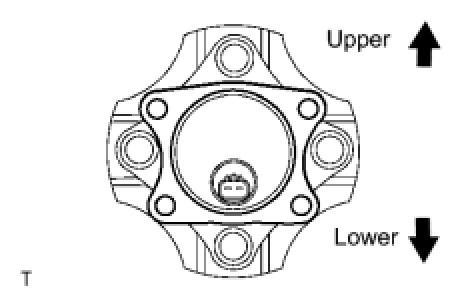

(b) Install a new sensor to the rear axle hub and bearing. The sensor connector should be placed in the lowest position.
HINT: The narrow side of the rear axle hub and bearing should be placed below.





(c) Using SST and a press, press the speed sensor so that it becomes flush with the rear axle hub and bearing.
SST: 09214-76011
NOTICE:
- Do not use a hammer on the sensor.
- Check that there is no foreign matter such as iron chips on the sensor's detecting portion.
- Slowly press the sensor in straight.

2. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY Installation
3. INSTALL SKID CONTROL SENSOR WIRE
4. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY Installation
5. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
6. INSPECT REAR WHEEL ALIGNMENT
(a) Inspect the rear wheel alignment Service and Repair.
7. CHECK ABS SPEED SENSOR SIGNAL
(a) Check the speed sensor signal Test Mode Procedure.
