Installation

BRAKE: BRAKE STROKE SIMULATOR CYLINDER: INSTALLATION

INSTALLATION

1. INSTALL BRAKE STROKE SIMULATOR CYLINDER SUB-ASSEMBLY





(a) Install the 2 stud bolts to the brake stroke simulator cylinder.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)

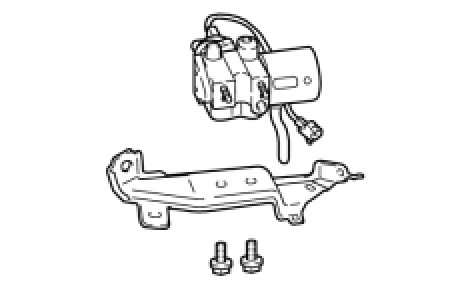

(b) Install the brake stroke simulator cylinder to the bracket with the 2 bolts.
Torque: 6.0 Nm (61 kgf-cm, 53 in-lbf)
(c) Install the connector clamp of the brake stroke simulator cylinder to the bracket.

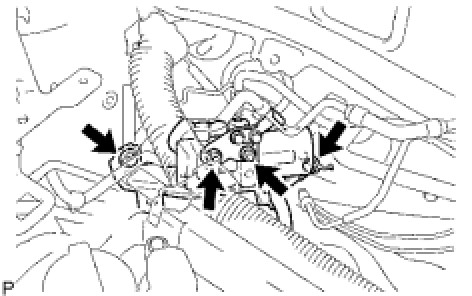

(d) Install the brake stroke simulator cylinder with bracket to the body with the 2 nuts and 2 bolts.
Torque: 8.5 Nm (87 kgf-cm, 75 in-lbf)

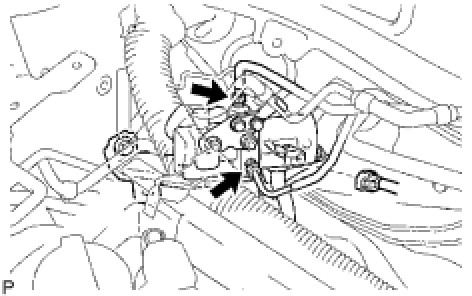

(e) Using SST, connect the 2 brake tubes to the brake stroke simulator cylinder.
SST: 09023-00101
Torque: 15 Nm (155 kgf-cm, 11 ft-lbf)
(f) Connect the connector.
2. INSTALL OUTER FRONT COWL TOP PANEL SUB-ASSEMBLY Installation
3. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
(a) Install the windshield wiper motor and link Installation.
HINT: Refer to the procedures from the installation of the windshield wiper motor and link assembly up until the installation of the front wiper arm LH/RH.

4. FILL RESERVOIR WITH BRAKE FLUID Service and Repair
5. BLEED AIR FROM MASTER CYLINDER/STROKE SIMULATOR Service and Repair
6. INSPECT FOR BRAKE FLUID LEAK
7. CHECK FLUID LEVEL IN RESERVOIR
(a) Adjust the brake fluid level to the MAX line with the power switch on (IG).
NOTE: The brake fluid level must always be adjusted to the MAX line.

8. CHECK AND CLEAR DTC
(a) Check and clear the DTC Reading and Clearing Diagnostic Trouble Codes.
9. CHECK OPERATION Brake Stroke Simulator Cylinder
