Removal

PARKING BRAKE: PARKING BRAKE CABLE: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the No. 2 and No. 3 parking brake cable assembly.
- The procedures listed below are for the No. 3 parking brake cable assembly.

1. PRECAUTION
CAUTION: Be sure to read the "PRECAUTION" thoroughly before servicing. Service Precautions

2. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
3. DISCONNECT SUCTION HOSE SUB-ASSEMBLY Removal
4. DISCONNECT COOLER REFRIGERANT LIQUID PIPE E Removal
5. DISCONNECT HEATER WATER HOSE B Removal
6. DISCONNECT HEATER WATER HOSE A Removal
7. REMOVE REAR NO. 2 FLOOR BOARD Removal
8. REMOVE REAR DECK FLOOR BOX Removal
9. REMOVE REAR NO. 3 FLOOR BOARD Removal
10. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

11. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
(a) Remove the instrument panel Removal.
HINT: Refer to the procedures from the removal of the No. 1 instrument panel register assembly up until the removal of the instrument panel sub-assembly.

12. REMOVE NO. 2 STEERING WHEEL COVER LOWER
13. REMOVE NO. 3 STEERING WHEEL COVER LOWER
14. REMOVE STEERING PAD ASSEMBLY Removal
15. REMOVE STEERING WHEEL ASSEMBLY Removal
16. REMOVE TILT LEVER BRACKET Removal
17. REMOVE STEERING COLUMN COVER Removal
18. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY Removal
19. REMOVE FRONT DOOR SCUFF PLATE LH Removal
20. REMOVE FRONT DOOR SCUFF PLATE RH Removal
21. REMOVE COWL SIDE TRIM BOARD LH Removal
22. REMOVE COWL SIDE TRIM BOARD RH Removal
23. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Removal
24. REMOVE RADIO RECEIVER ASSEMBLY
25. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL Removal
26. REMOVE GLOVE COMPARTMENT DOOR LOCK COVER Removal
27. REMOVE GLOVE COMPARTMENT DOOR LOCK ASSEMBLY Removal
28. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL Removal
29. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
30. REMOVE POWER STEERING ECU Removal
31. REMOVE SHIFT LEVER ASSEMBLY Removal
32. REMOVE REAR NO. 3 AIR DUCT Removal
33. REMOVE NO. 3 HEATER TO REGISTER DUCT Removal
34. REMOVE NO. 1 HEATER TO REGISTER DUCT Removal
35. REMOVE NO. 2 HEATER TO REGISTER DUCT Removal
36. REMOVE DEFROSTER NOZZLE ASSEMBLY Removal
37. REMOVE ECM Removal
38. REMOVE HYBRID VEHICLE CONTROL ECU Removal
39. REMOVE NETWORK GATEWAY ECU
40. REMOVE NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY Removal
41. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY Removal
42. REMOVE STEERING COLUMN ASSEMBLY Removal
43. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY Removal
44. REMOVE FRONT SEAT ASSEMBLY LH/RH
(a) Remove the front seat LH/RH Removal.
45. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal
46. REMOVE CONSOLE BOX POCKET
47. REMOVE CONSOLE BOX CARPET
48. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY Removal
49. REMOVE FRONT FLOOR FOOTREST Removal
50. REMOVE CENTER AIRBAG SENSOR ASSEMBLY Removal
51. REMOVE YAW RATE SENSOR (w/ VSC) Removal
52. REMOVE NO. 1 CONSOLE BOX MOUNTING BRACKET Removal
53. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY Removal
54. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY

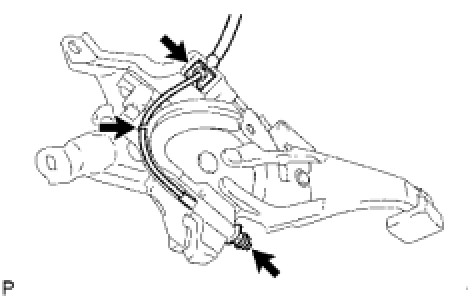

(a) Unbend the parking brake pedal claw.
(b) Remove the lock nut and adjusting nut of the No. 1 parking brake cable from the parking brake pedal.
(c) Disengage the clip and remove the No. 1 parking brake cable from the parking brake pedal.
55. REMOVE REAR WHEEL
56. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY Removal
57. SEPARATE PARKING BRAKE SHOE STRUT SET LH Disassembly
58. REMOVE FRONT BRAKE SHOE Disassembly
59. REMOVE PARKING BRAKE SHOE STRUT SET LH Disassembly
60. REMOVE REAR BRAKE AUTOMATIC ADJUST LEVER LH Disassembly
61. REMOVE REAR BRAKE SHOE Disassembly
62. REMOVE REAR BRAKE PARKING BRAKE SHOE LEVER SUB-ASSEMBLY Disassembly
63. REMOVE HEATED OXYGEN SENSOR Removal
64. REMOVE FRONT FLOOR PANEL BRACE Removal
65. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal
66. REMOVE PARKING BRAKE CABLE HEAT INSULATOR
(a) Remove the 2 nuts and separate the parking brake cable heat insulator.
67. REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY

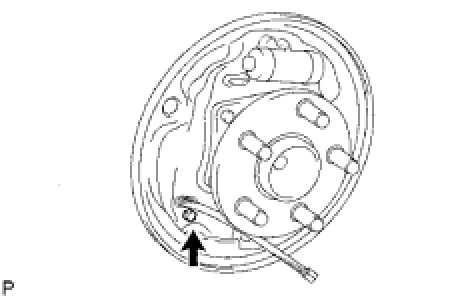

(a) Remove the bolt and No. 3 parking brake cable from the backing plate.

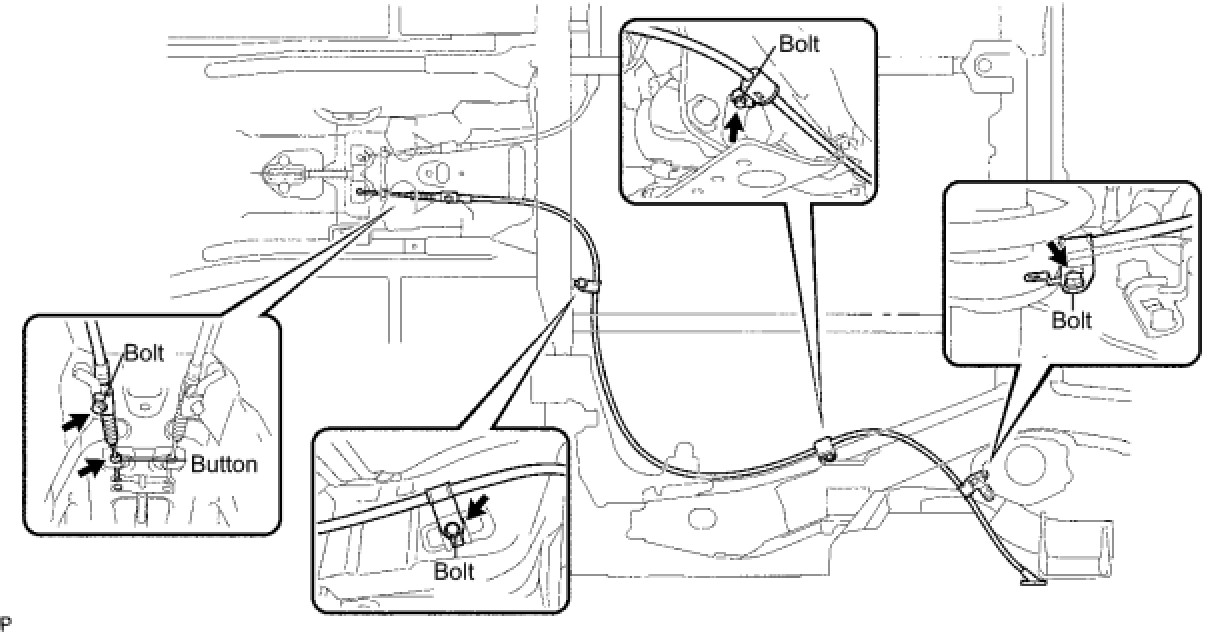

(b) Remove the bolts, button and No. 3 parking brake cable.
