Cruise Control Switch: Testing and Inspection

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSPECTION

INSPECTION

1. INSPECT CRUISE CONTROL MAIN SWITCH





(a) Measure the resistance of the switch.

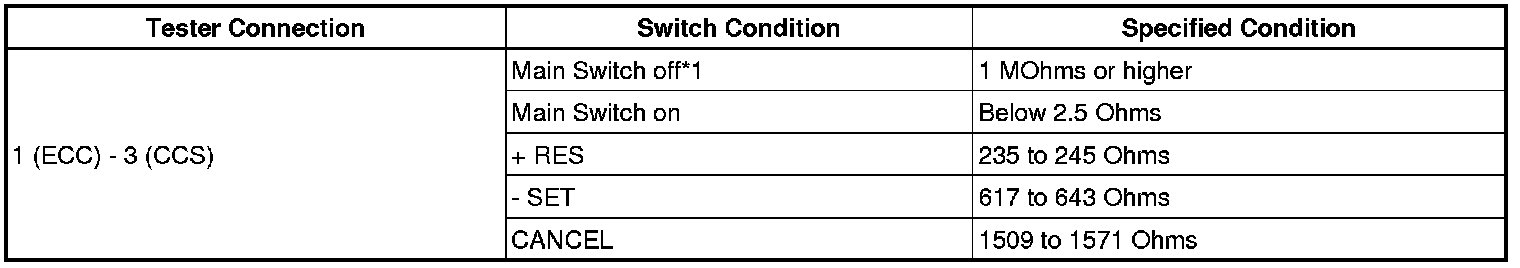

Standard Resistance:





*1: Lever is in the neutral position
If the result is not as specified, replace the switch assembly.
