Cruise Control: Description and Operation

CRUISE CONTROL: CRUISE CONTROL SYSTEM:

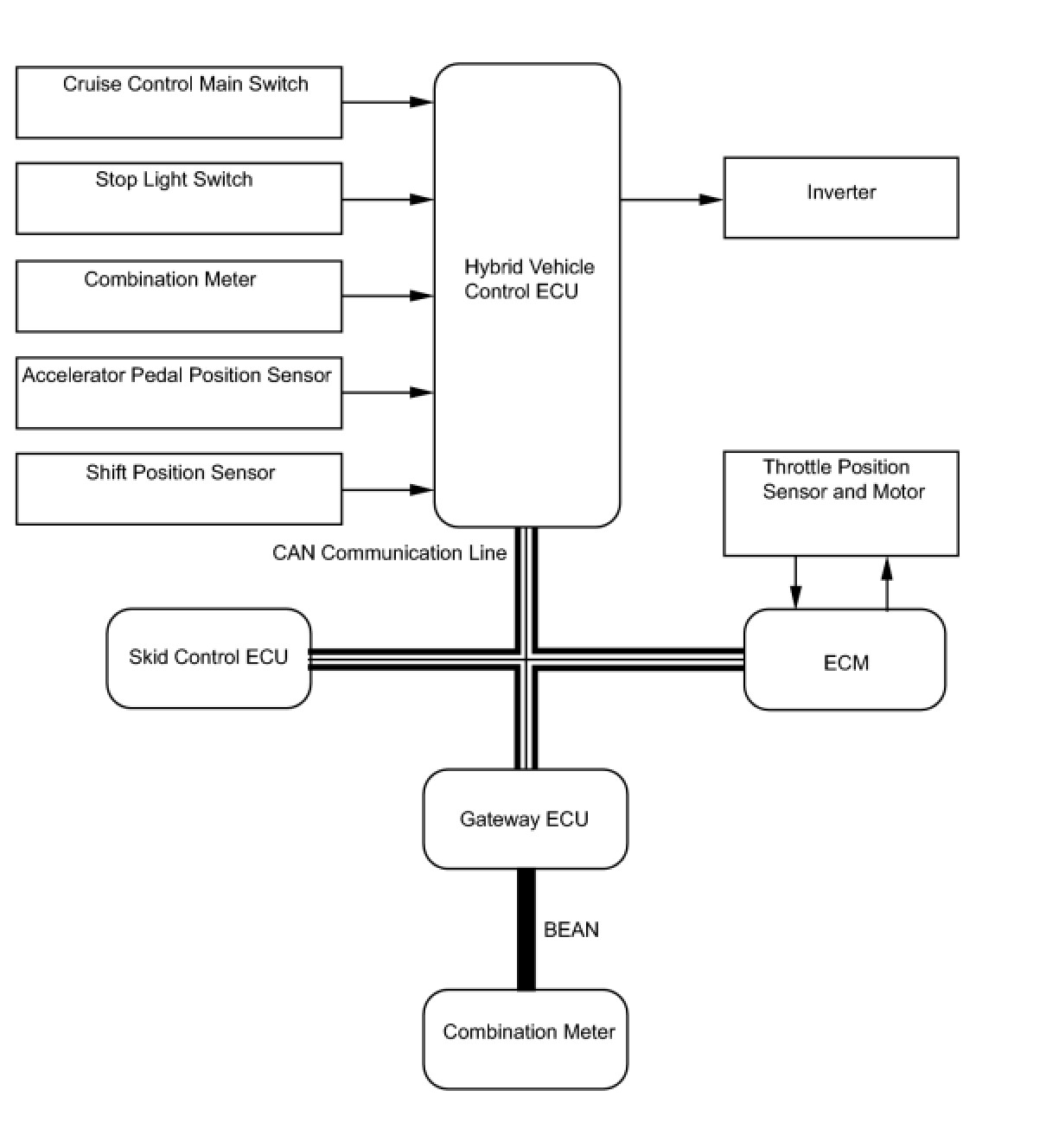

SYSTEM DIAGRAM

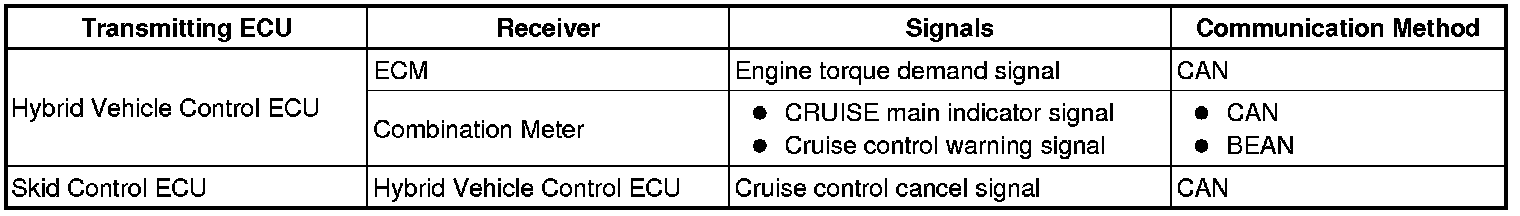

Communication method





SYSTEM DESCRIPTION

1. CRUISE CONTROL SYSTEM DESCRIPTION
The cruise control system controls constant speed driving. It enables the driver to adjust vehicle speed by operating the cruise control main switch without using the accelerator pedal.
Receiving signals from each switch and sensor, the hybrid vehicle control ECU controls constant speed driving by optimizing the use of the engine and motor driving force.
2. LIMIT CONTROL
(a) Low speed limit
The lowest possible limit of the speed setting range is approximately 40 km/h (25 mph). The cruise control system cannot be set when the driving speed is below the low speed limit. Cruise control operation will be automatically canceled but the stored vehicle speed will be retained when the vehicle speed drops below the low speed limit while the cruise control is in operation.
(b) High speed limit
The highest possible limit of the speed setting range is approximately 180 km/h (112 mph). The cruise control system cannot be set when the driving speed is over the high speed limit. When accelerating using RESUME/+ with the cruise control main switch assembly, the speed cannot be set beyond the high speed limit.
3. CRUISE CONTROL OPERATION
(a) Cruise control main switch
The cruise control main switch operates 7 functions: SET, COAST, TAP-DOWN, RESUME, ACCEL, TAP-UP, and CANCEL. The SET, TAP-DOWN and COAST functions, and the RESUME, TAP-UP and ACCEL functions share the same switch. Each function can be controlled by moving the switch in the directions of the arrows on the cruise control main switch assembly. The switch will return automatically after it is released.
(b) Set control
Vehicle speed is stored and constant speed control is maintained when pushing the switch to - SET while driving with the cruise control main switch ON-OFF button "on" (CRUISE main indicator light is on), and the vehicle speed is within the set speed range (between the low and high speed limits).
(c) Coast control
The hybrid vehicle control ECU decreases the cruise control demand speed and controls the engine and motor driving force to decelerate the vehicle when - SET on the cruise control main switch is pressed and held while the cruise control system is in operation. Vehicle speed, when the cruise control main switch is released from - SET, is stored and constant speed control is maintained.
(d) Tap-down control
When tapping down on the cruise control main switch to - SET (for approx. 0.5 seconds) while the cruise control system is in operation, the stored vehicle speed decreases each time by approximately 1.6 km/h (1.0 mph).
However, when the difference between the driving and the stored vehicle speed is more than 5 km/h (3.1 mph) and the cruise control main switch is released from - SET, the vehicle speed will be stored and constant speed control is maintained.
(e) Acceleration control
The hybrid vehicle control ECU increases the cruise control demand speed and controls the engine and motor driving force to accelerate the vehicle when + RES on the cruise control main switch is pressed and held while the cruise control system is in operation.
Vehicle speed, when the cruise control main switch is released from + RES, is stored and constant speed control is maintained.
(f) Tap-up control
When tapping up on the cruise control main switch to + RES (for approx. 0.5 seconds) while the cruise control system is in operation, the stored vehicle speed increases each time by approximately 1.6 km/h (1.0 mph). However, when the difference between the driving and the stored vehicle speed is more than 5 km/h (3.1 mph), the stored vehicle speed will not be changed.
(g) Resume control
If constant speed control was canceled with the stop light switch or the CANCEL switch, and if driving speed is within the limit range, pushing the cruise control main switch to + RES restores vehicle speed memorized at the time of cancellation, and restarts constant speed control.
(h) Manual cancel control
Doing any of the following cancels the cruise control system while in operation. (The stored vehicle speed in the hybrid vehicle ECU is maintained).
- Depressing the brake pedal
- Shifting into any position except D
- Pushing the cruise control main switch to CANCEL
- Pushing the cruise control main switch ON-OFF button "off" (The stored vehicle speed in the hybrid vehicle control ECU is not maintained).

(i) Auto cancel (fail-safe)
This system has an automatic cancellation function (fail-safe) Fail-Safe Chart.
