Diagnosis System

CRUISE CONTROL: CRUISE CONTROL SYSTEM: DIAGNOSIS SYSTEM

DIAGNOSIS SYSTEM

1. DESCRIPTION
The ECU controls the function of cruise control on this vehicle. Data of the cruise control or DTC can be read from DLC3 of the vehicle. When a trouble occurs with cruise control, check that the CRUISE main indicator light does not come on but DTC inspection is performed. Therefore when there seems to be a problem with the cruise control, use the Techstream or SST to check and troubleshoot it.
2. CHECK DLC3

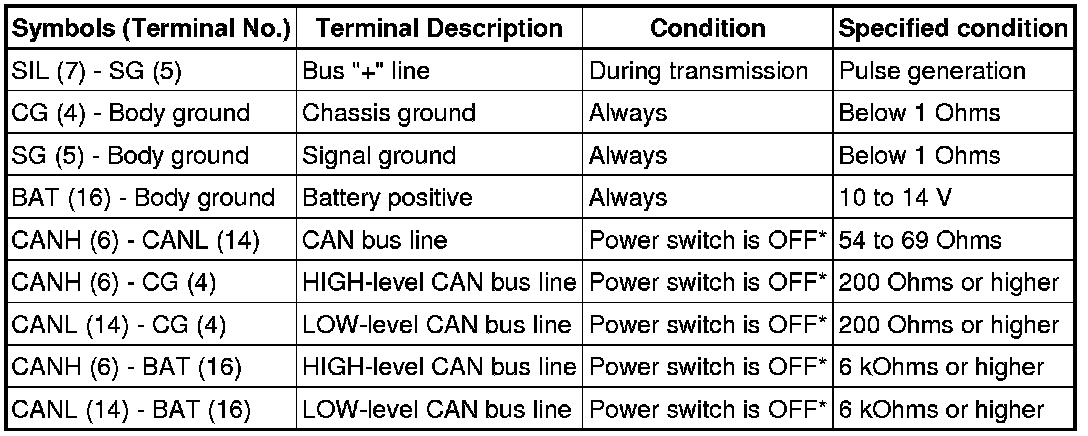

(a) The hybrid vehicle control ECU of the vehicle uses ISO 15765-4 for communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.





NOTE: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the power switch, any other switches or the doors.
If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

(b) Connect the cable of the Techstream to the DLC3, turn the power switch on (IG) and attempt to use the Techstream. If the display indicates that a communication error has occurred, there is a problem with either the vehicle or the Techstream.
- If communication is normal when the Techstream is connected to another vehicle, inspect the DLC3 of the original vehicle.
- If communication is still not possible when the Techstream is connected to another vehicle, the problem may be in the Techstream itself. Consult the Service Department listed in the Techstream's instruction manual.





3. CHECK INDICATOR
(a) Turn the power switch on (IG).
(b) Check that the CRUISE main indicator light comes on when the cruise control main switch ON-OFF button is pushed on, and that the indicator light goes off when the ON-OFF button is pushed off.
HINT:
- If there is a problem with the indicator light, inspect the CRUISE main indicator light circuit Cruise Main Indicator Light Circuit.
- If a malfunction occurs in the vehicle speed sensor, stop light switch or other related parts while driving with cruise control, and the hybrid vehicle control ECU activates AUTO CANCEL of the cruise control and then the CRUISE main indicator light starts to blink, informing the driver of the malfunction. At the same time, data of the malfunction is stored as a DTC.
