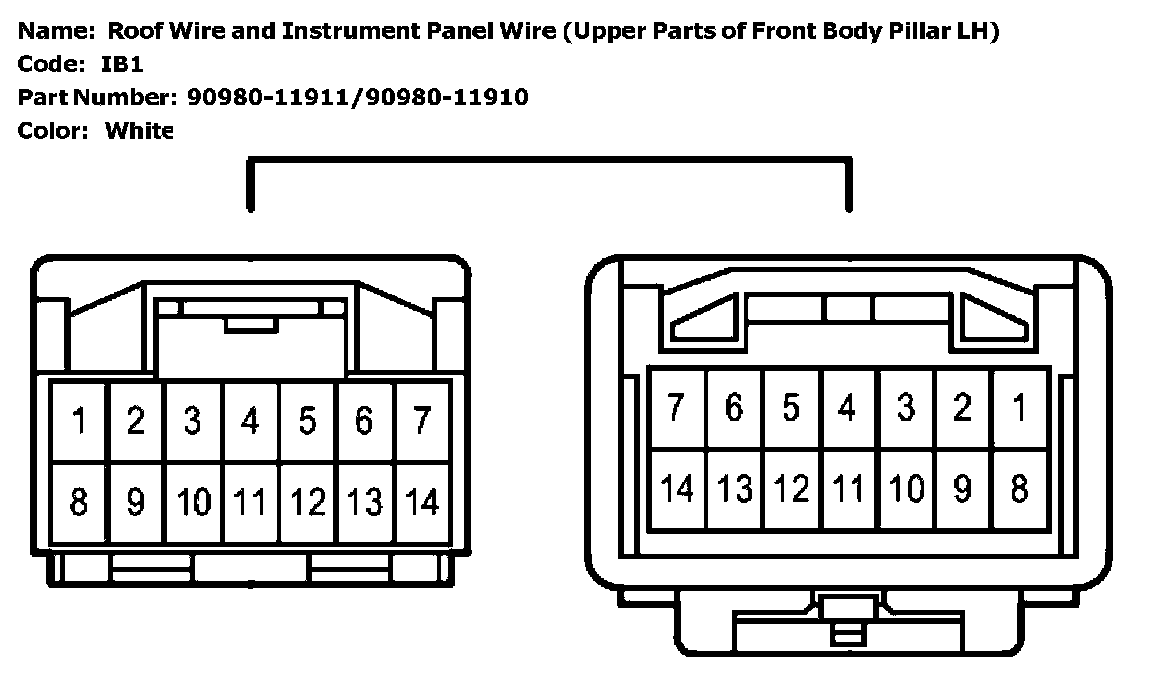

IB1 (Roof Wire and Instrument Panel Wire (Upper Parts of Front Body Pillar LH))
IB1 (Roof Wire and Instrument Panel Wire (Upper Parts of Front Body Pillar LH))
