Relay Box

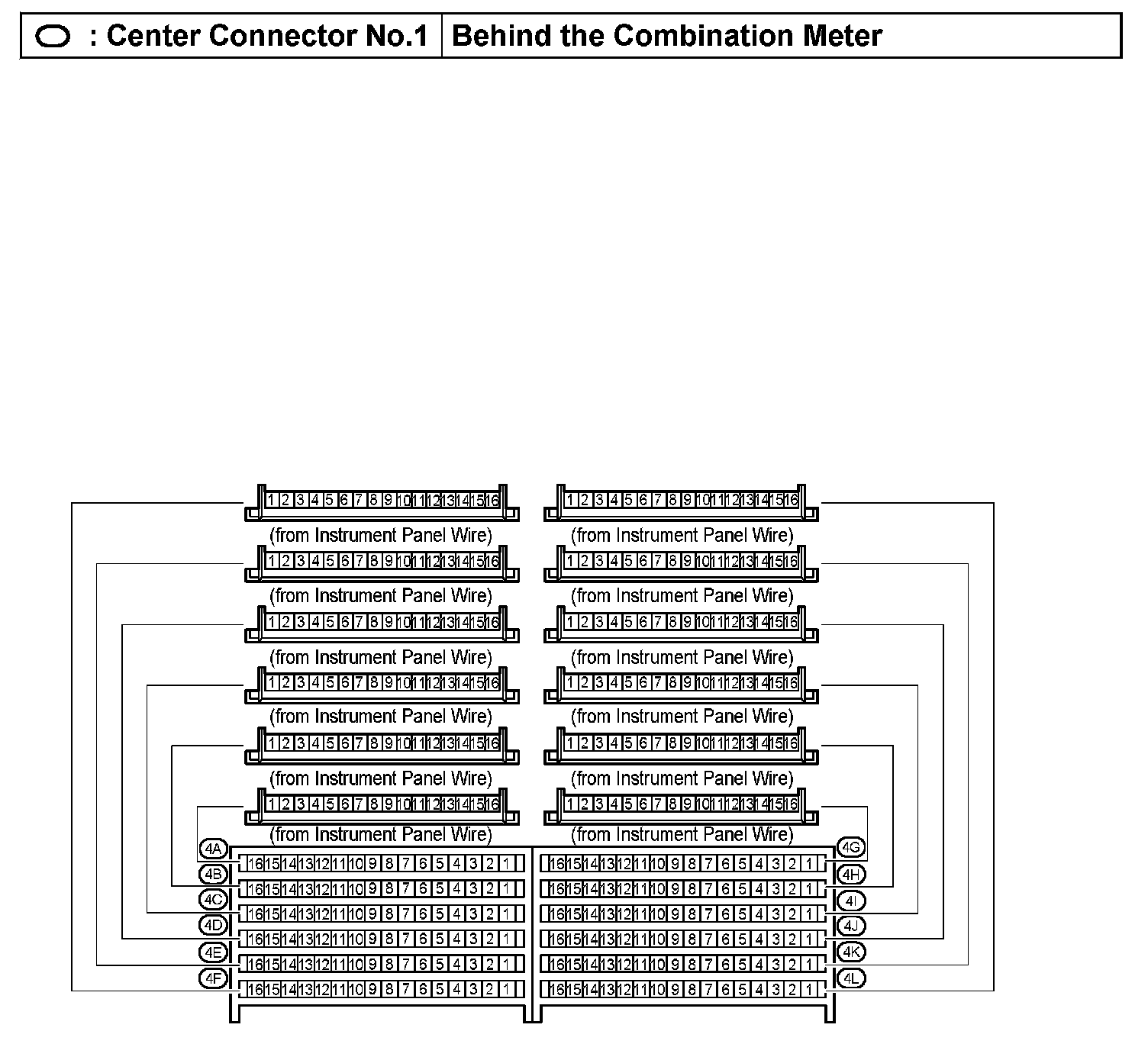

Center Connector No.1 - Behind The Combination Meter:

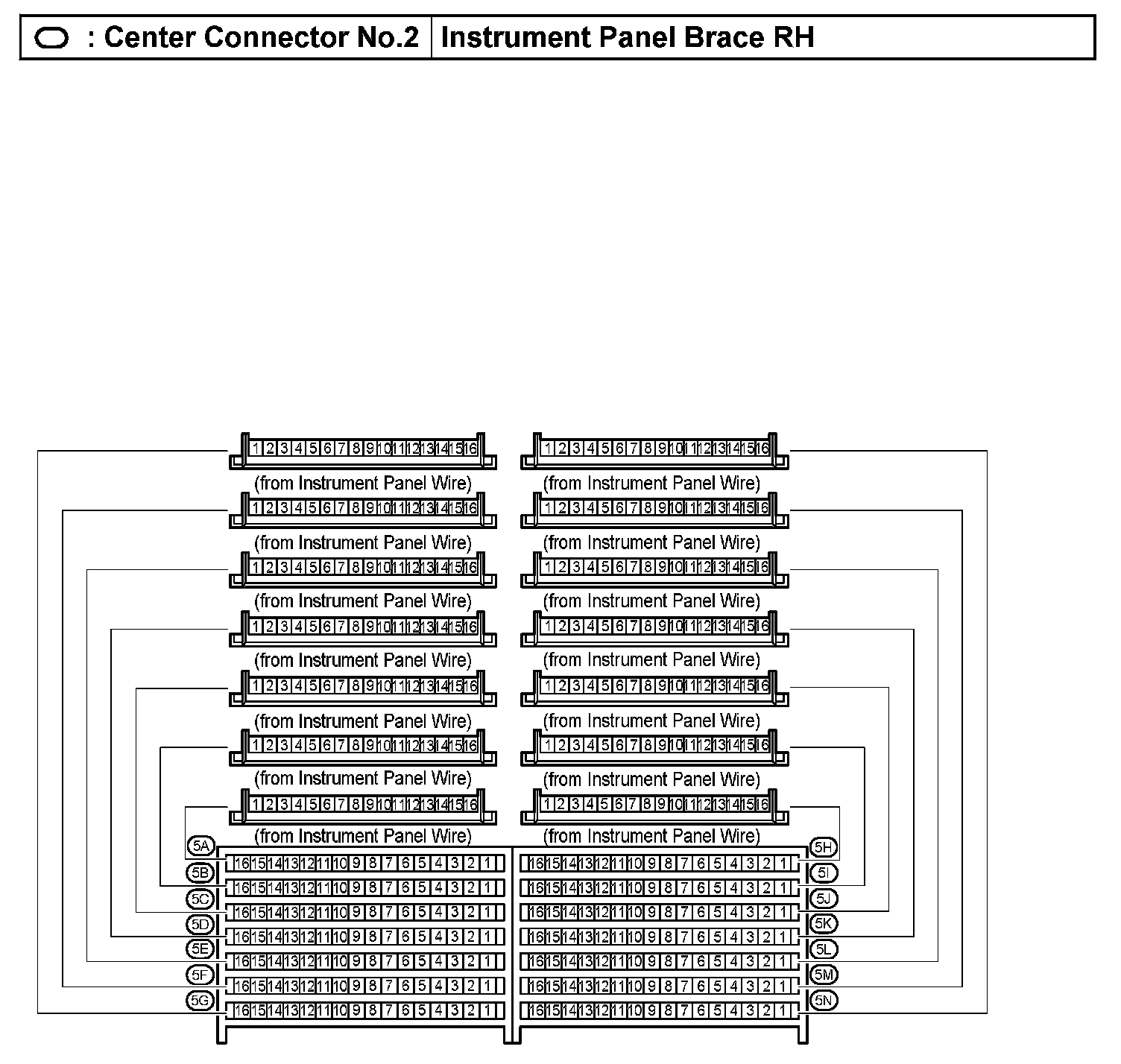

Center Connector No.2 - Instrument Panel Brace RH:

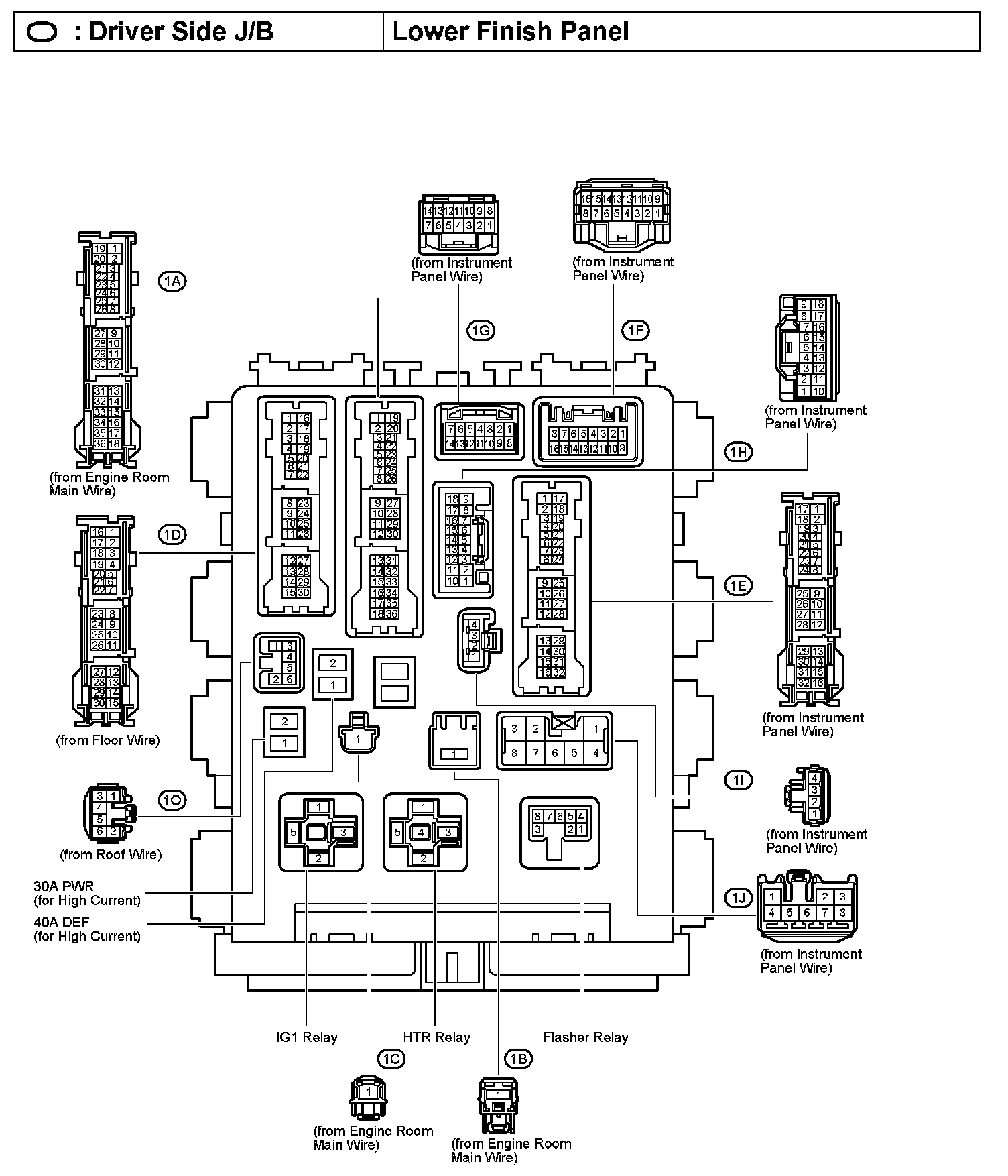

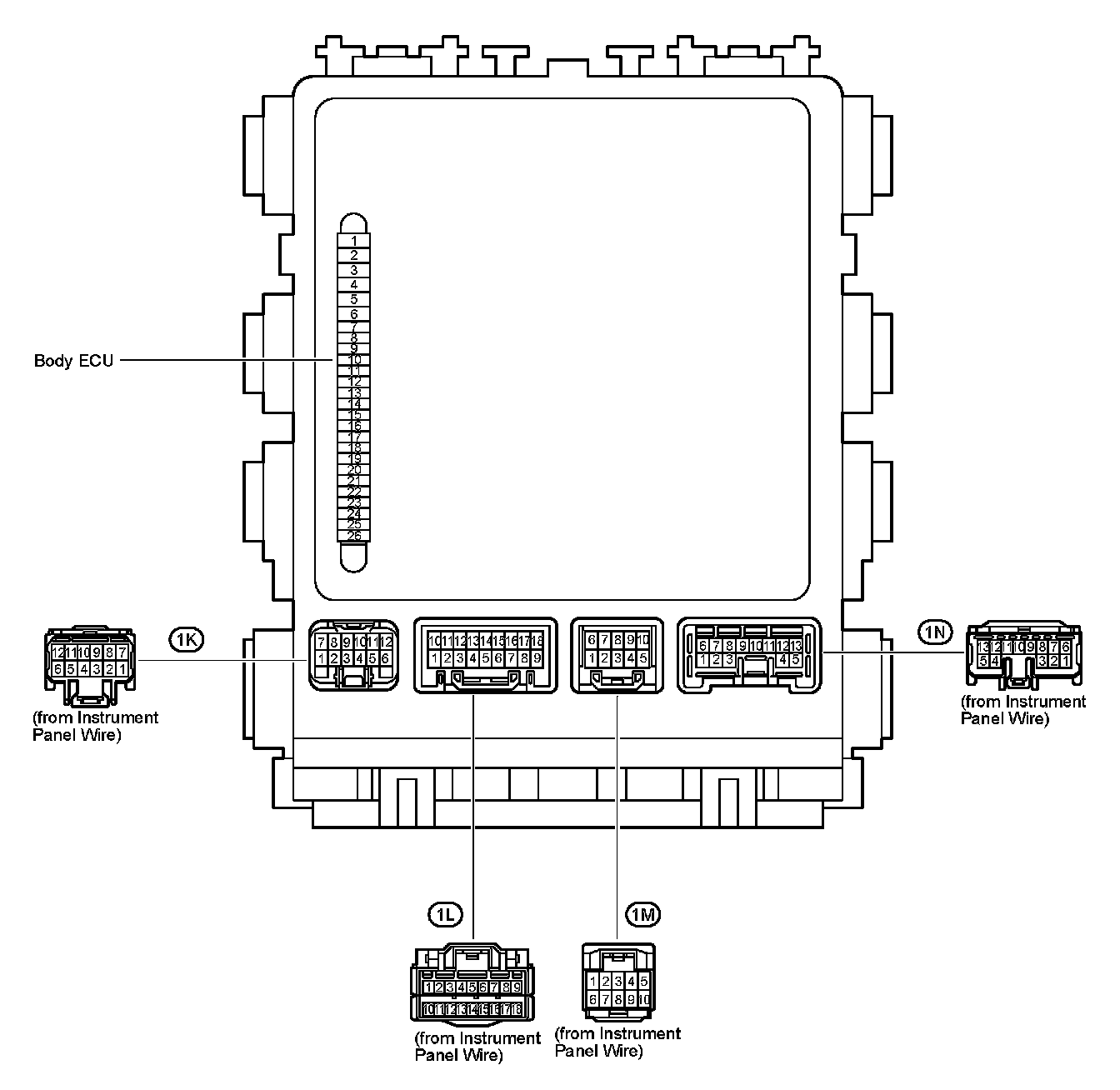

Driver Side J/B - Lower Finish Panel:

Driver Side J/B - Lower Finish Panel:

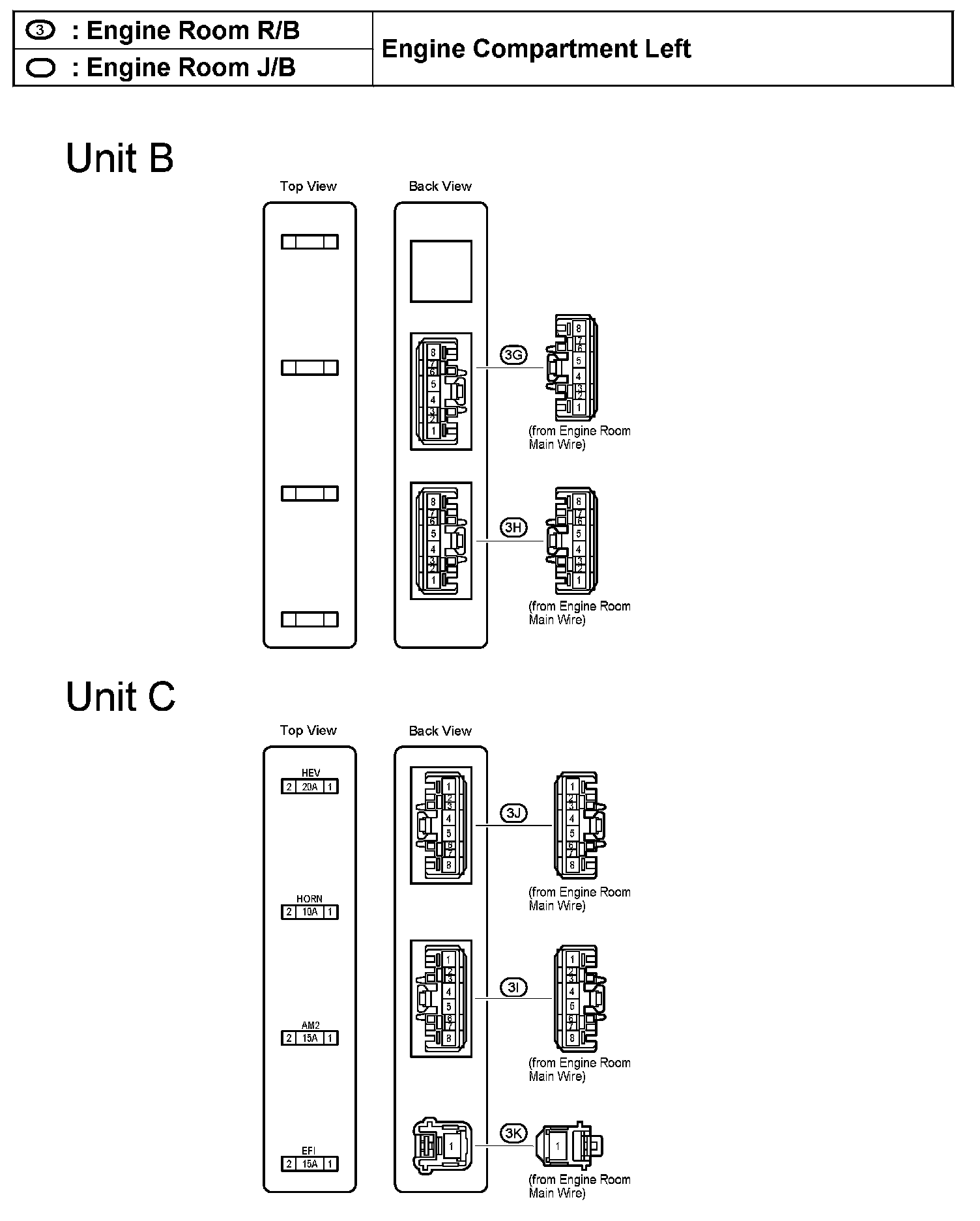

Engine Room R/B, J/B - Engine Compartment Left:

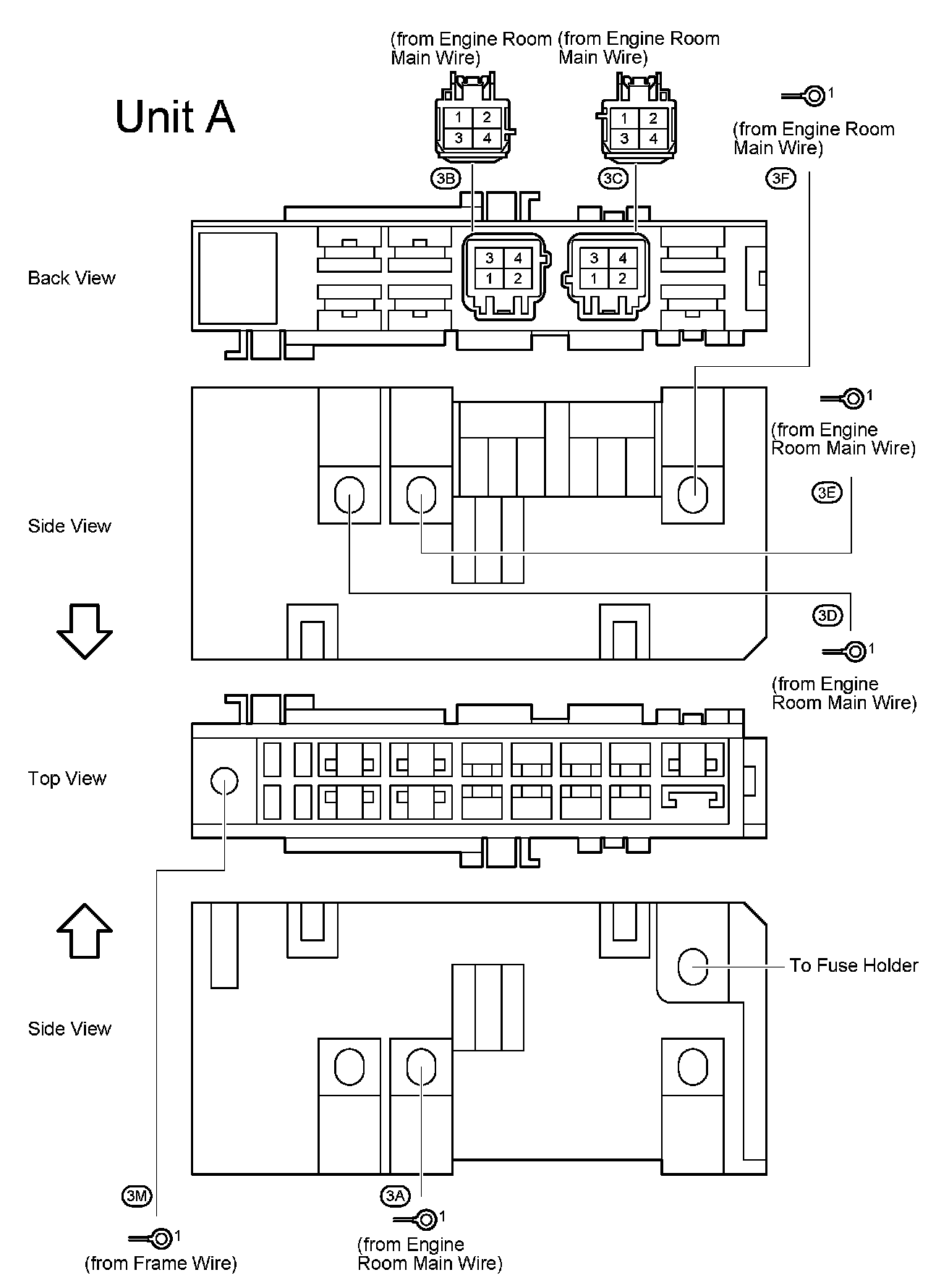

Engine Room R/B, J/B - Engine Compartment Left:

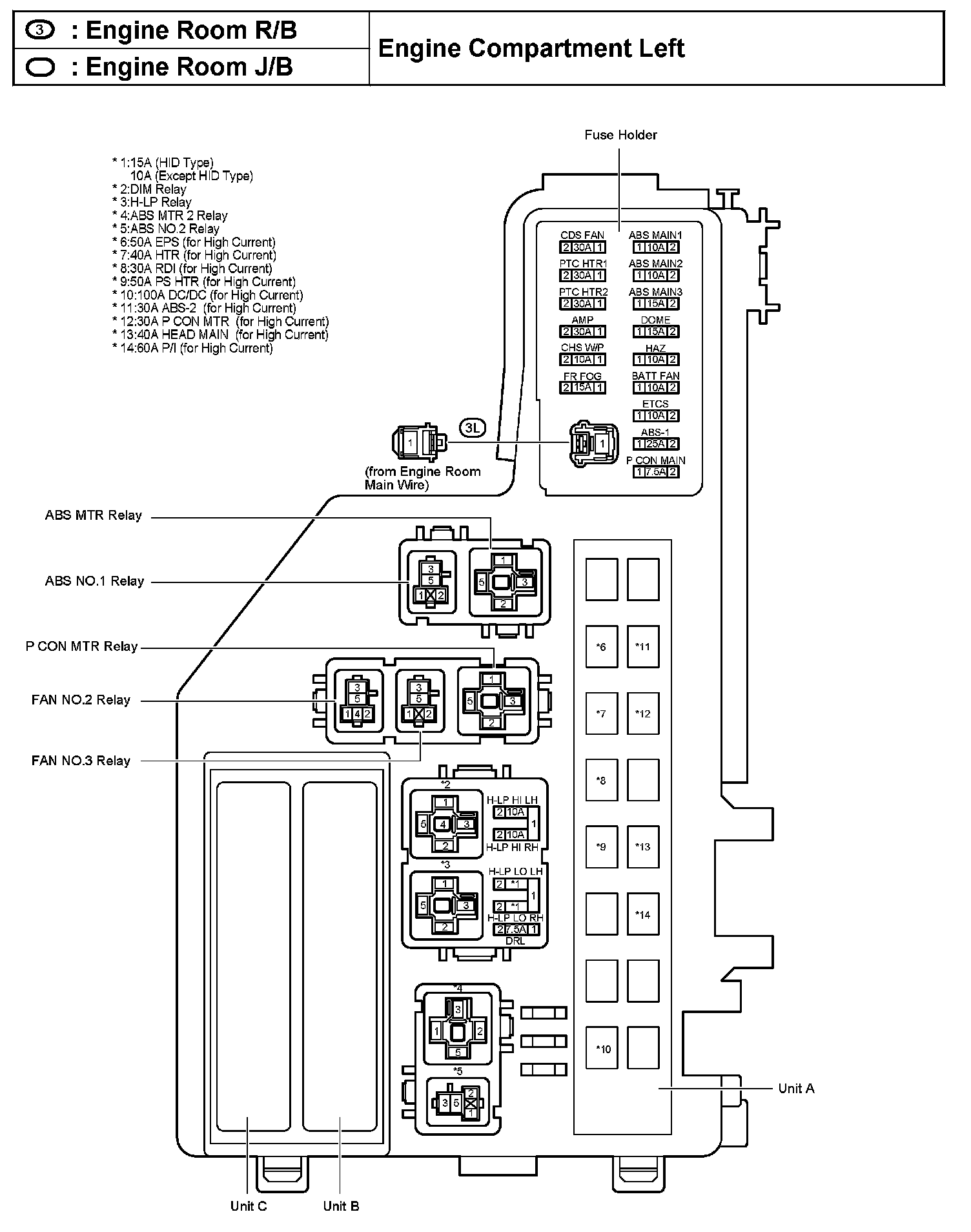

Engine Room R/B, J/B - Engine Compartment Left:

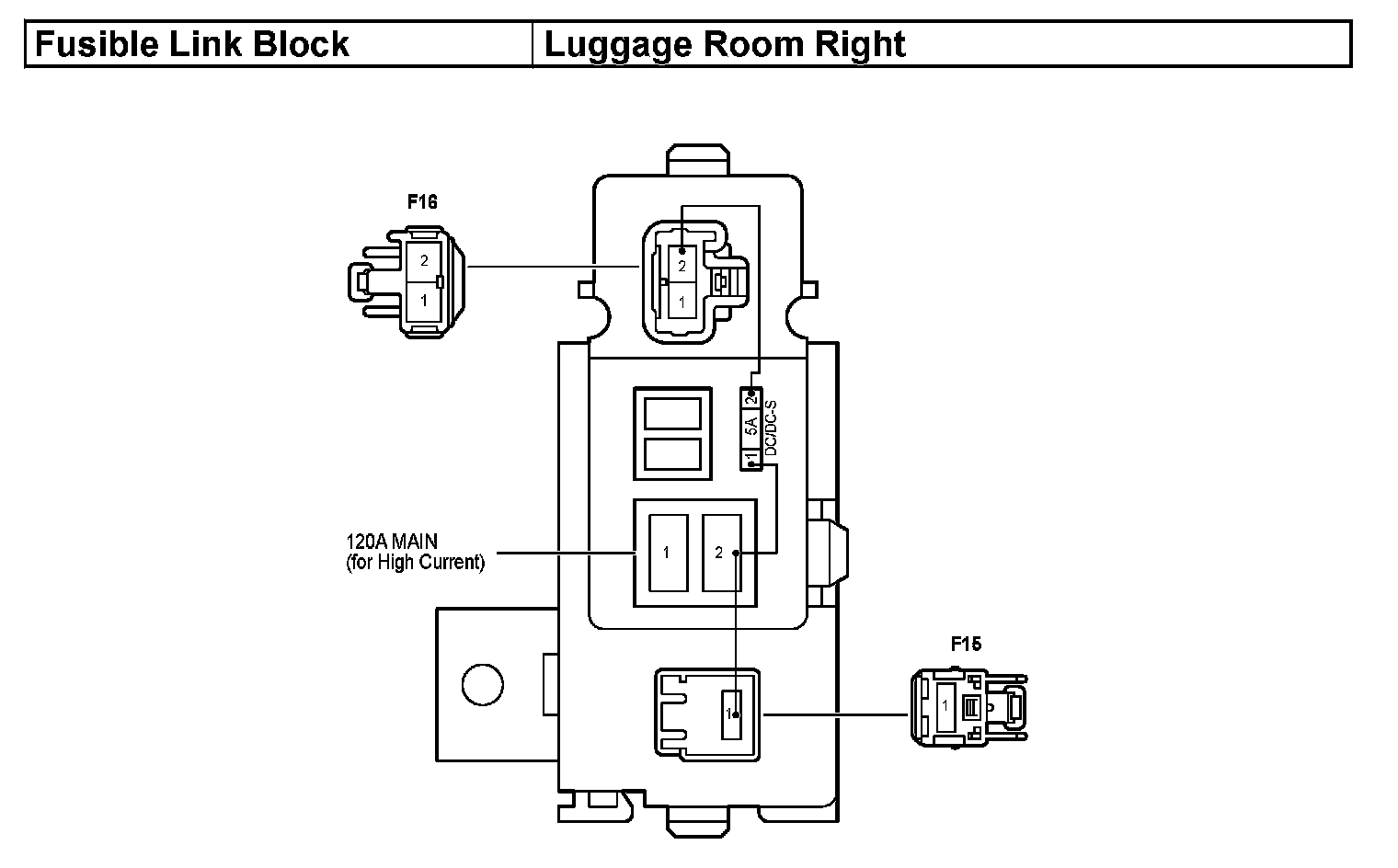

Fusible Link Block - Luggage Room Right:
