Key Reminder

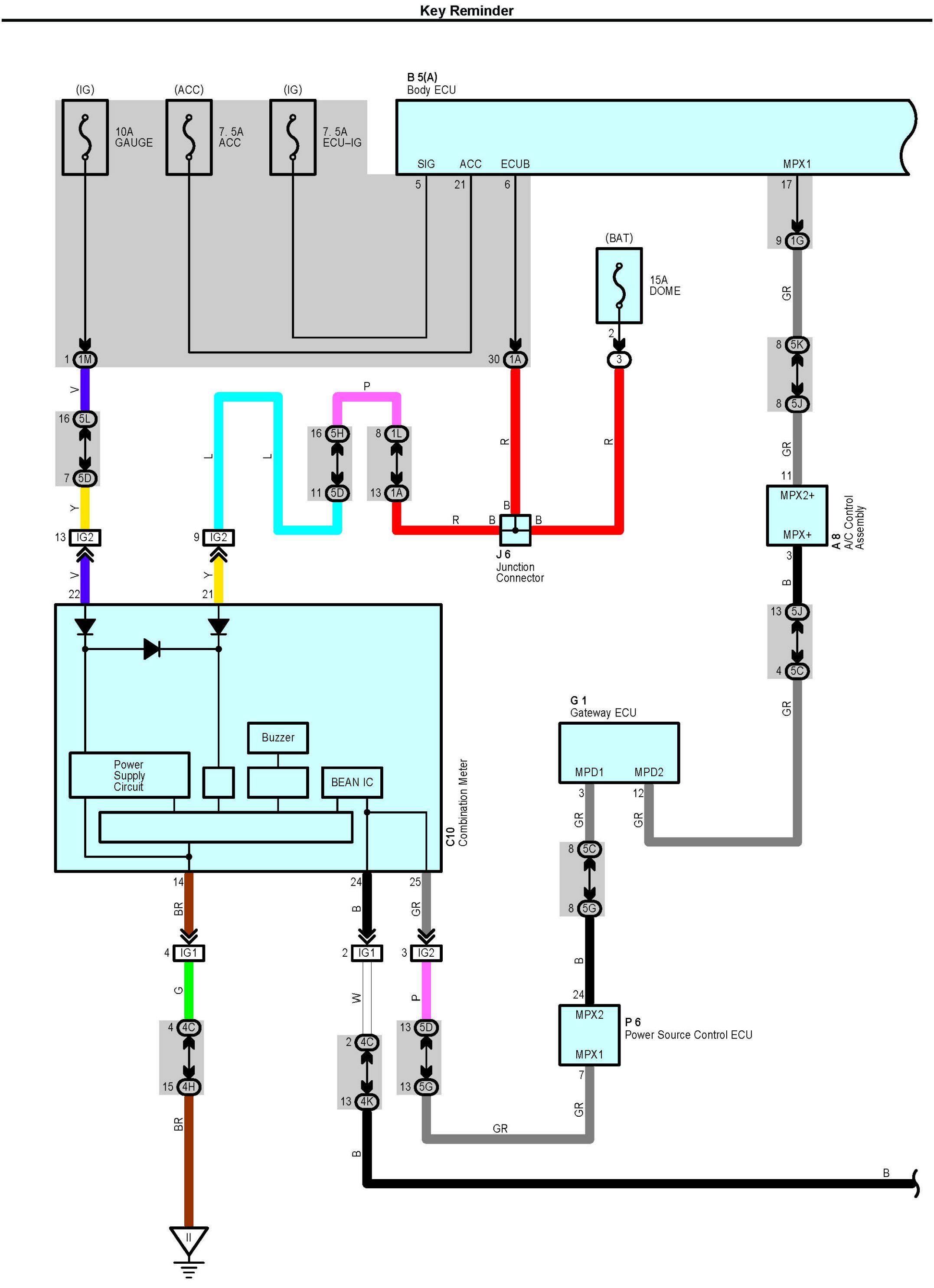

Key Reminder Part 1:

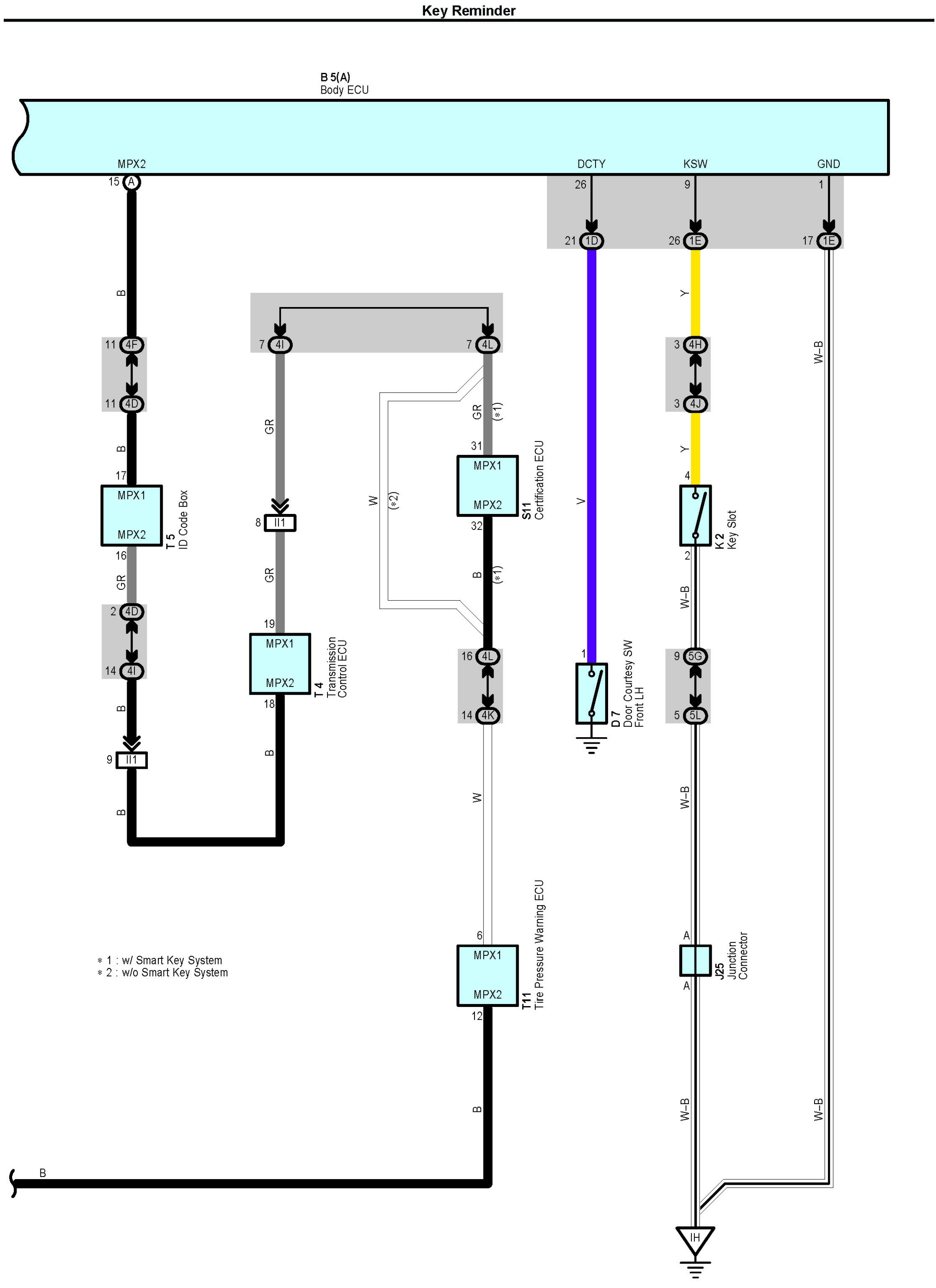

Key Reminder Part 2:

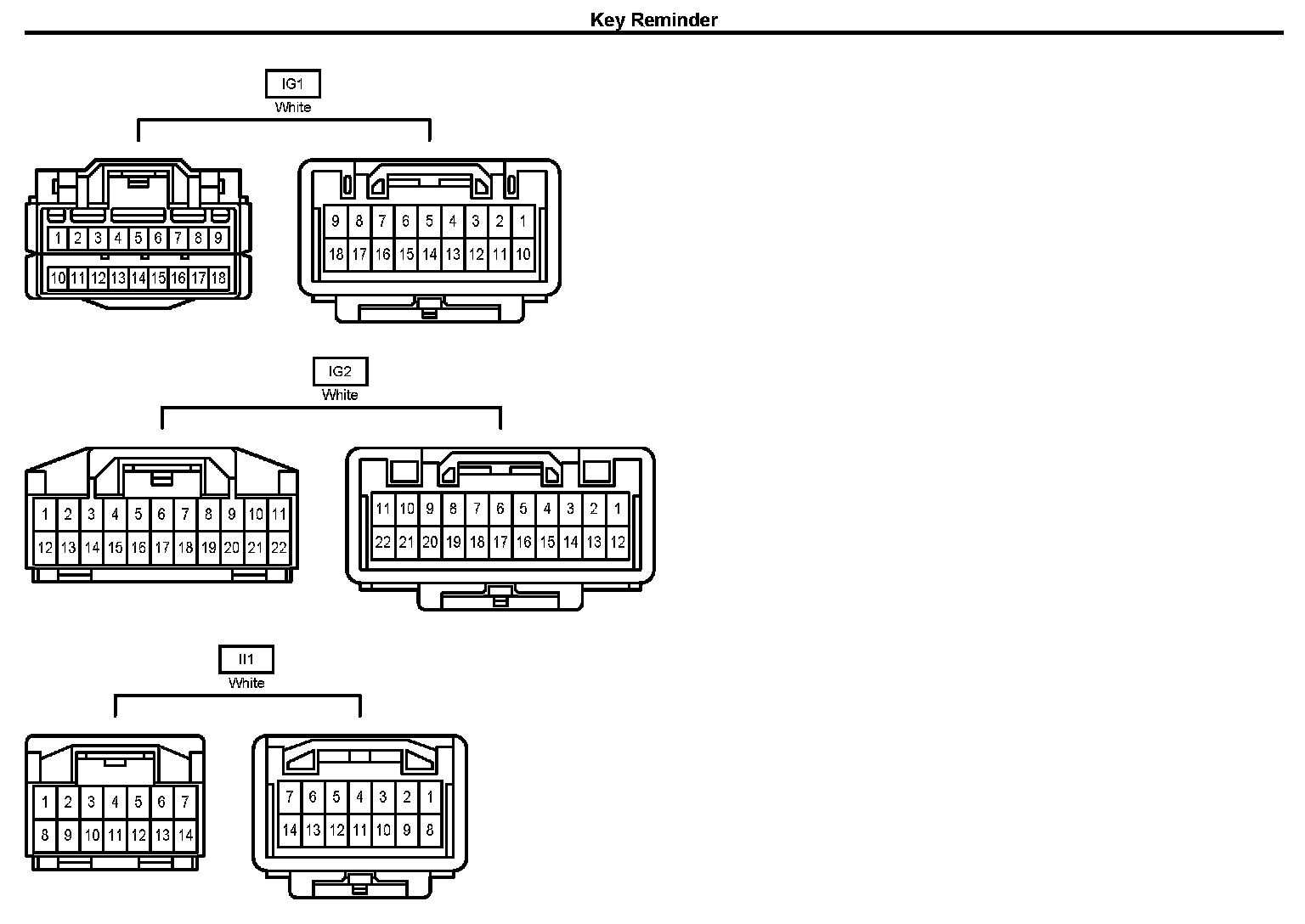

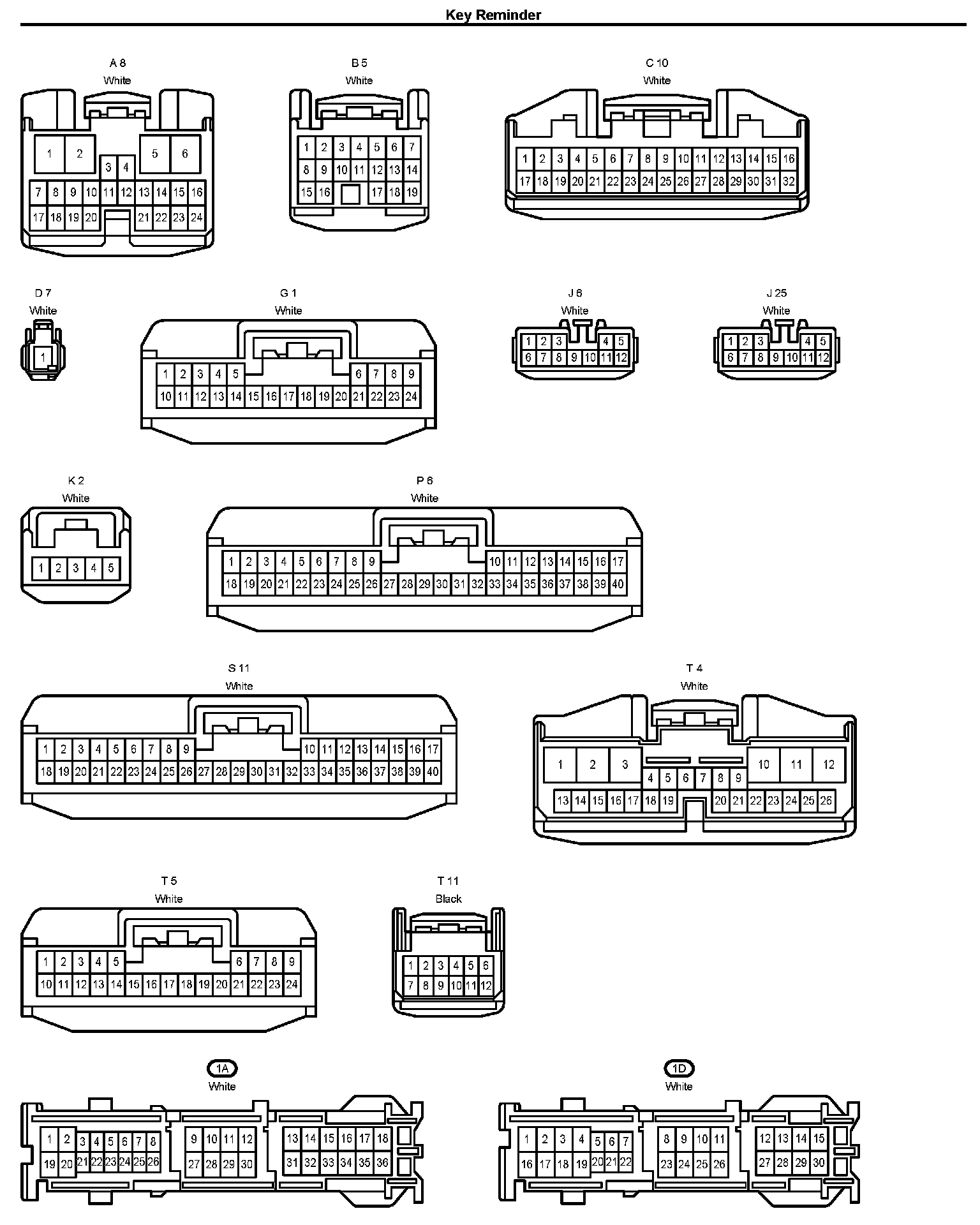

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
