Audio System [Built-In Amplifier], Multi-Display [Built-In Amplifier]

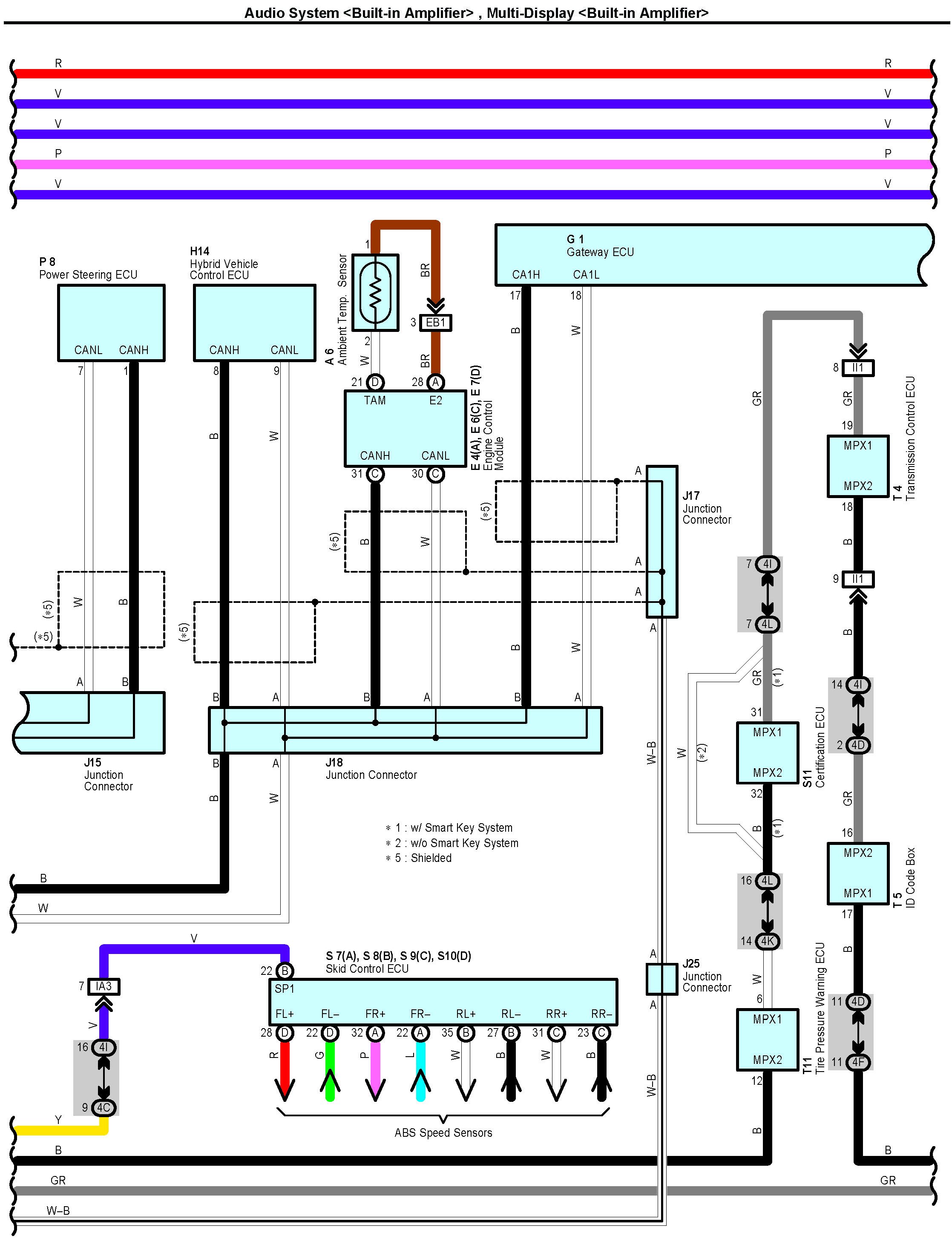

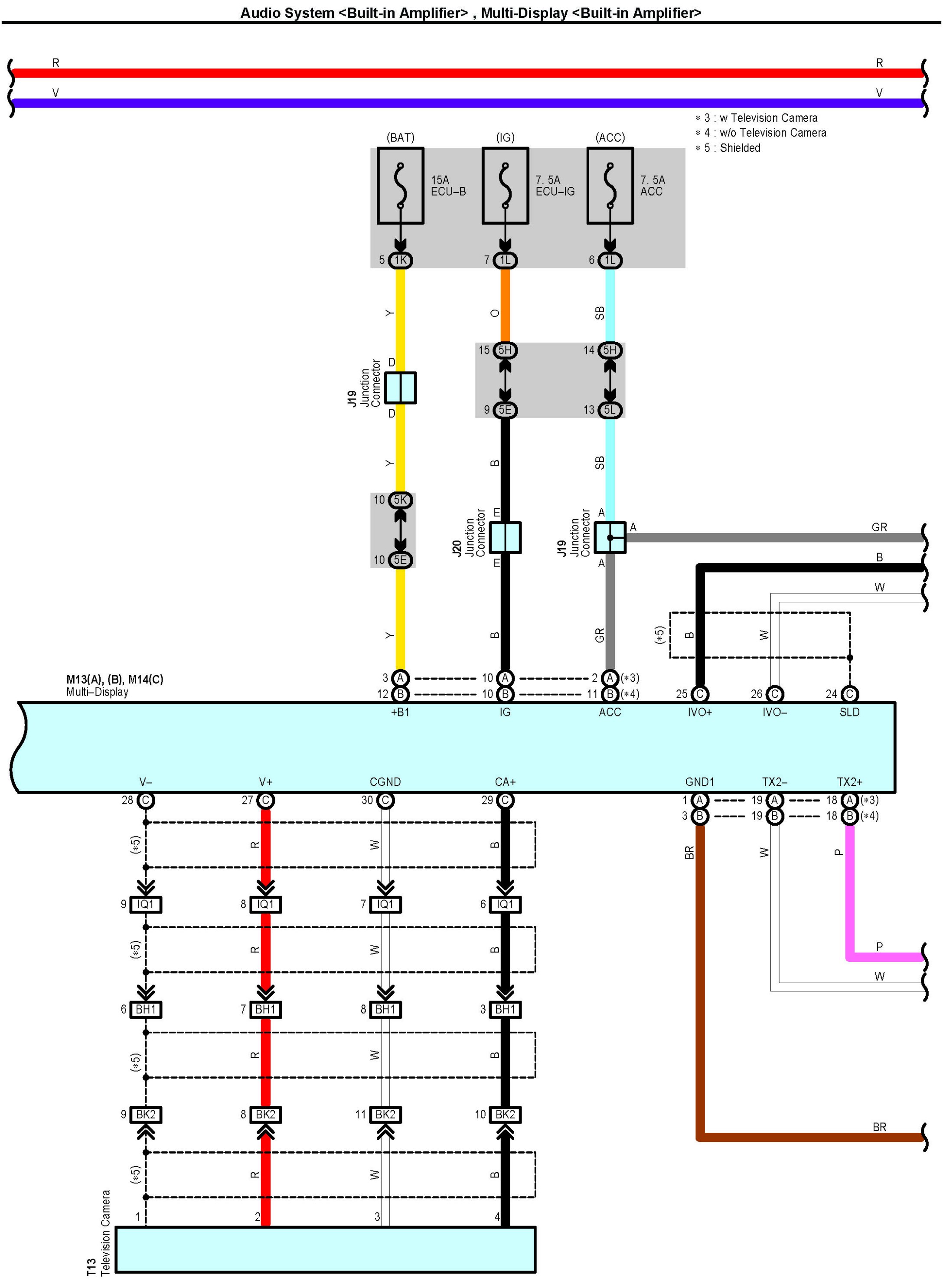

Audio System [Built-in Amplifier], Multi-Display [Built-in Amplifier] Part 1:

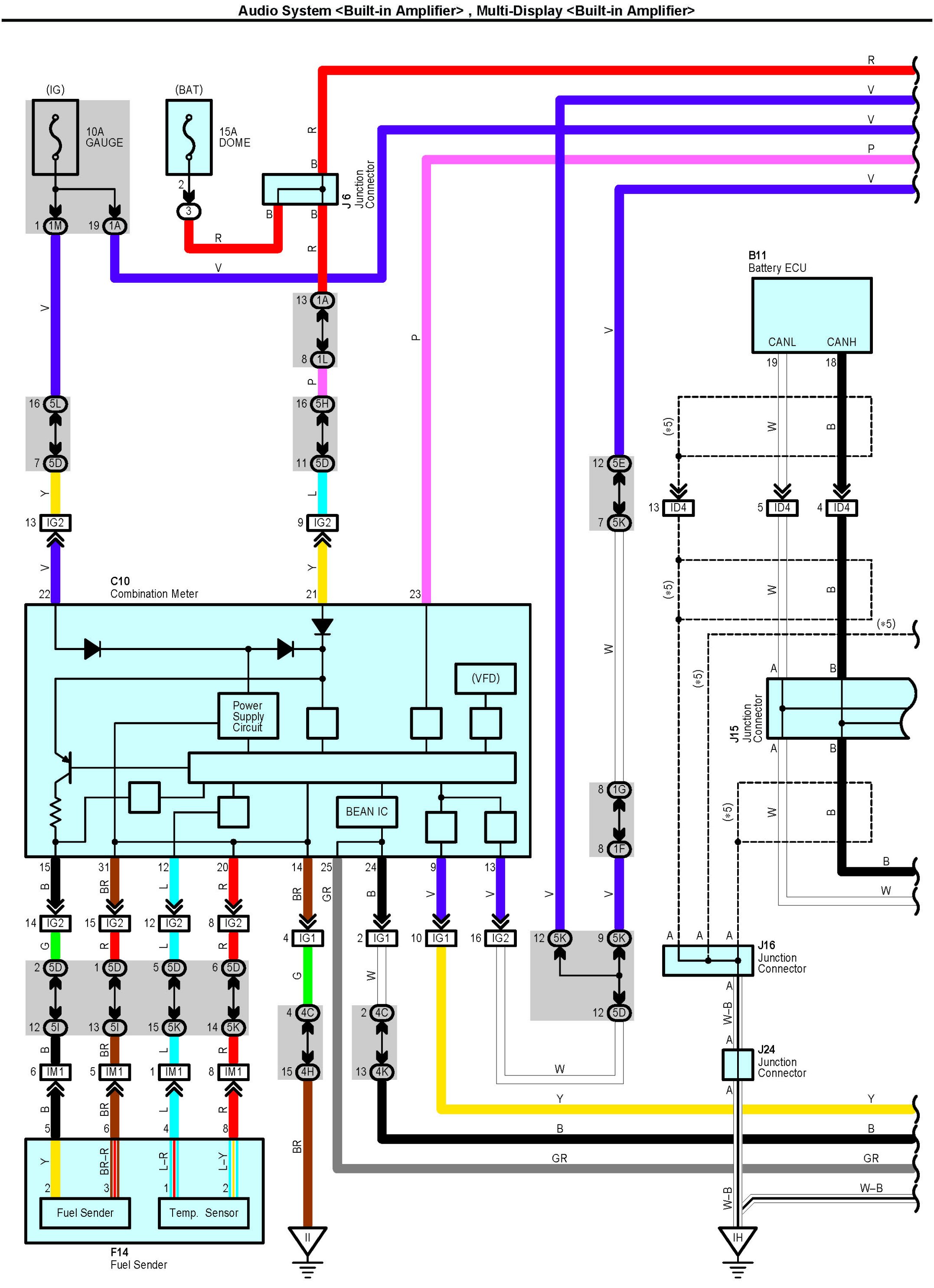

Audio System [Built-in Amplifier], Multi-Display [Built-in Amplifier] Part 2:

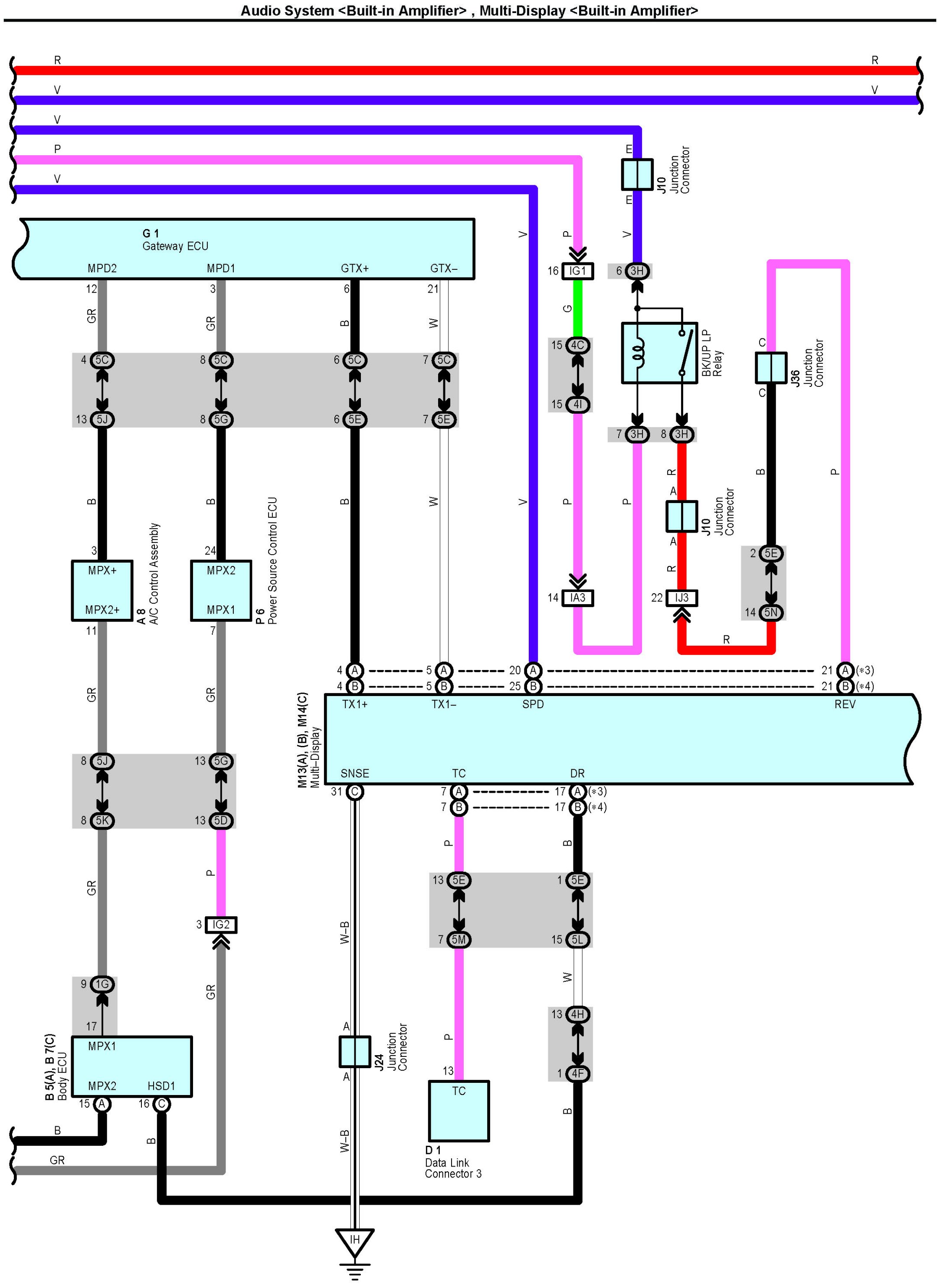

Audio System [Built-in Amplifier], Multi-Display [Built-in Amplifier] Part 3:

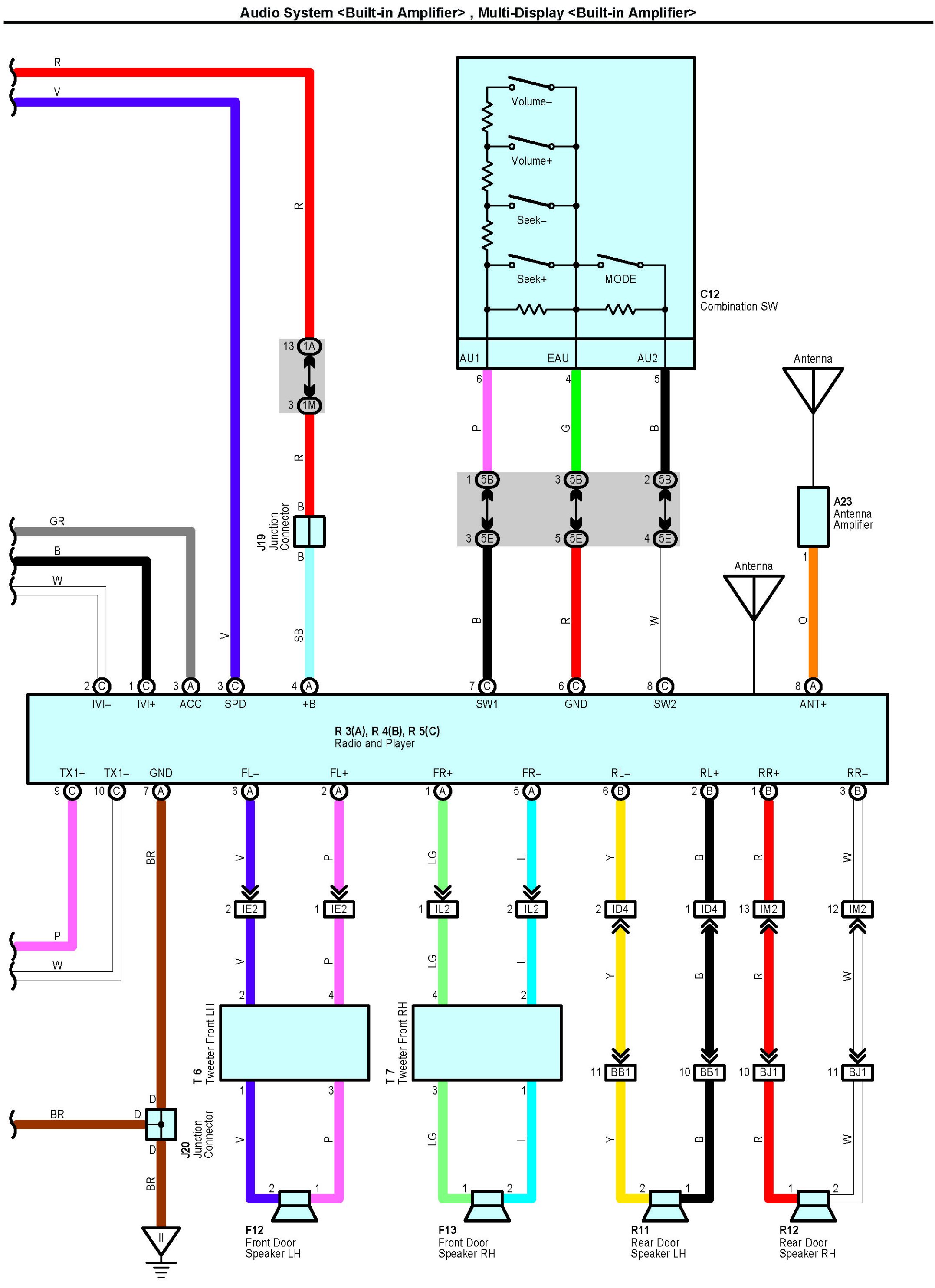

Audio System [Built-in Amplifier], Multi-Display [Built-in Amplifier] Part 4:

Audio System [Built-in Amplifier], Multi-Display [Built-in Amplifier] Part 5:

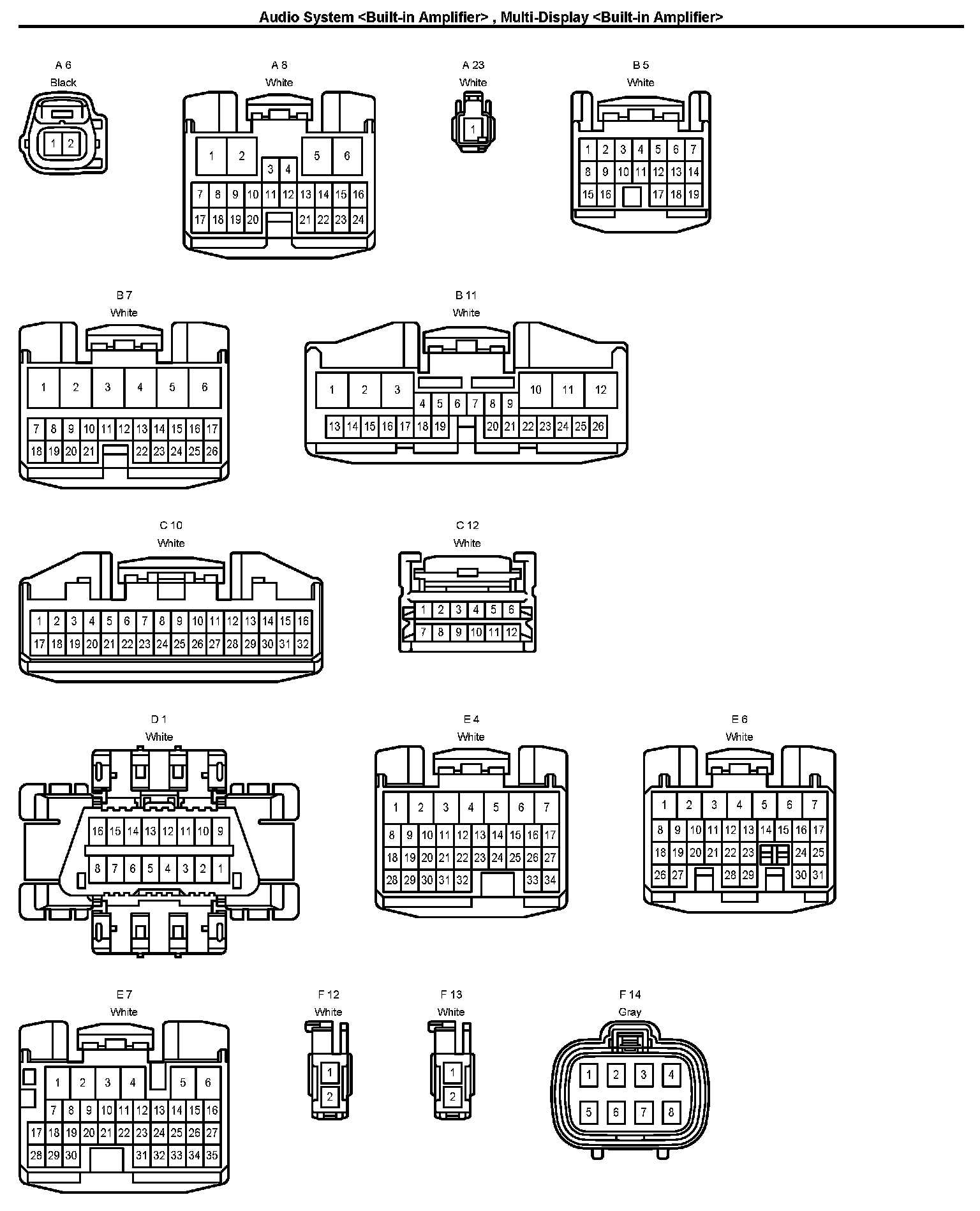

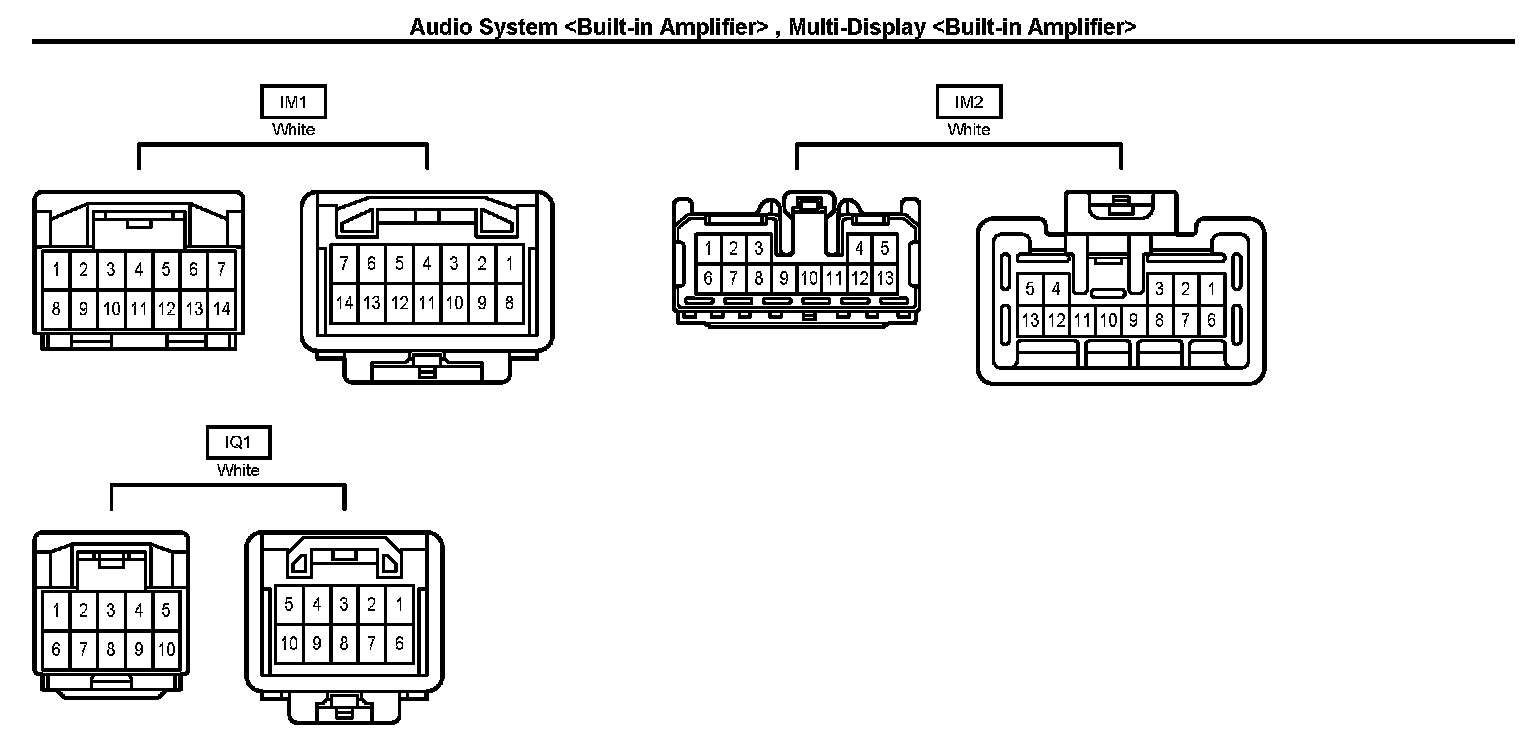

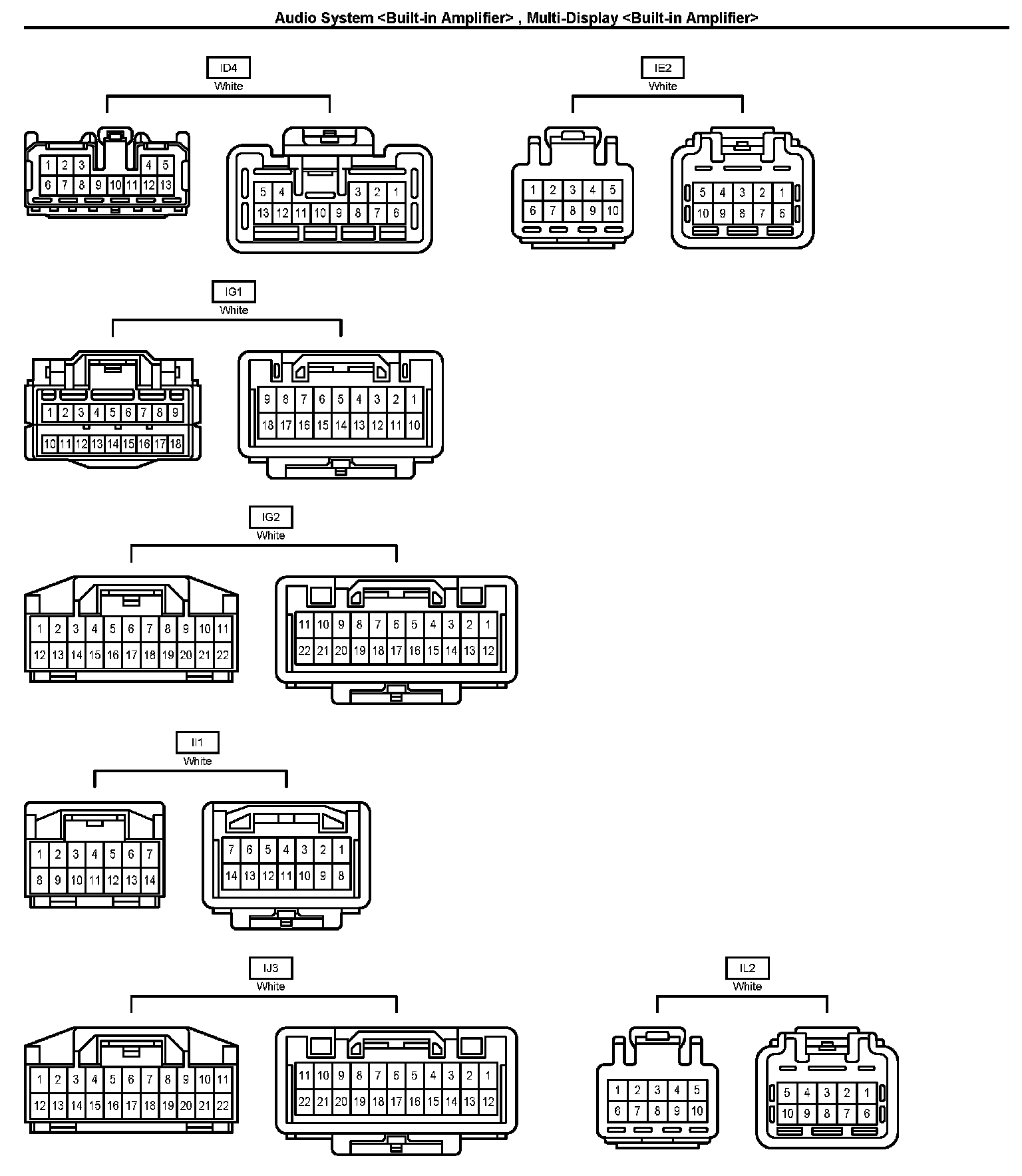

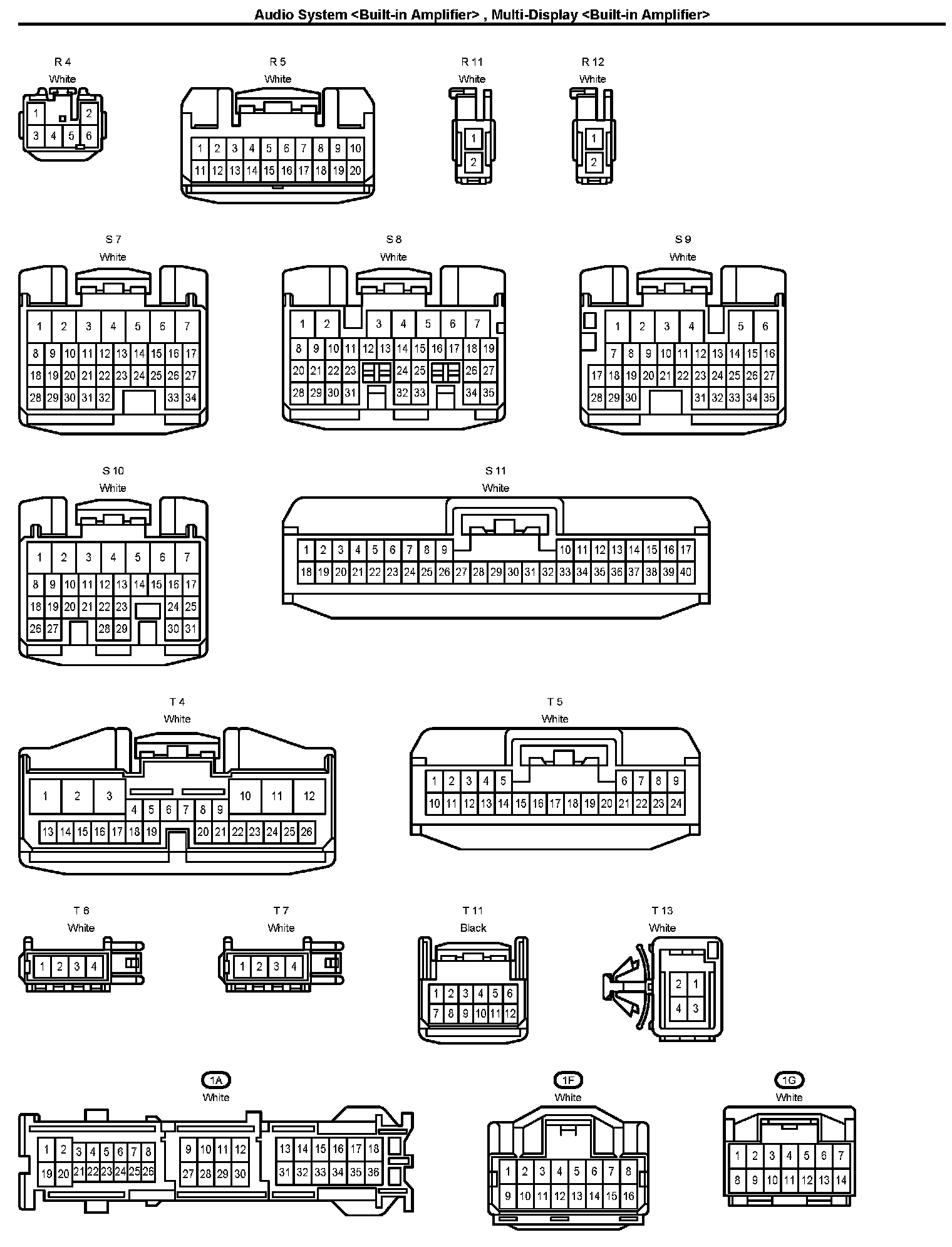

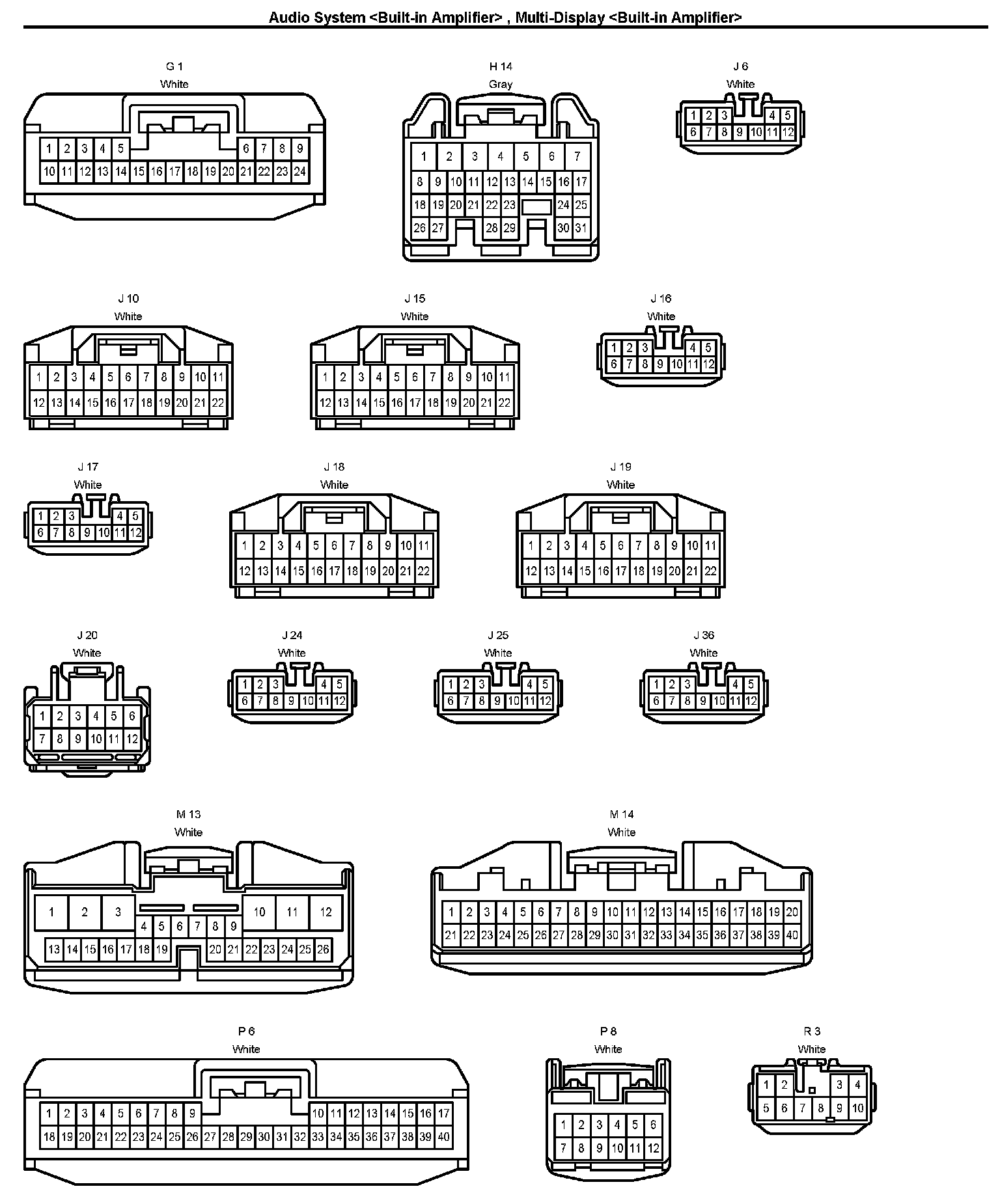

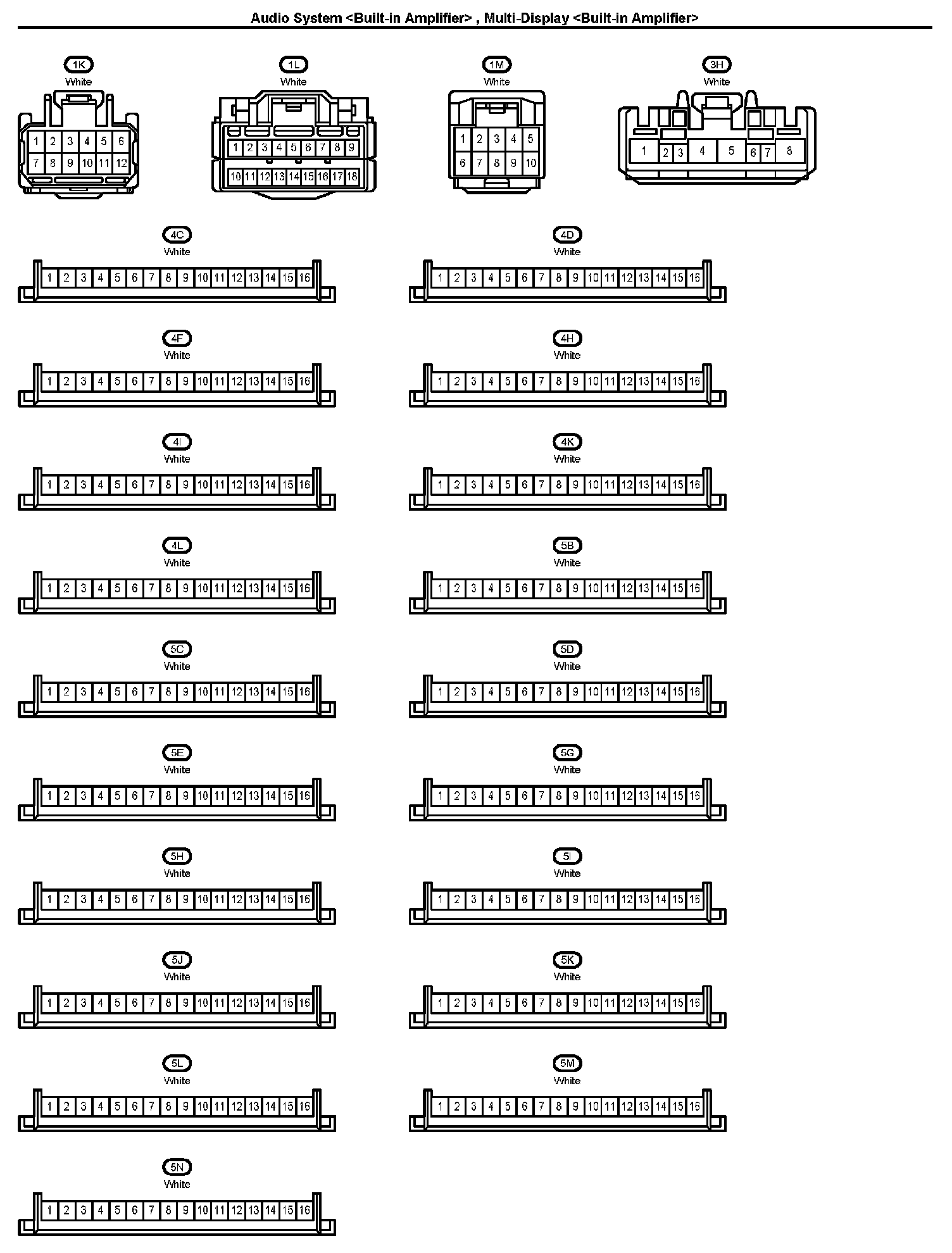

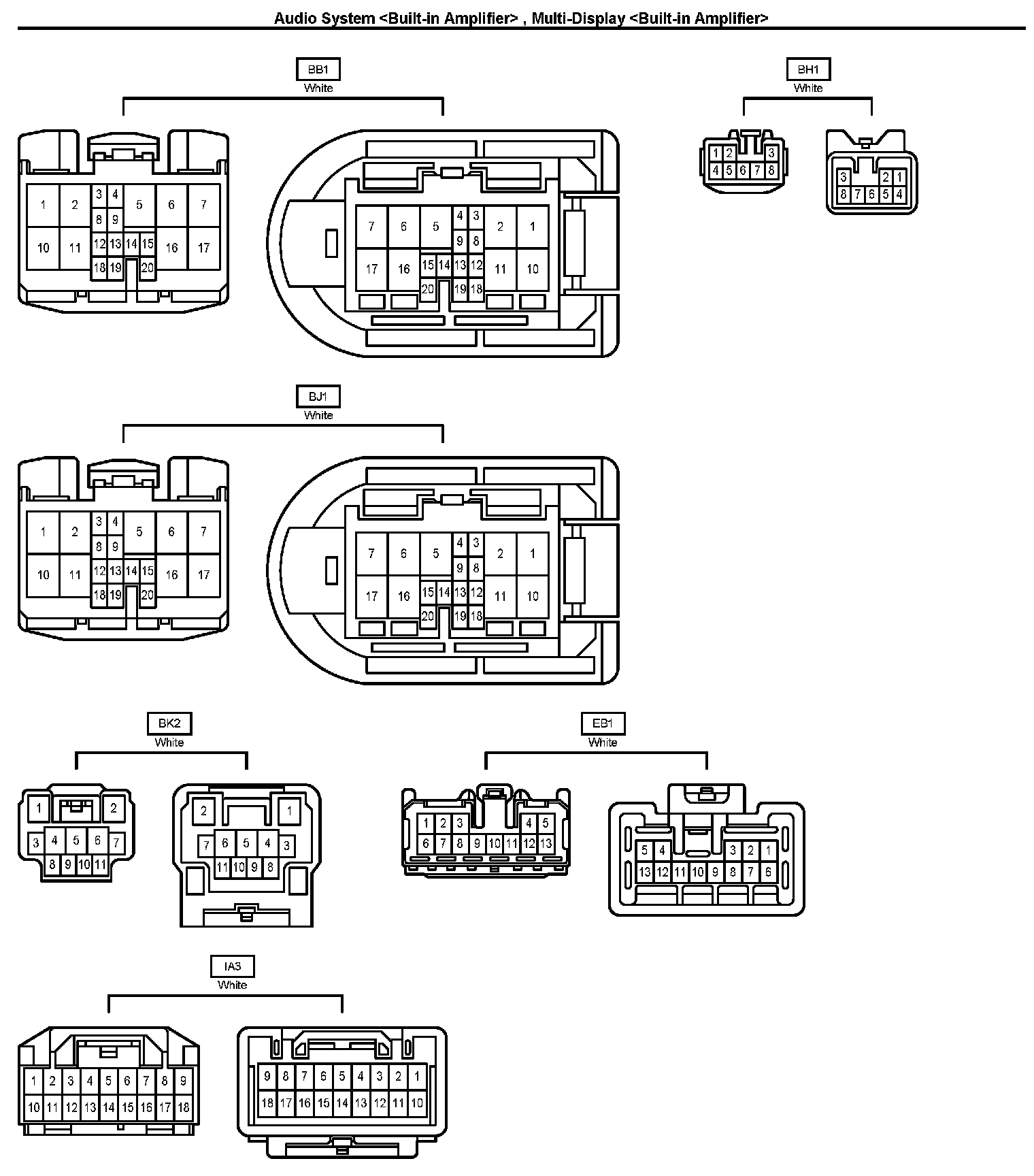

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Connectors Part 7:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
