Audio System [Separate Amplifier], Multi-Display [Separate Amplifier]

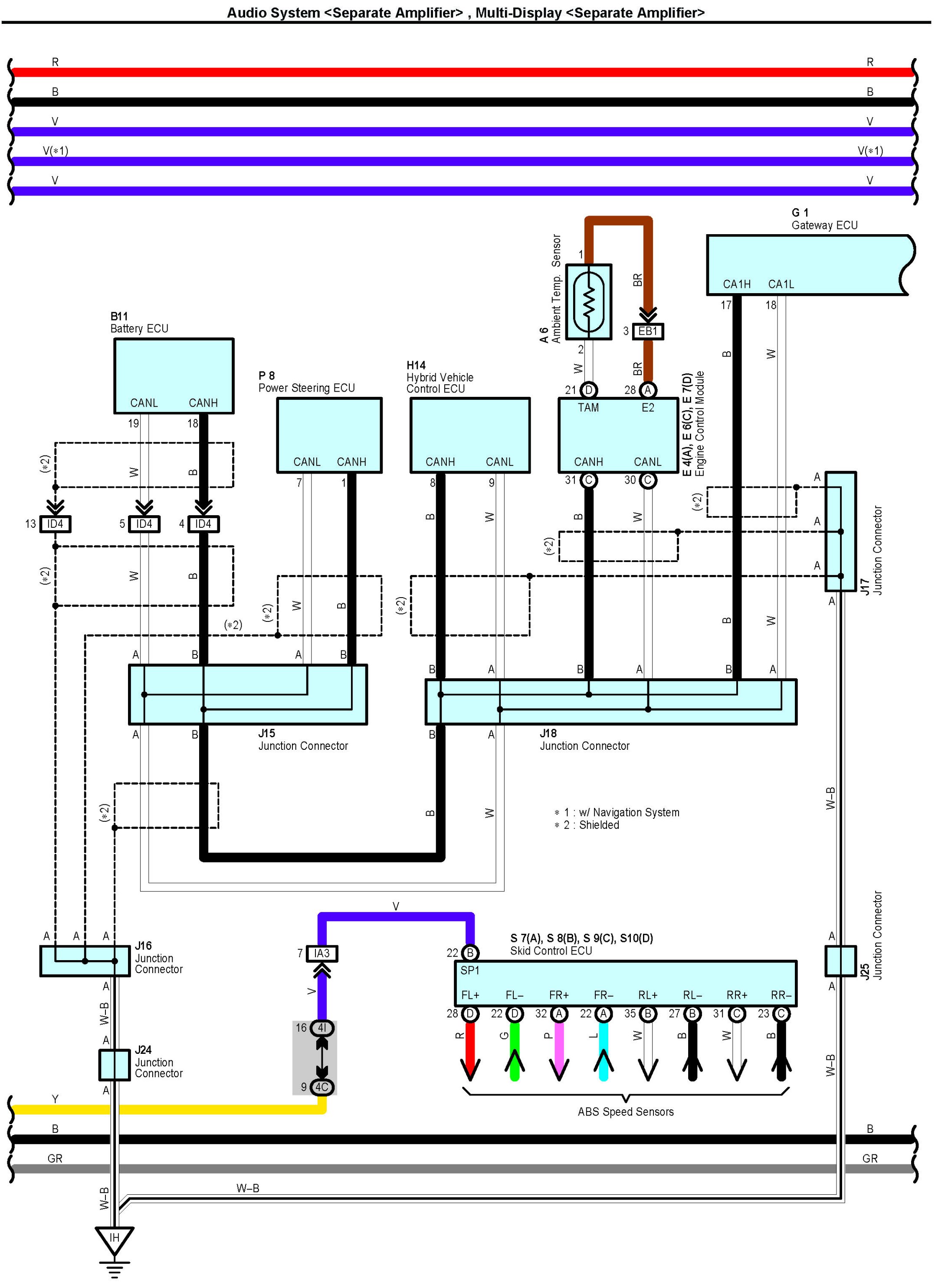

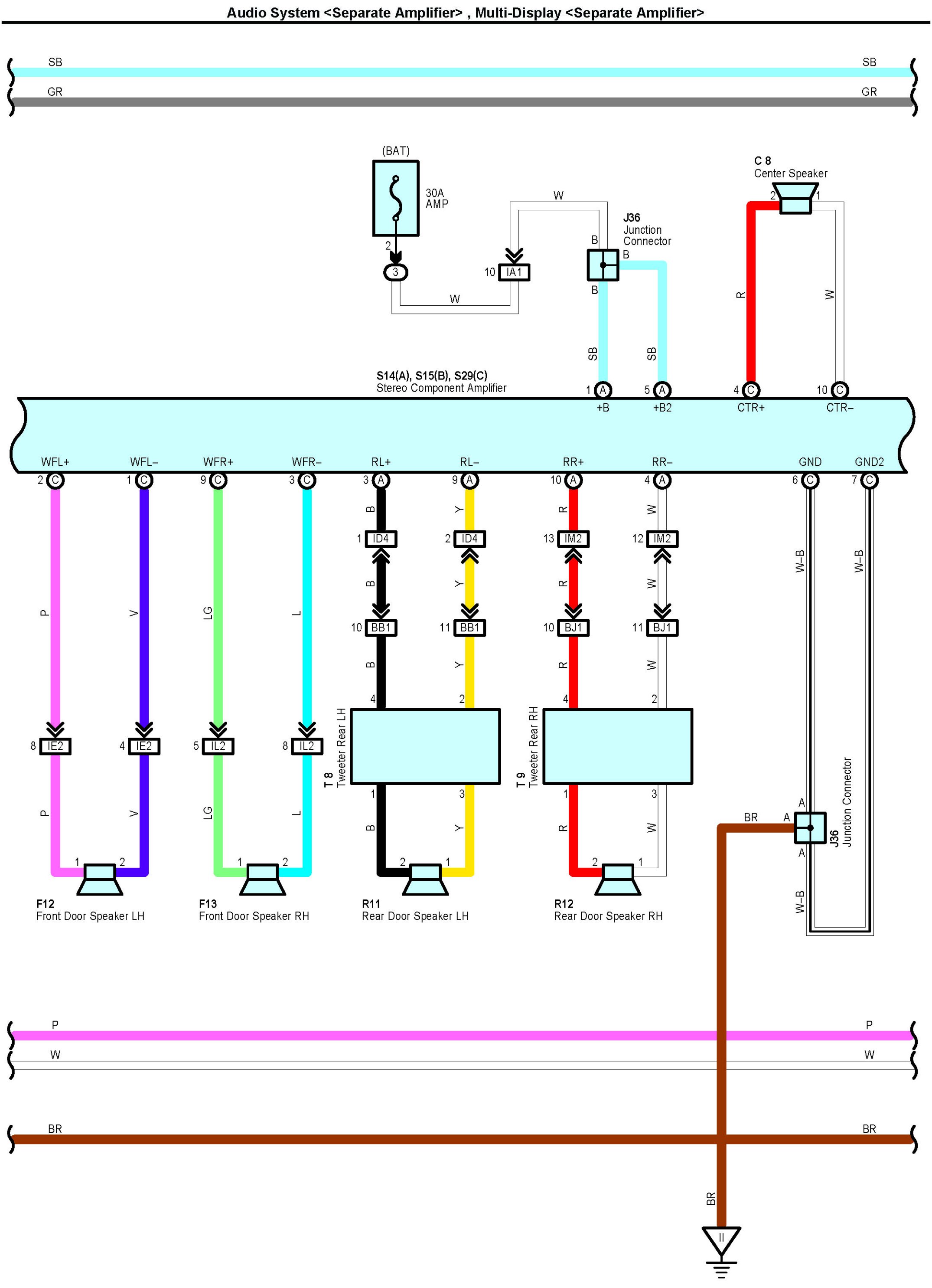

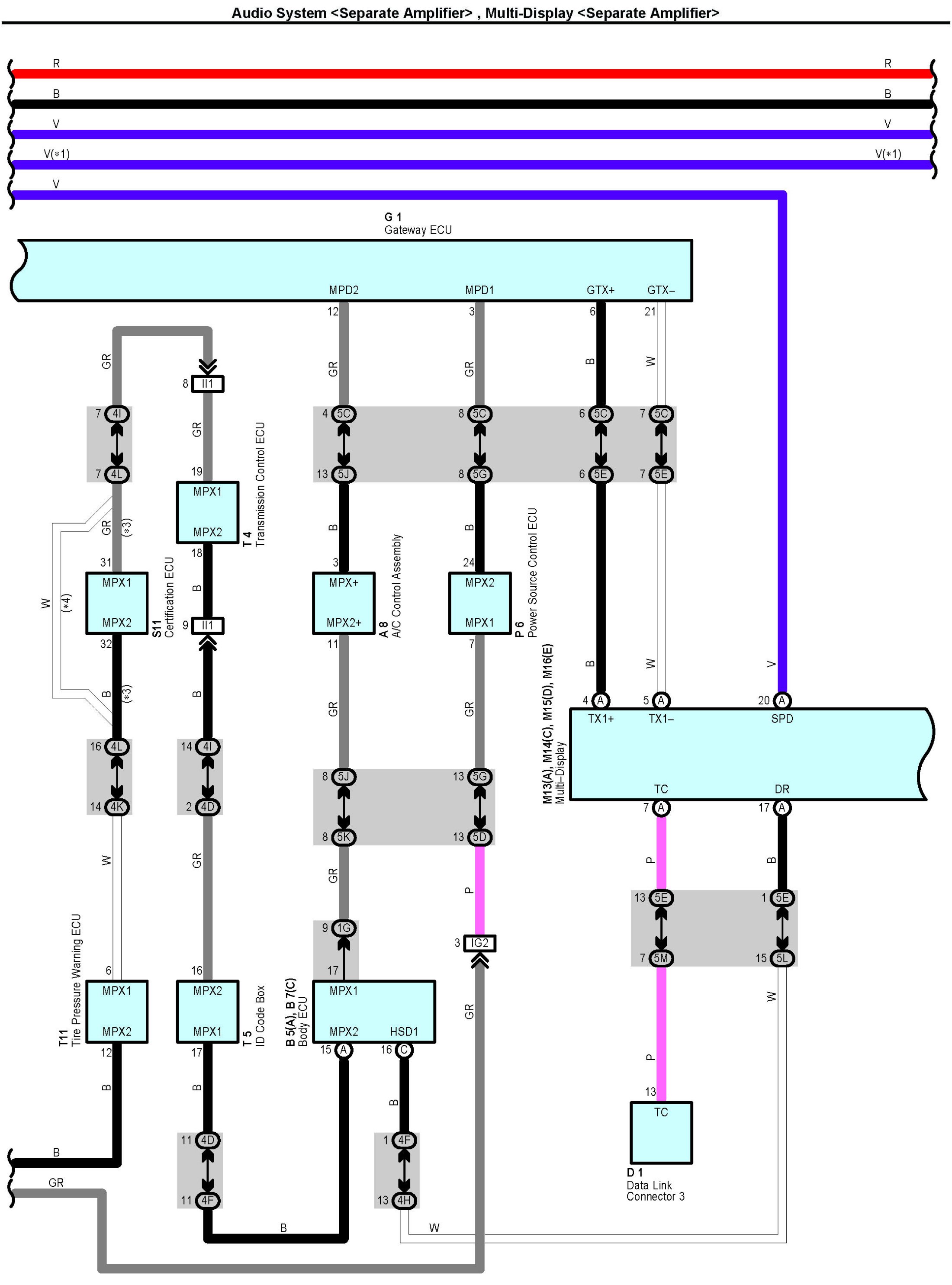

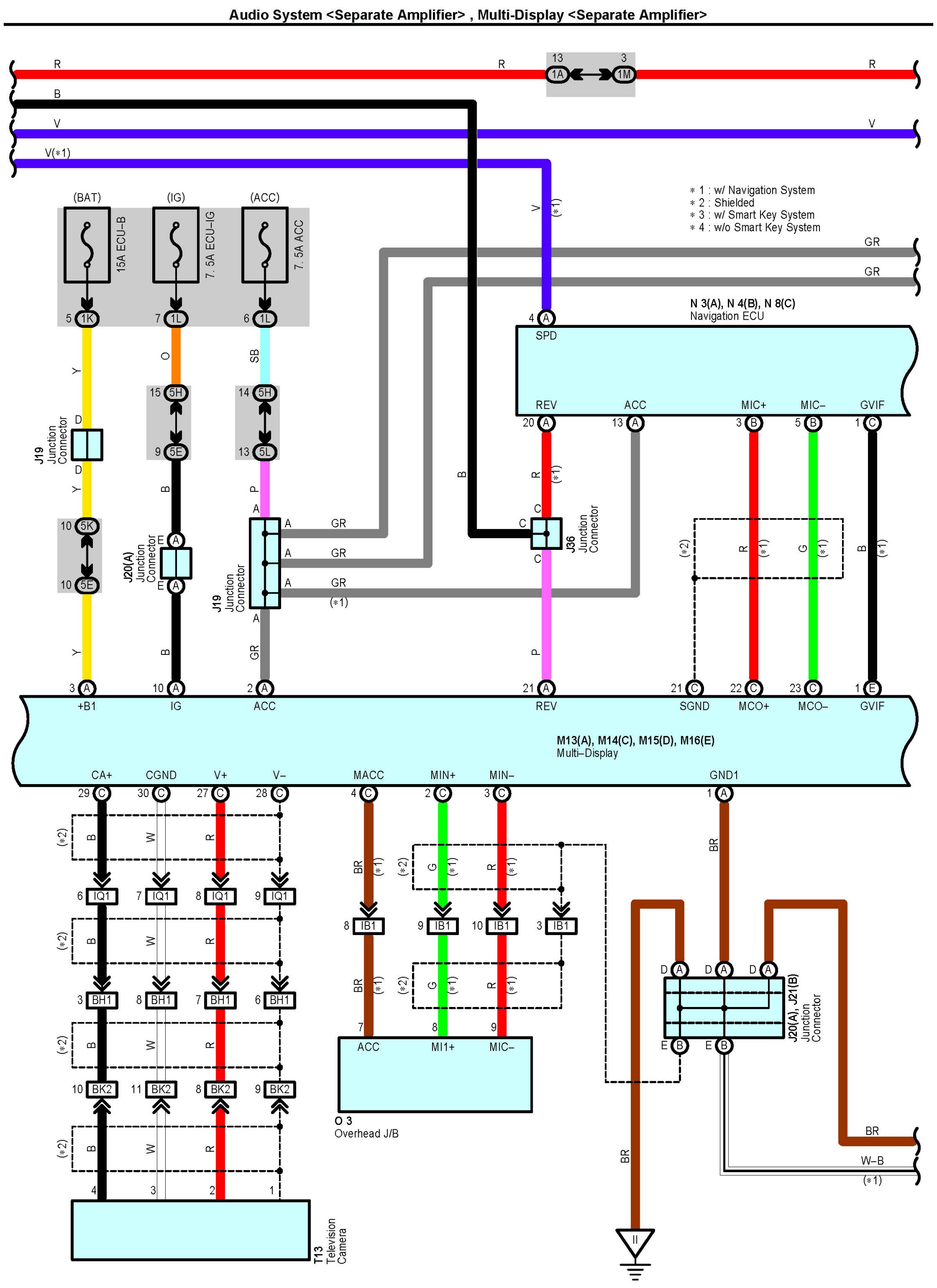

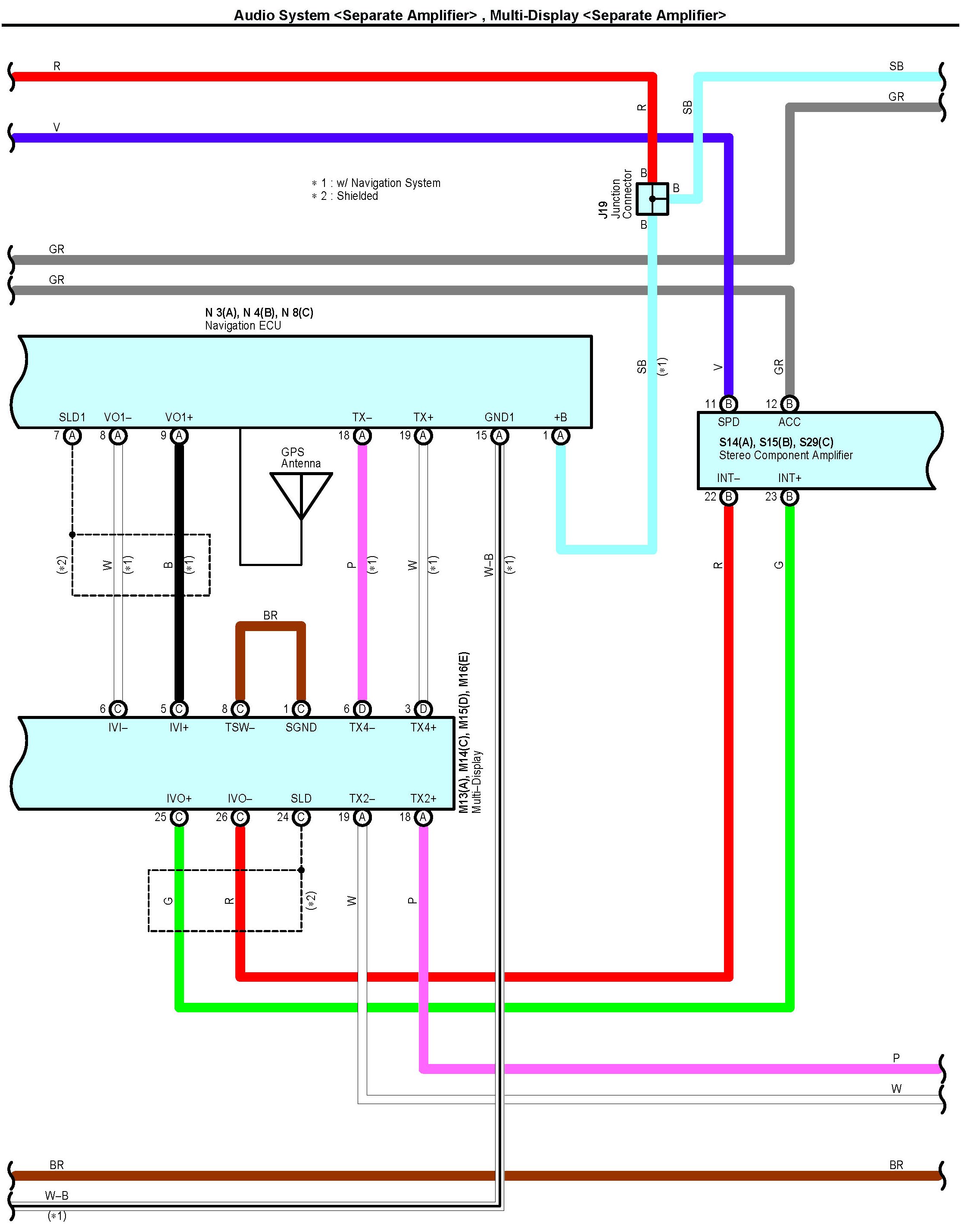

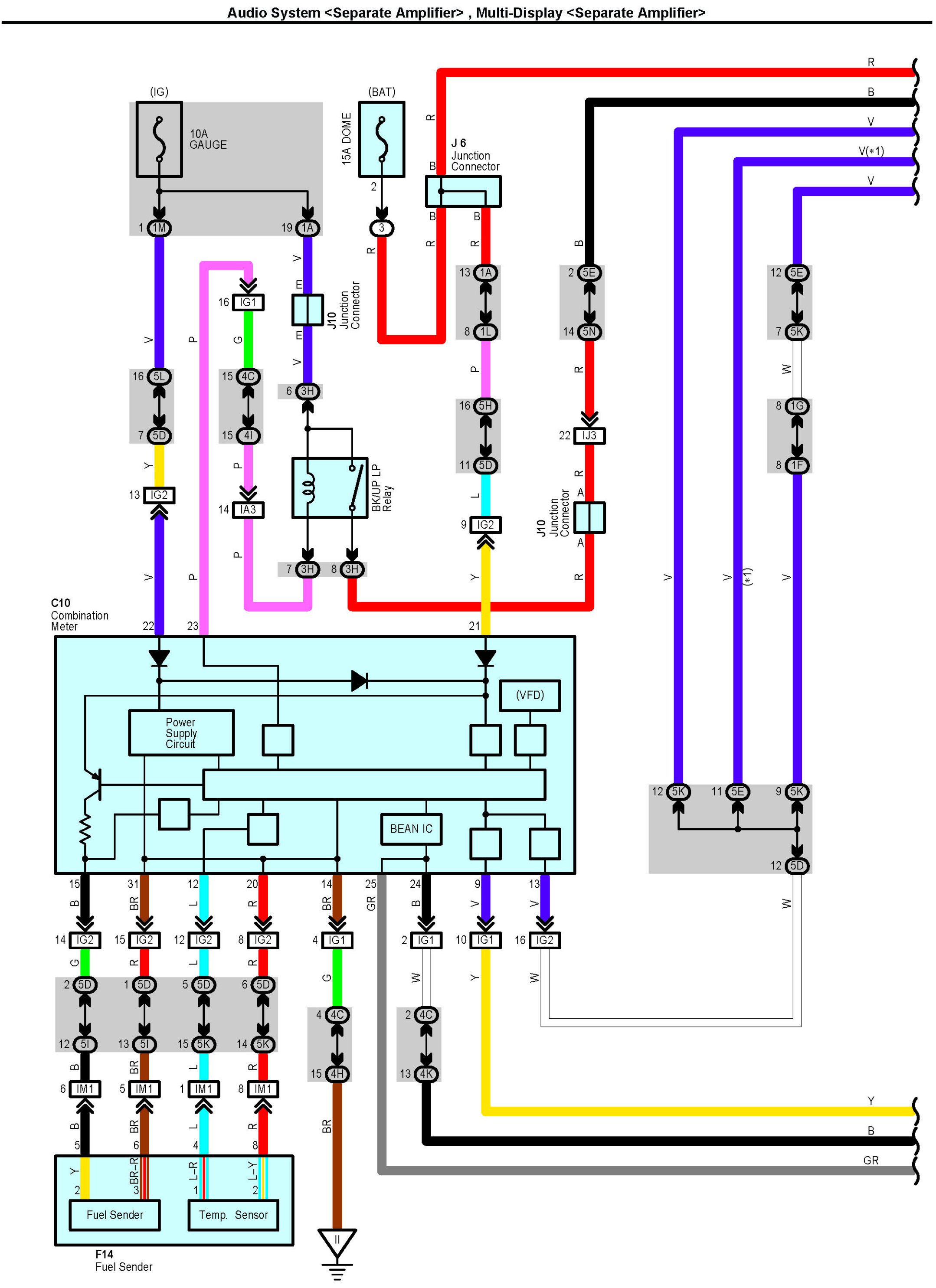

Audio System [Separate Amplifier], Multi-Display [Separate Amplifier] Part 1:

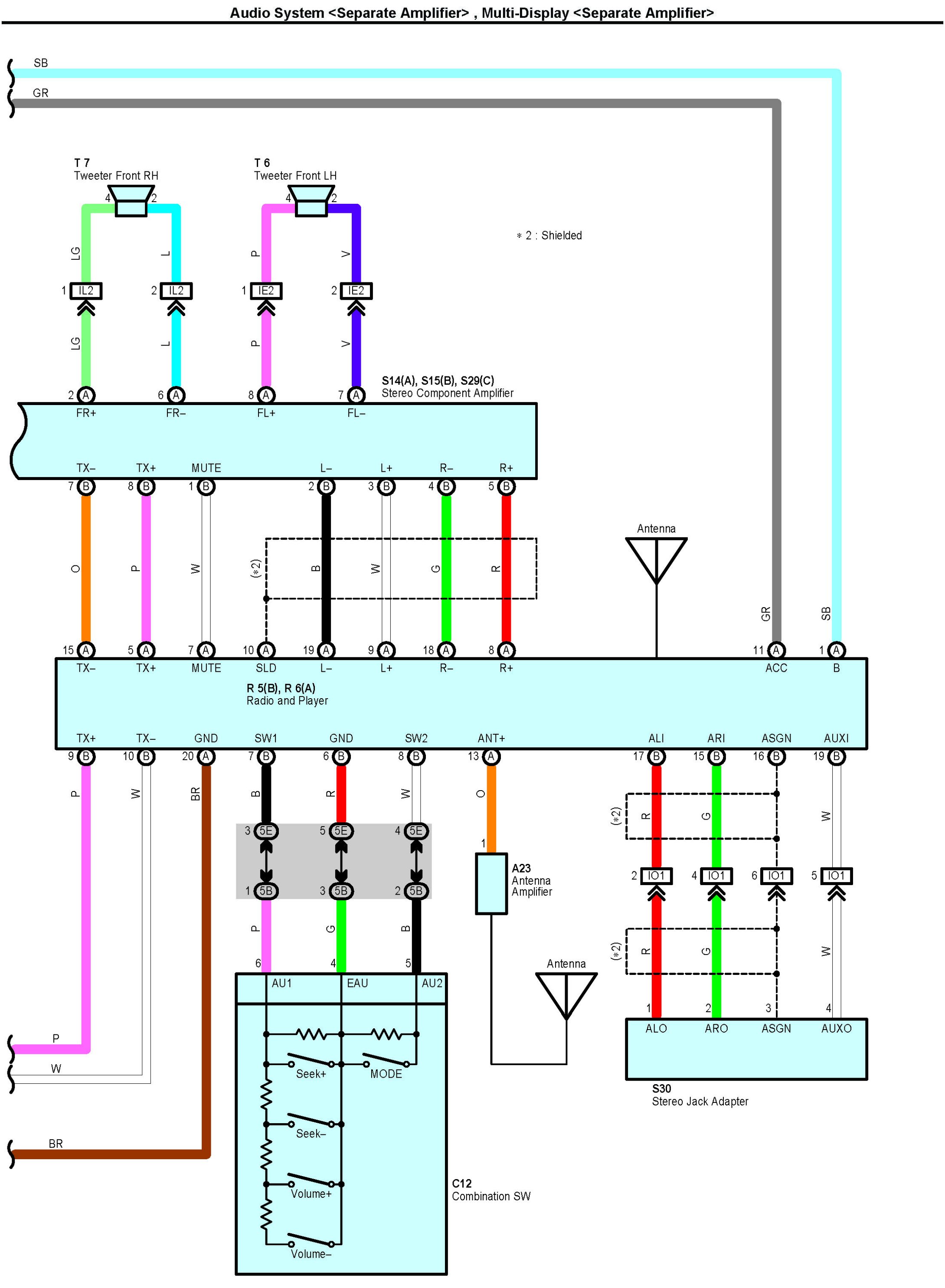

Audio System [Separate Amplifier], Multi-Display [Separate Amplifier] Part 2:

Audio System [Separate Amplifier], Multi-Display [Separate Amplifier] Part 3:

Audio System [Separate Amplifier], Multi-Display [Separate Amplifier] Part 4:

Audio System [Separate Amplifier], Multi-Display [Separate Amplifier] Part 5:

Audio System [Separate Amplifier], Multi-Display [Separate Amplifier] Part 6:

Audio System [Separate Amplifier], Multi-Display [Separate Amplifier] Part 7:

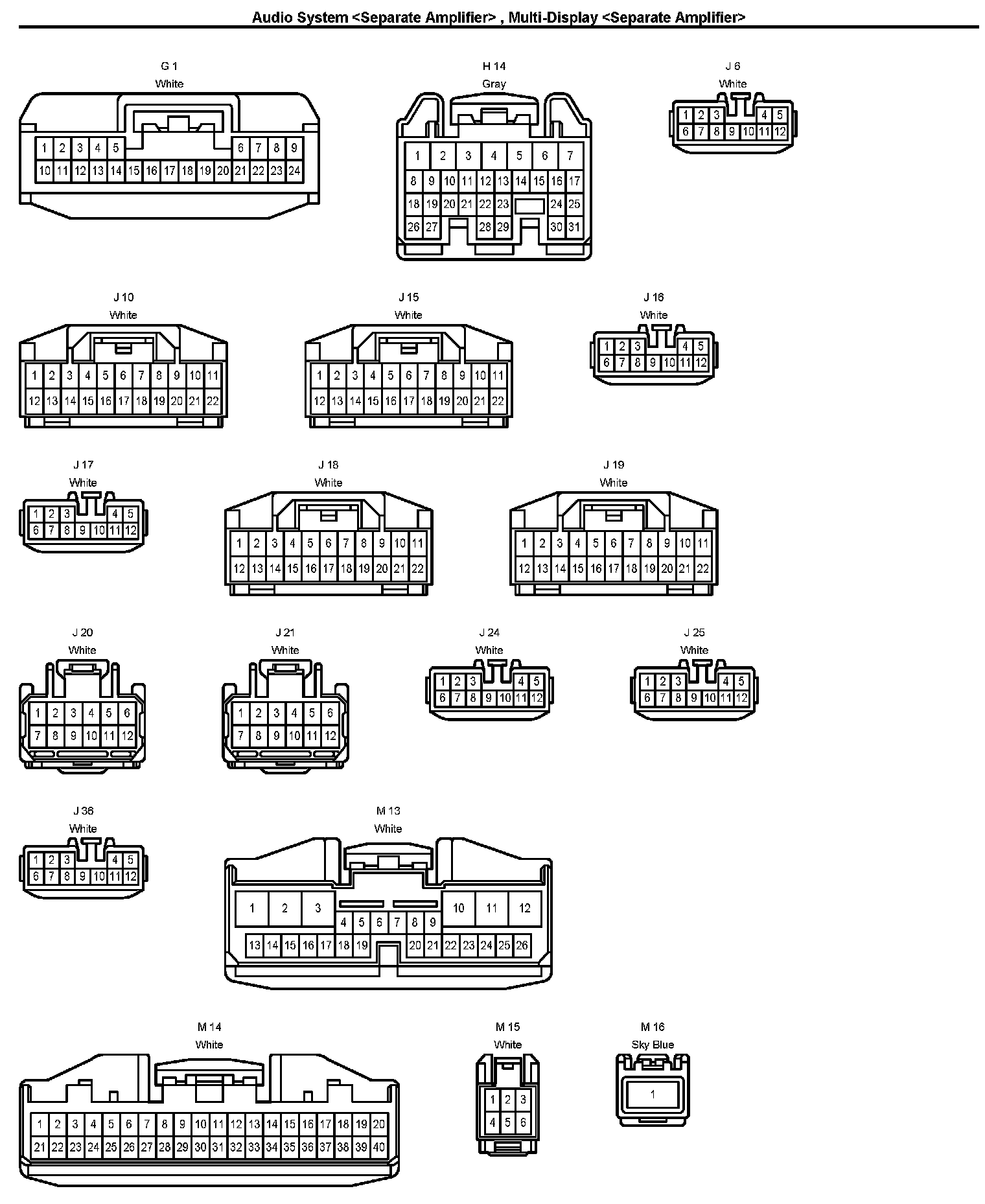

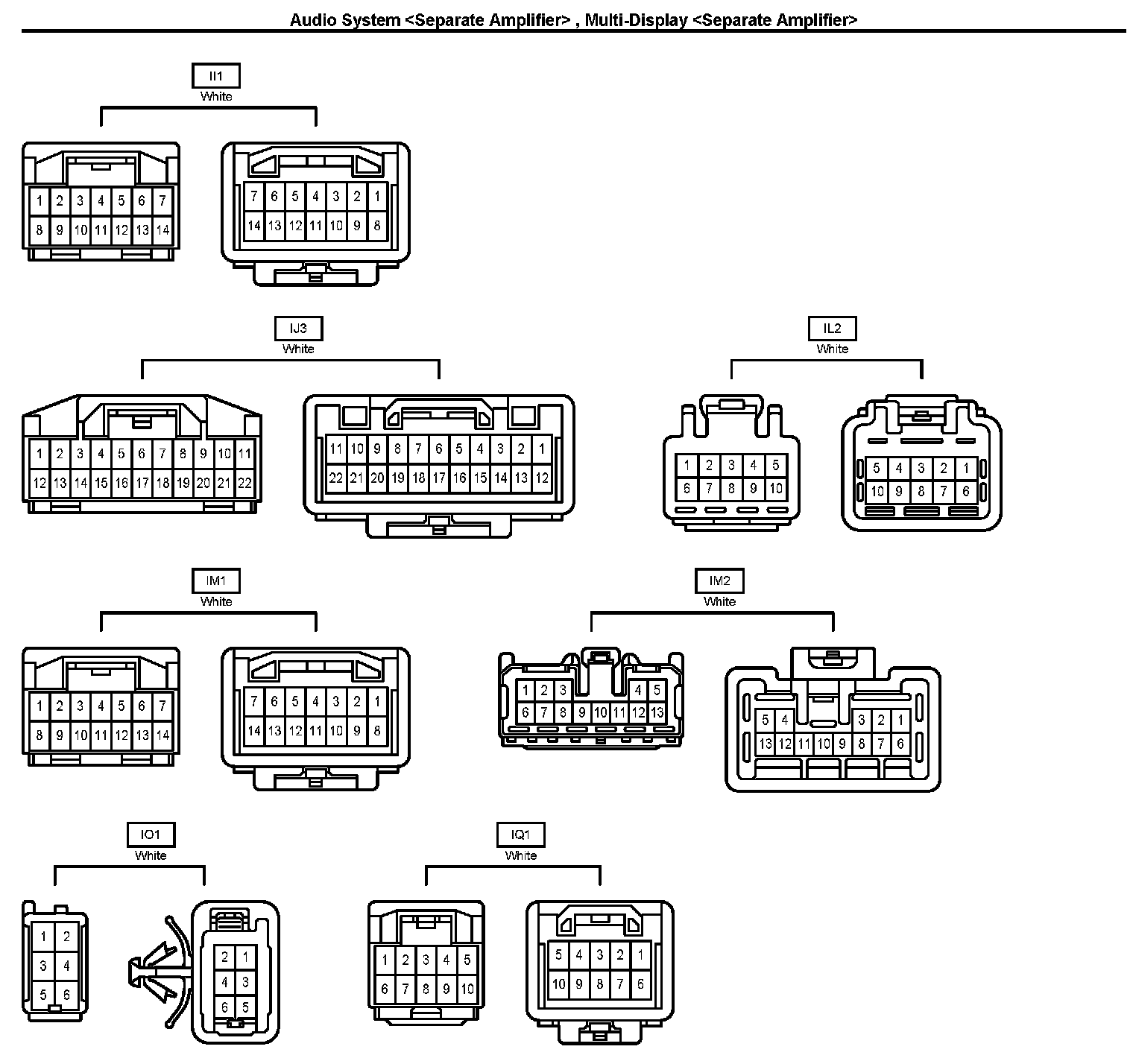

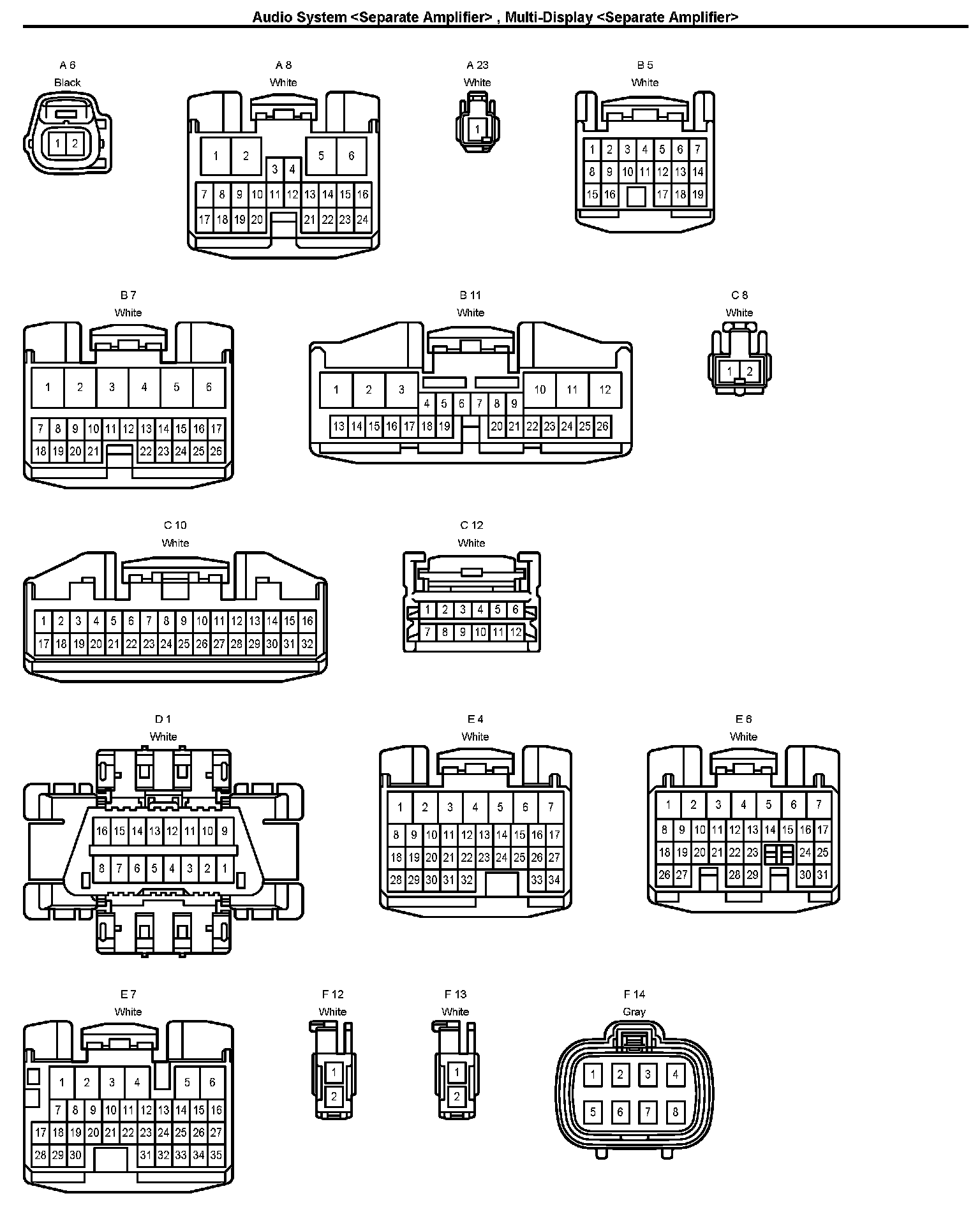

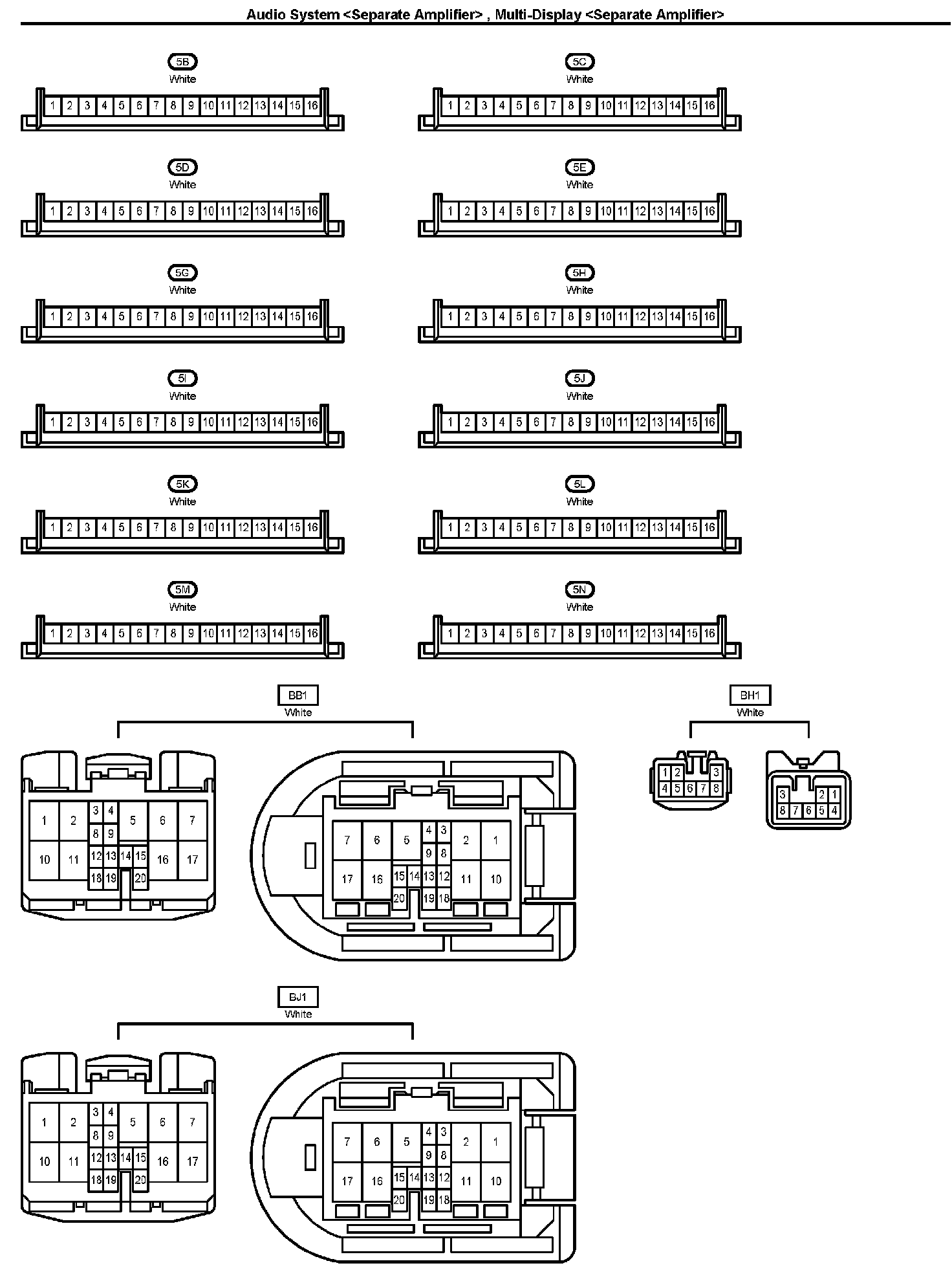

Connectors Part 1:

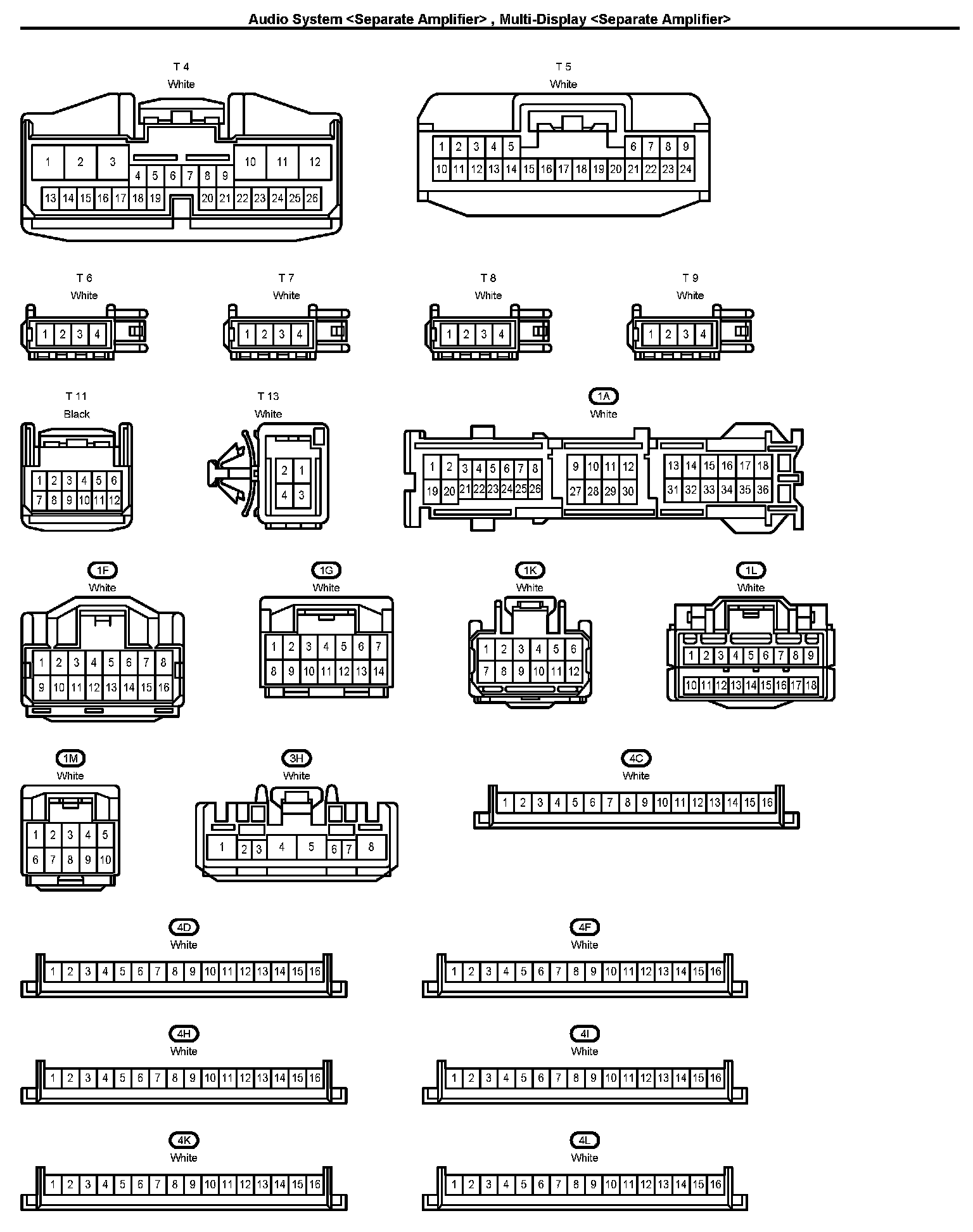

Connectors Part 2:

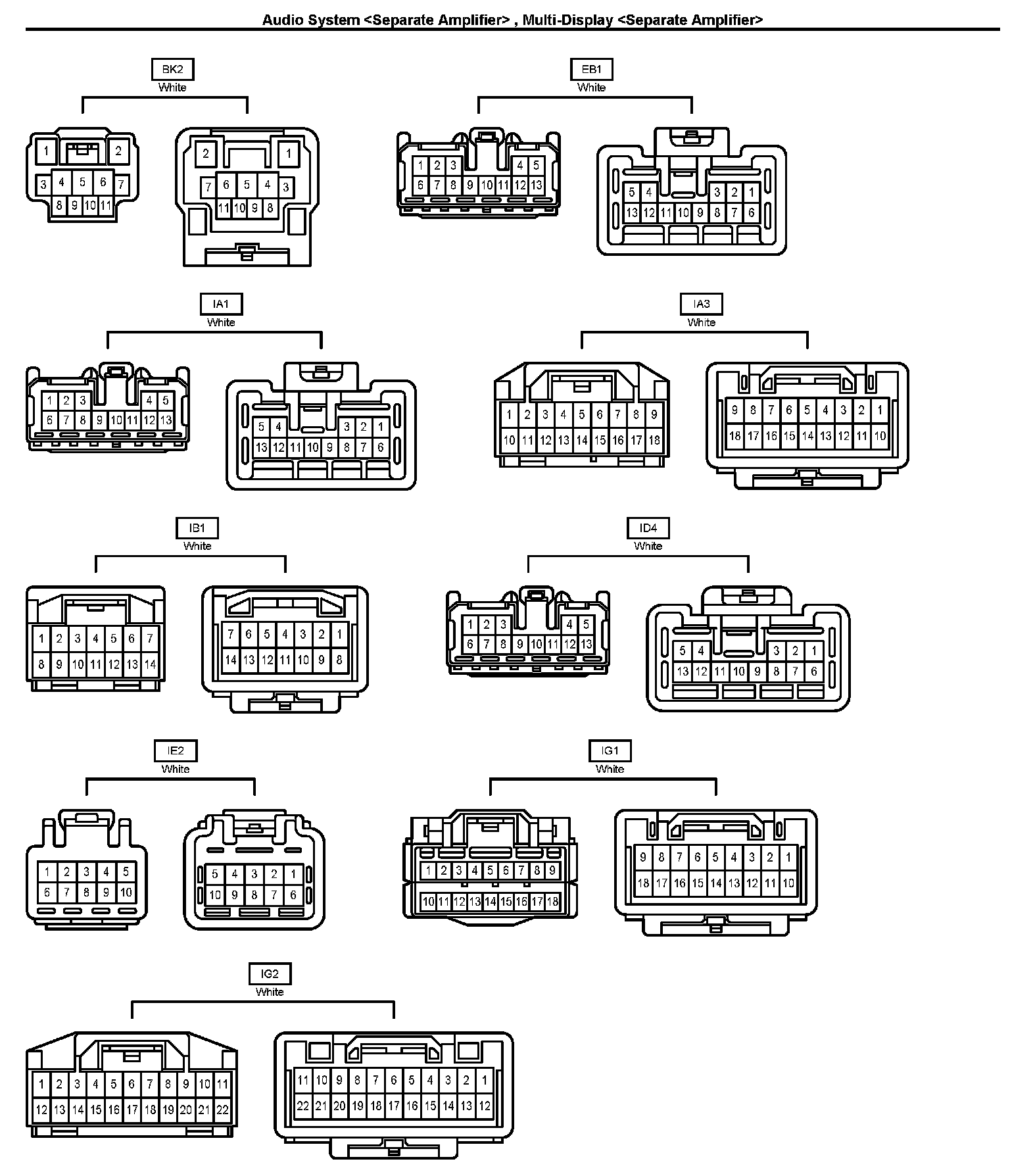

Connectors Part 3:

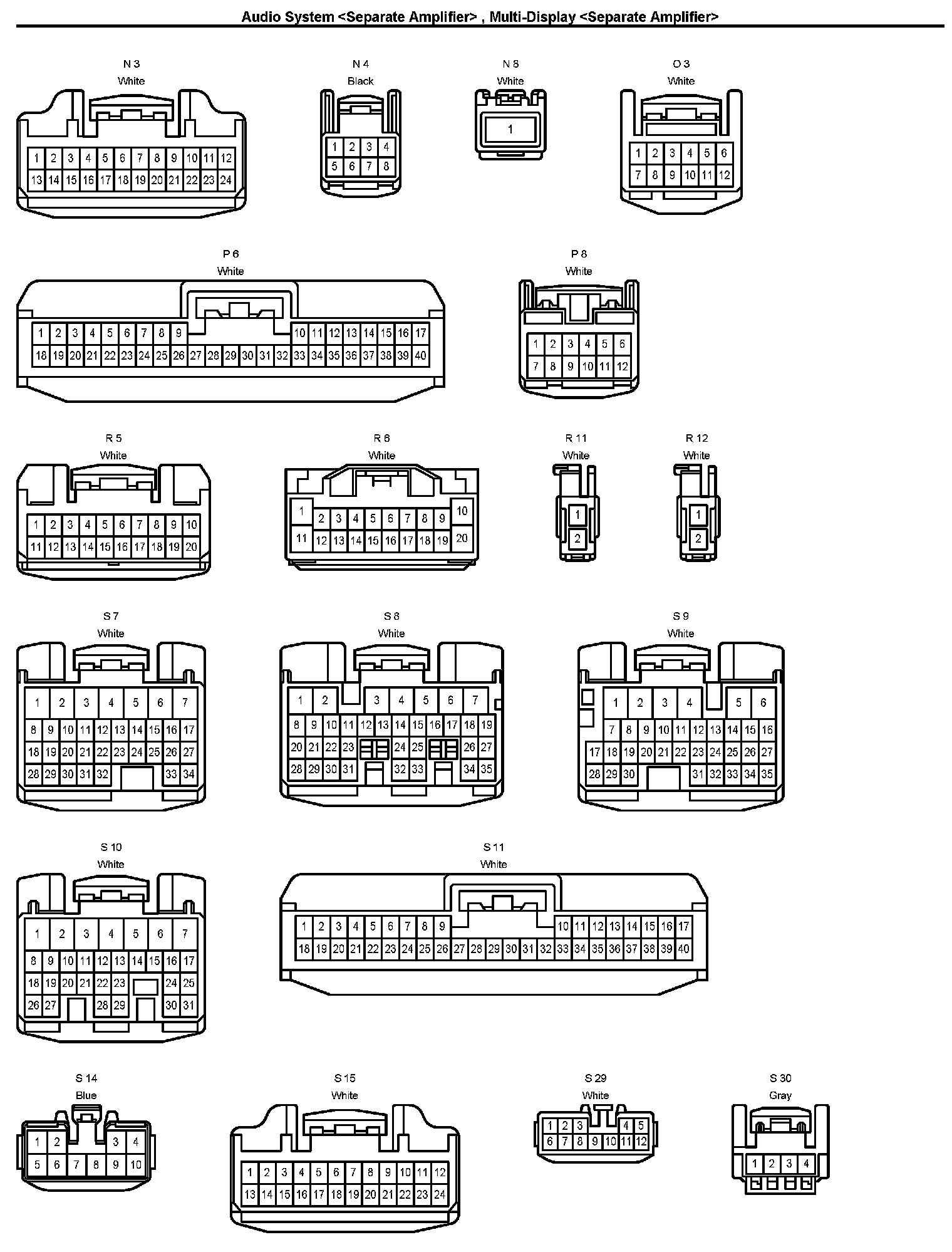

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Connectors Part 7:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
