Radiator Cooling Fan: Description and Operation

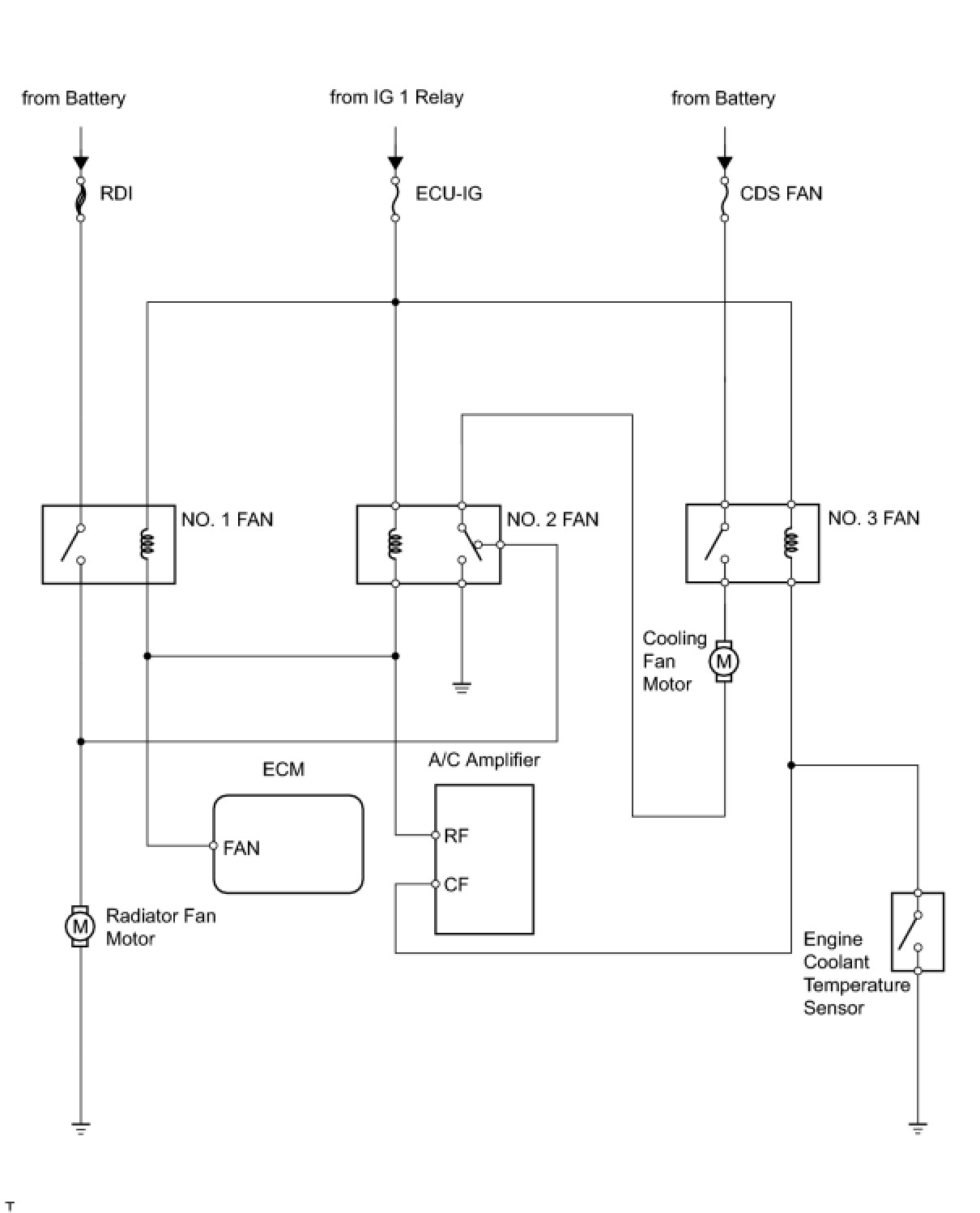

1NZ-FXE COOLING: COOLING FAN SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
