1NZ-FXE COOLING: FAN: REMOVAL

REMOVAL

1. REMOVE REAR NO. 2 FLOOR BOARD Removal
2. REMOVE REAR DECK FLOOR BOX Removal
3. REMOVE REAR NO. 3 FLOOR BOARD Removal
4. DISCONNECT CABLE FROM BATTERY NEGATIVE TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

5. REMOVE RADIATOR SUPPORT OPENING COVER Testing and Inspection
6. REMOVE ENGINE UNDER COVER LH
7. REMOVE ENGINE UNDER COVER RH
8. DRAIN ENGINE COOLANT (for Engine)
(a) Drain the coolant in the radiator on the engine side Testing and Inspection.
(b) After draining the coolant in the radiator on the engine side, remove the radiator drain cock plug.
(c) Drain the coolant in the radiator on the hybrid side Coolant (for Inverter).
9. REMOVE FRONT BUMPER COVER Removal
10. REMOVE FAN WITH MOTOR ASSEMBLY





(a) Disconnect the connector and hose shown in the illustration.
(b) After disconnecting the hose, remove the hose clamp.





(c) Disconnect the hose shown in the illustration.
(d) After disconnecting the hose, remove the 2 hose clamps.





(e) Disconnect the connector shown in the illustration.





(f) Disconnect the hose shown in the illustration.





(g) Disconnect the radiator outlet hose.
(h) Disconnect the radiator reservoir hose.





(i) Disconnect the inverter reservoir hose from the clamps.





(j) Disconnect the radiator inlet hose.
(k) Disconnect the connector and remove the clamp shown in the illustration.

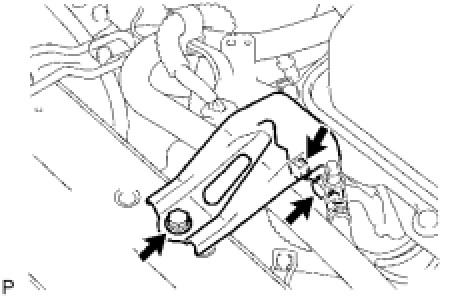

(l) Remove the 3 bolts and inverter bracket.

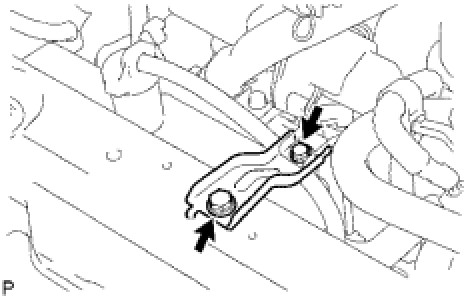

(m) Remove the 2 bolts and cooler bracket.





(n) Disconnect the horn connector shown in the illustration.

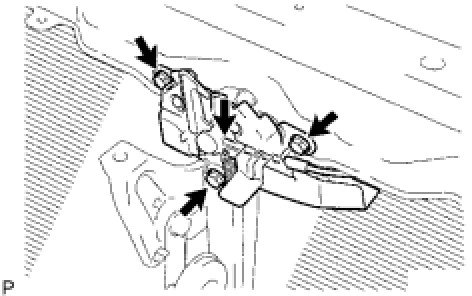

(o) Remove the 3 bolts, disconnect the hood lock control cable, and then remove the hood lock.





(p) Remove the 5 bolts and radiator support.
(q) Remove the hood lock control cable from the radiator support.





(r) Disconnect the wire harness clamps shown in the illustration.





(s) Remove the 4 bolts, then remove the fan with motor from the vehicle.
11. REMOVE FAN





(a) Remove the nut and fan.
12. REMOVE NO. 2 FAN
(a) Remove the nut and fan.
13. REMOVE COOLING FAN MOTOR
(a) Remove the 3 bolts and fan motor.
14. REMOVE NO. 2 COOLING FAN MOTOR
(a) Remove the 3 bolts and fan motor.
