Cylinder Block Assembly: Specifications

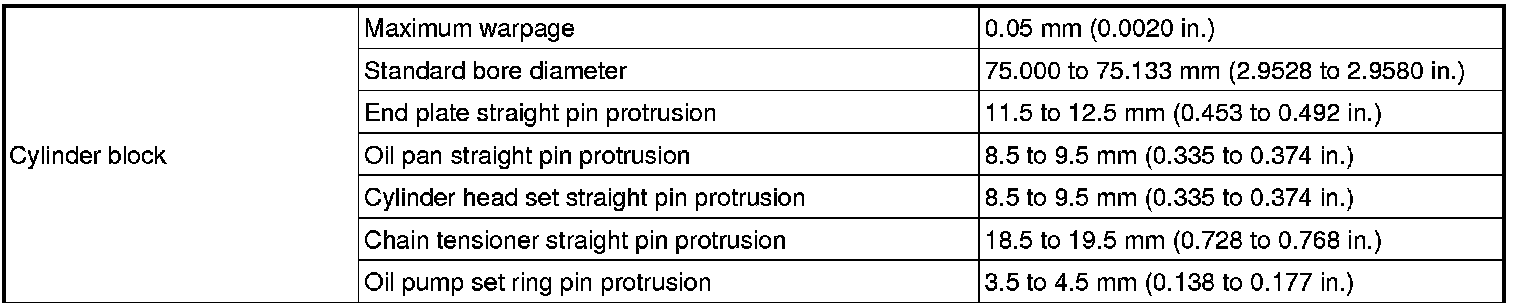

CYLINDER BLOCK SURFACE VARIATION

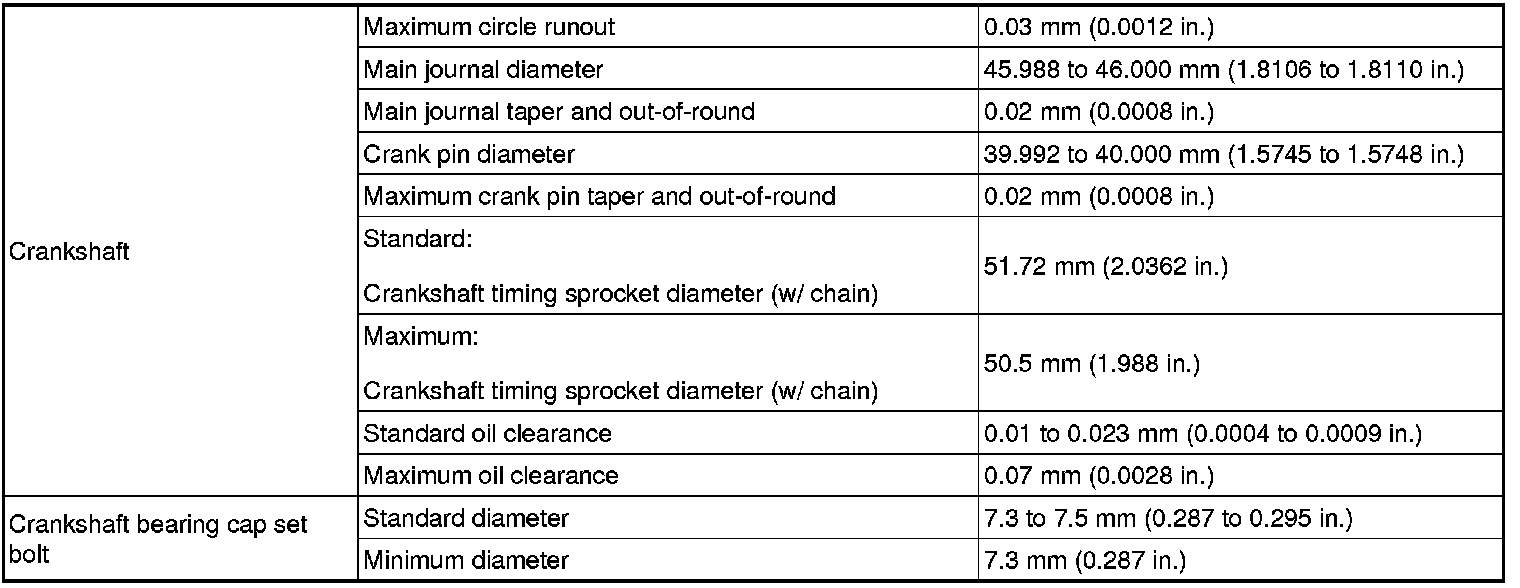

CRANKSHAFT

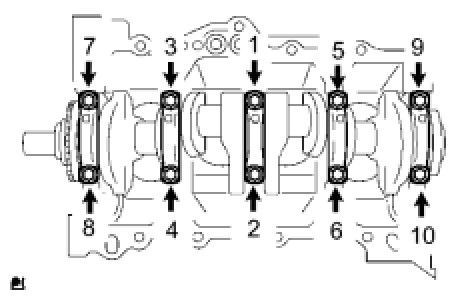

Using SST, tighten the bolts in several steps by the specified torque in the sequence shown in the illustration.

Torque 22 Nm (224 kgf-cm, 16 ft-lbf)





Mark the front of the bearing cap bolts with paint.
Retighten the bearing cap bolts by 90° in the same sequence.
Check that the painted mark is now at a 90° angle to the front.


CONNECTING ROD










PISTON WITH CONNECTING ROD

Torque 15 Nm (153 kgf-cm, 11 ft-lbf)





Mark the front of the connecting cap bolts with paint.
Retighten the cap bolts by 90° as shown.
Check that the crankshaft turns smoothly.

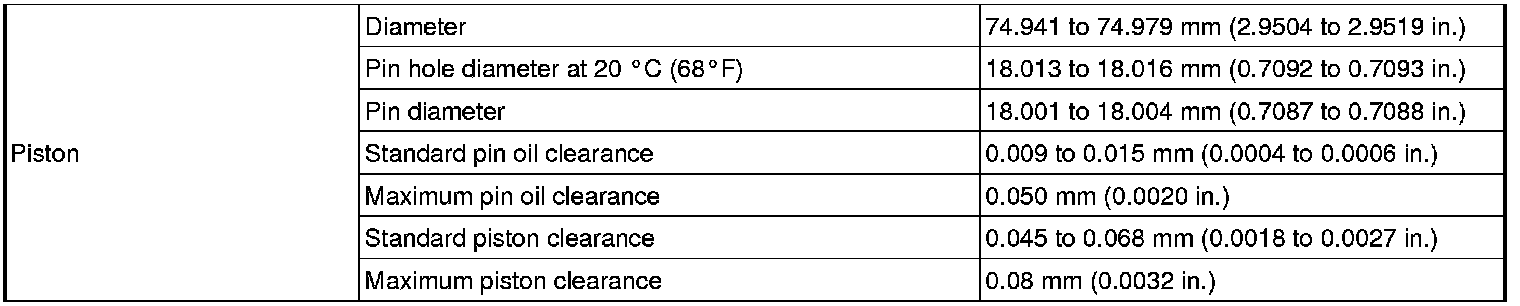

PISTON

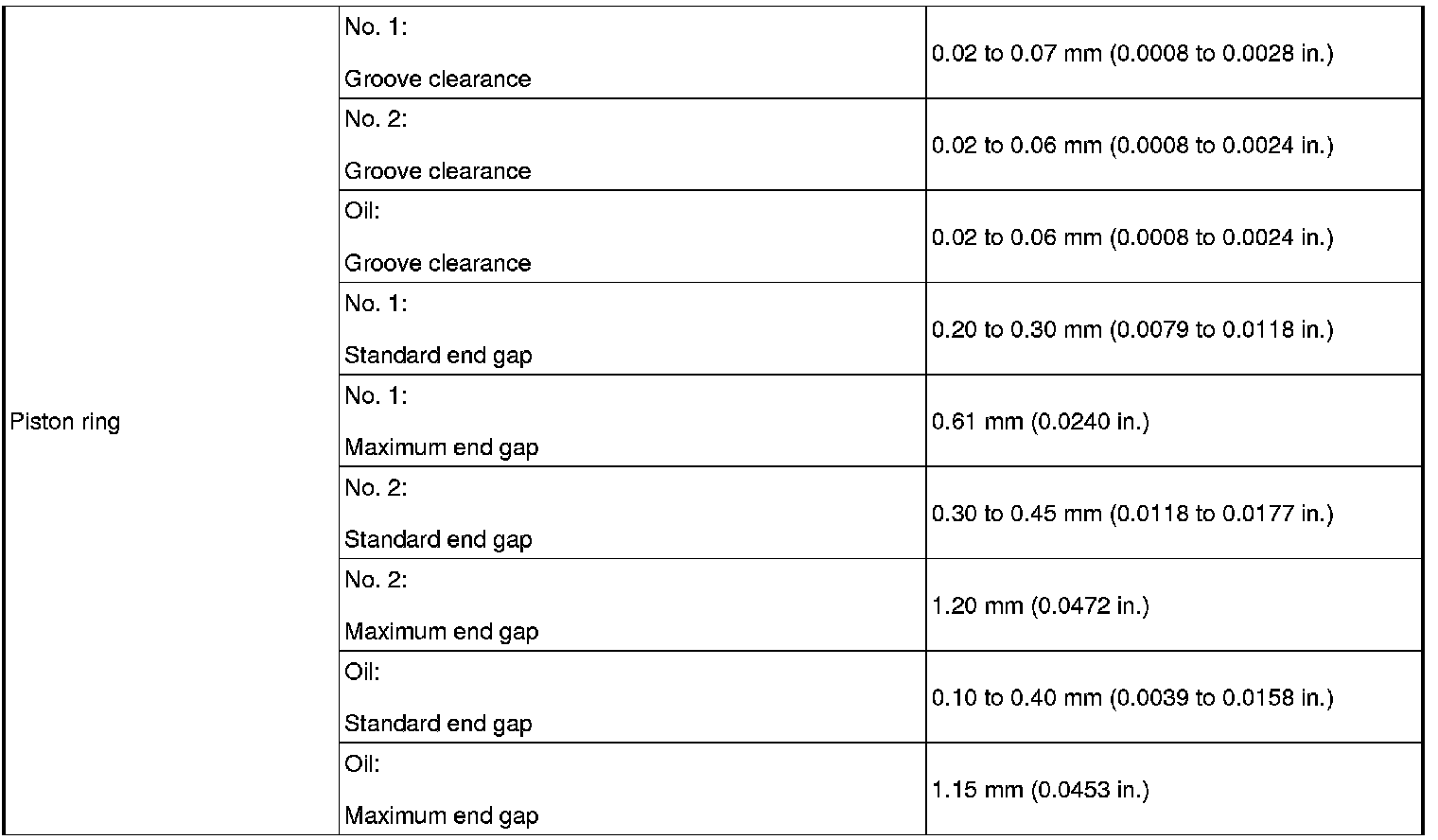

PISTON RING






CRANKSHAFT PULLEY
Torque 128 Nm (1,305 kgf-cm, 95 ft-lbf)
