Disassembly

1NZ-FXE LUBRICATION: OIL PUMP: DISASSEMBLY

DISASSEMBLY

1. REMOVE OIL PUMP ROTOR SET





(a) Remove the 2 bolts and 3 screws, then remove the oil pump cover.

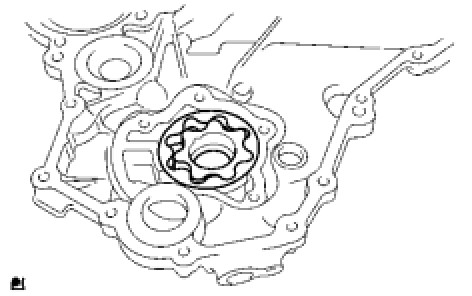

(b) Remove the oil pump rotor set from the oil pump body.
NOTE: Keep the 2 removed rotors without changing the arrangement or turning them over.





2. REMOVE OIL PUMP RELIEF VALVE
(a) Remove the oil pump relief valve plug, then remove the oil pump relief valve spring and oil pump relief valve.
