Flywheel/Flexplate Torque and Sequence

FLYWHEEL

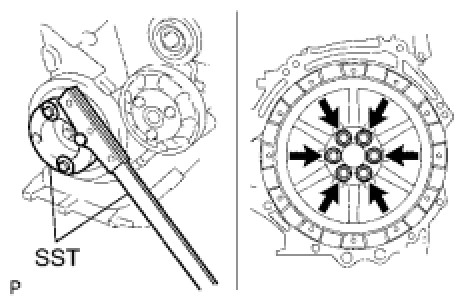

Install the flywheel with 6 new bolts.

Torque 49 Nm (500 kgf-cm, 36 ft-lbf)

After tightening the new bolts to the specified torque, tighten each bolt by an additional 90°.
