Disassembly

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

DISASSEMBLY

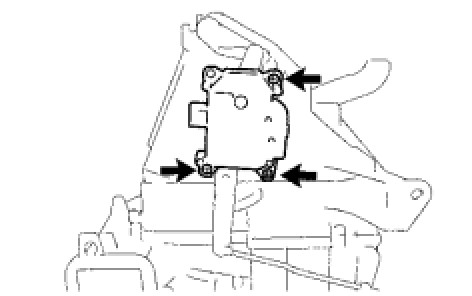

1. REMOVE AIR INLET SERVO MOTOR





(a) Remove the 3 screws and air inlet servo motor.

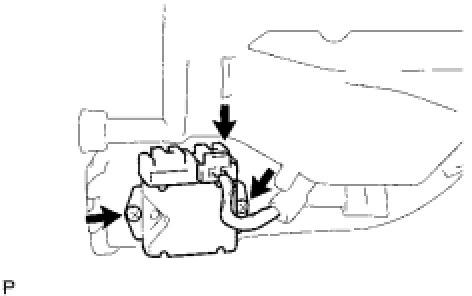

2. REMOVE BLOWER MOTOR CONTROL





(a) Disconnect the connector.
(b) Remove the 2 screws and blower motor control.

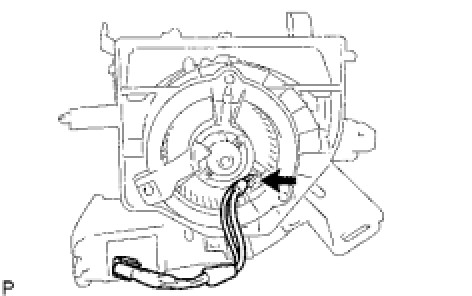

3. REMOVE NO. 2 COOLER WIRING HARNESS SUB-ASSEMBLY

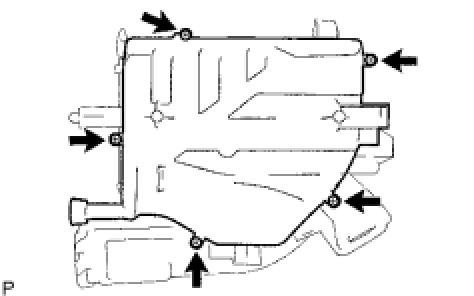

(a) Remove the 5 screws and blower motor cover.





(b) Remove the No. 2 cooler wiring harness from the blower with fan motor.

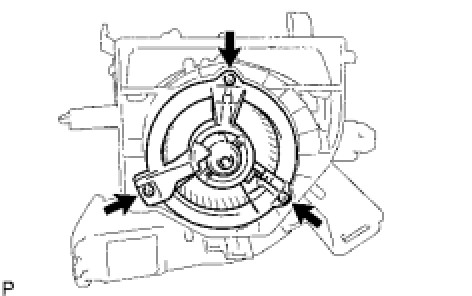

4. REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY





(a) Remove the 3 screws and blower with fan motor.

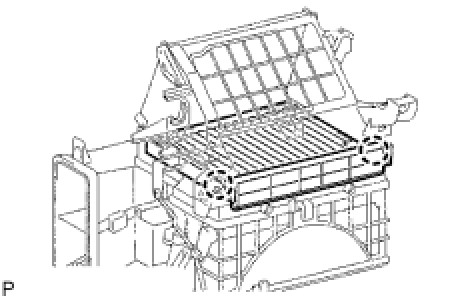

5. REMOVE CLEAN AIR FILTER





(a) Detach the 2 claws and then remove the air filter cover plate with the clean air filter.
(b) Remove the clean air filter from the air filter cover plate.
