AIR CONDITIONING: BLOWER UNIT: INSTALLATION

INSTALLATION

1. INSTALL BLOWER ASSEMBLY

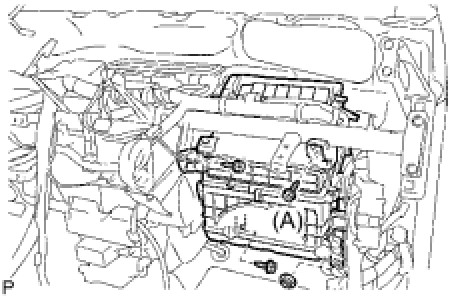

(a) Install the blower with the 3 screws.
HINT: Use a repair screw (part No. 90159-70003) if the screw (A) removed before cannot be tightened.

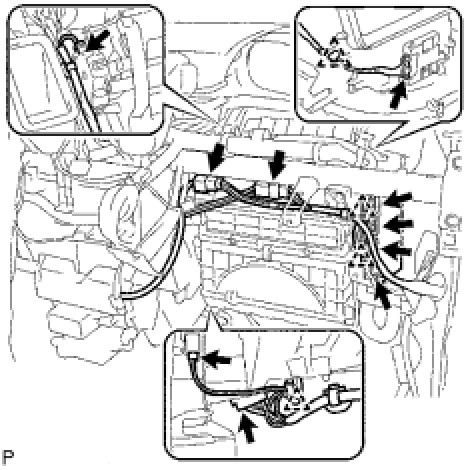

(b) Attach the 4 clamps to connect the wire harness.
(c) Connect the connectors.
(d) Install the 10 connectors of the transponder key ECU.
2. INSTALL AIR DUCT SUB-ASSEMBLY
(a) Install the air duct with the 2 screws.
3. INSTALL NO. 1 HEATER TO REGISTER DUCT
4. INSTALL NETWORK GATEWAY ECU
5. INSTALL ECU
6. INSTALL TRANSMISSION CONTROL ECU ASSEMBLY
7. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY LOWER
HINT: Refer to the installation procedures for the instrument panel sub-assembly lower Installation.

8. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY WITH PASSENGER AIRBAG ASSEMBLY
HINT: Refer to the installation procedures for the instrument panel with the passenger airbag assembly Installation.
