Removal

AIR CONDITIONING: BLOWER UNIT: REMOVAL

REMOVAL

1. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY WITH PASSENGER AIRBAG ASSEMBLY
HINT: Refer to the removal procedures for the instrument panel with the passenger airbag Removal.

2. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY LOWER
HINT: Refer to the removal procedures for the instrument panel lower Removal.

3. REMOVE TRANSMISSION CONTROL ECU ASSEMBLY
4. REMOVE ECM
5. REMOVE NETWORK GATEWAY ECU
6. REMOVE NO. 1 HEATER TO REGISTER DUCT
7. REMOVE AIR DUCT SUB-ASSEMBLY

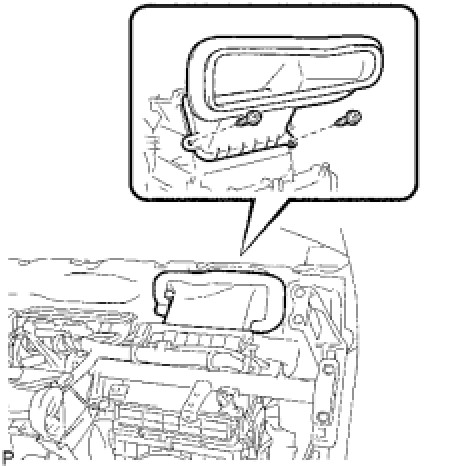

(a) Remove the 2 screws and air duct.

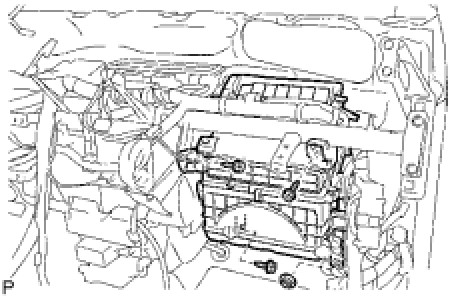

8. REMOVE BLOWER ASSEMBLY

(a) Disconnect the 10 connectors.
(b) Detach the 4 clamps and disconnect the wire harness.
