Disassembly

AIR CONDITIONING: CONDENSER: DISASSEMBLY

DISASSEMBLY

1. REMOVE COOLER DRYER

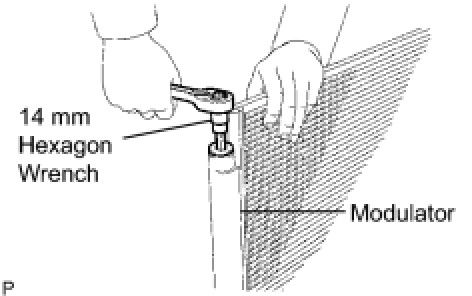

(a) Using a 14 mm hexagon wrench, remove the cap from the modulator.

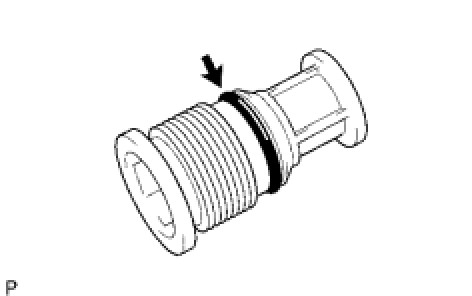

(b) Remove the O-ring from the cap.





(c) Using pliers, remove the cooler dryer.
