Reassembly

AIR CONDITIONING: CONDENSER: REASSEMBLY

REASSEMBLY

1. INSTALL COOLER DRYER





(a) Using pliers, install the cooler dryer to the modulator.

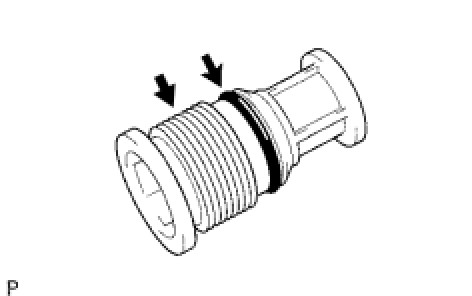

(b) Install a new O-ring to the cap.





(c) Sufficiently apply compressor oil (ND-OIL 11) to the O-ring and cap fitting surface.
Compressor oil:
ND-OIL 11 or equivalent
NOTICE:
- Do not use any compressor oil other than ND-OIL 11.
- If any compressor oil other than ND-OIL 11 is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.





(d) Using a 14 mm hexagon wrench, install the cap to the modulator.
Torque: 2.9 Nm (30 kgf-cm, 25 in-lbf)
