Removal

AIR CONDITIONING: CONDENSER: REMOVAL

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
2. REMOVE FRONT FENDER LINER LH Removal
3. REMOVE FRONT FENDER LINER RH Removal
4. REMOVE FRONT BUMPER COVER
(a) Remove the front bumper cover Removal.
5. REMOVE NO. 1 INVERTER BRACKET

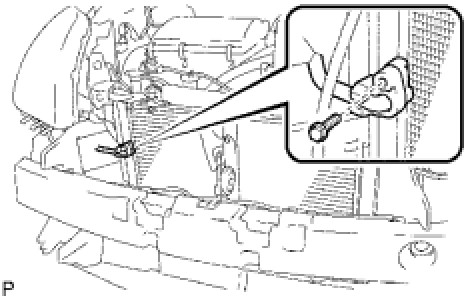

6. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY





(a) Remove the bolt and disconnect the discharge hose from the condenser (with receiver).
(b) Remove the O-ring from the discharge hose.
NOTE: Seal the openings of the disconnected parts of the discharge hose and the condenser using vinyl tape to prevent moisture and foreign matter from entering them.

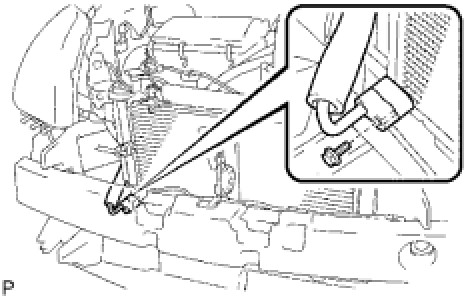

7. DISCONNECT COOLER REFRIGERANT LIQUID PIPE E





(a) Remove the bolt and disconnect the cooler unit refrigerant liquid pipe E from the condenser (with receiver).
(b) Remove the O-ring from the cooler refrigerant liquid pipe E.
NOTE: Seal the openings of the disconnected parts of the cooler unit refrigerant liquid pipe E and the condenser using vinyl tape to prevent moisture and foreign matter from entering them.

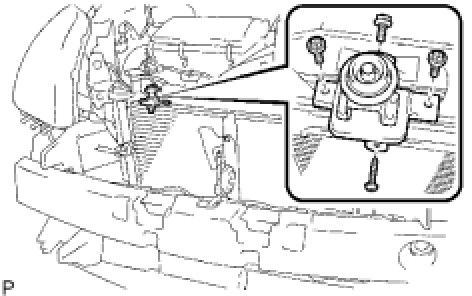

8. REMOVE RADIATOR SUPPORT SUB-ASSEMBLY UPPER RH





(a) Remove the 4 bolts and radiator support upper.

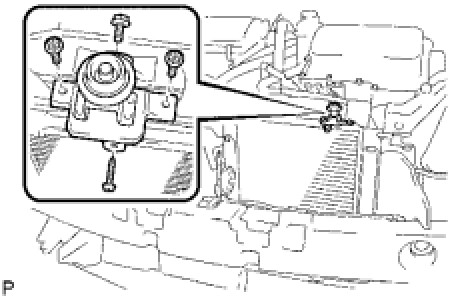

9. REMOVE RADIATOR SUPPORT SUB-ASSEMBLY UPPER LH





(a) Remove the 4 bolts and radiator support upper.
10. REMOVE CONDENSER ASSEMBLY WITH RECEIVER

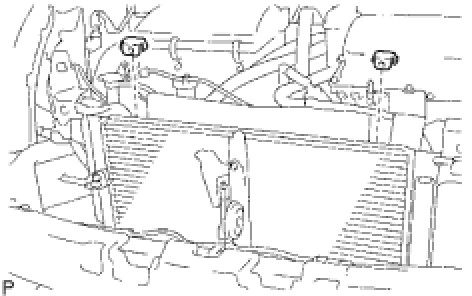

(a) Remove the 2 angles.

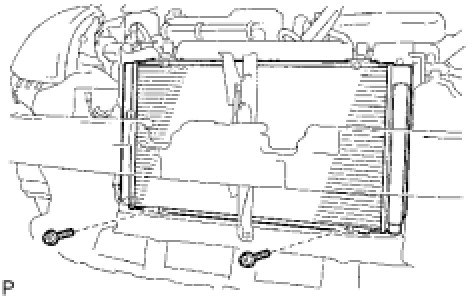

(b) Remove the 2 bolts and condenser (with receiver).
