Pinout Values and Diagnostic Parameters

AIR CONDITIONING: AIR CONDITIONING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU





1. CHECK AIR CONDITIONING AMPLIFIER

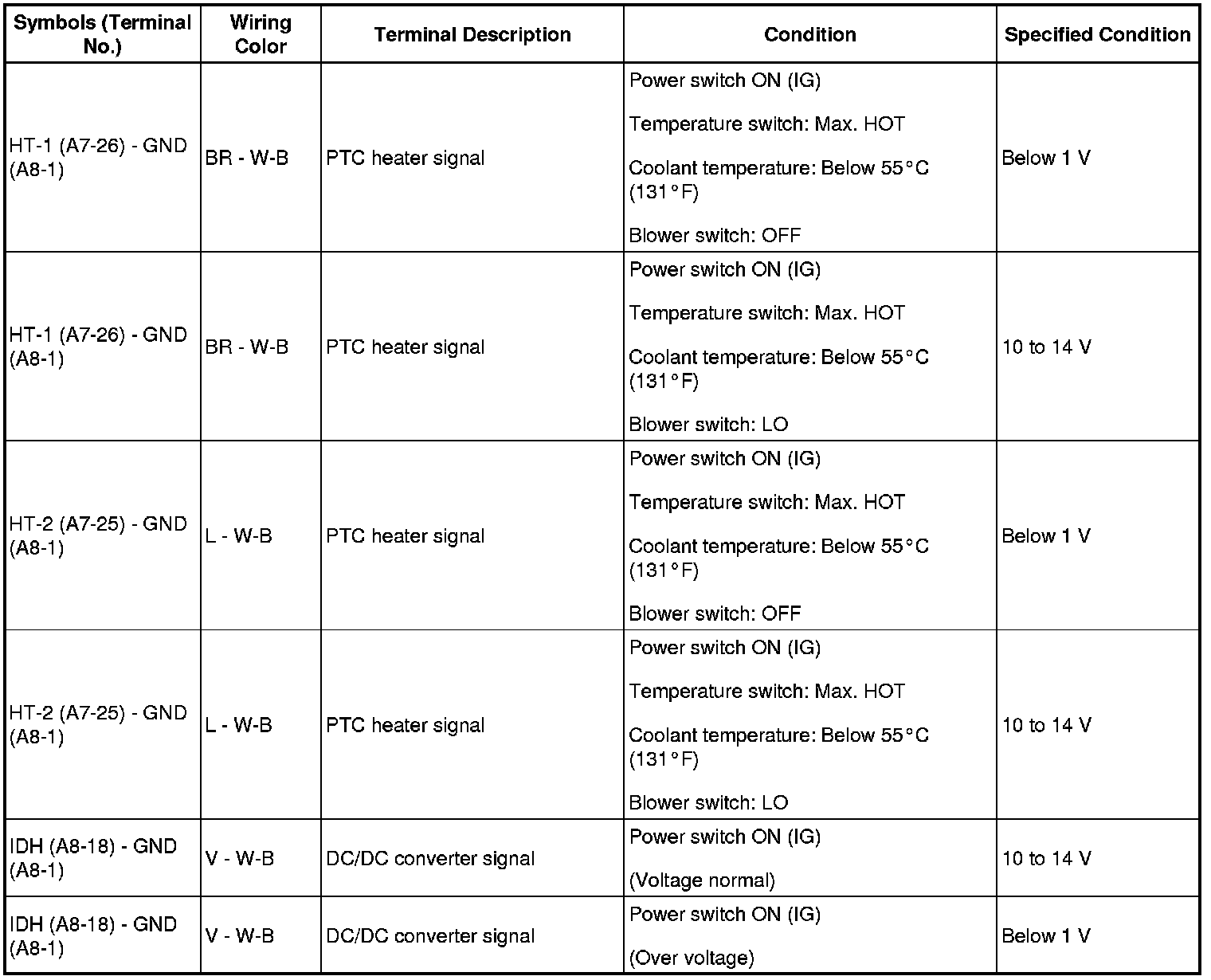

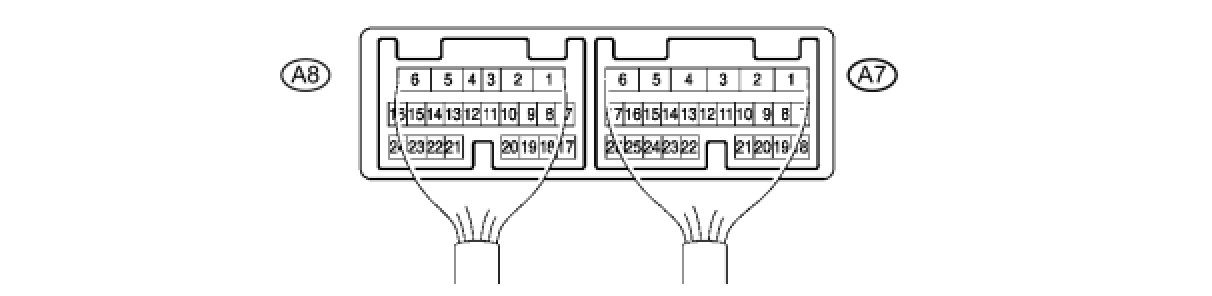

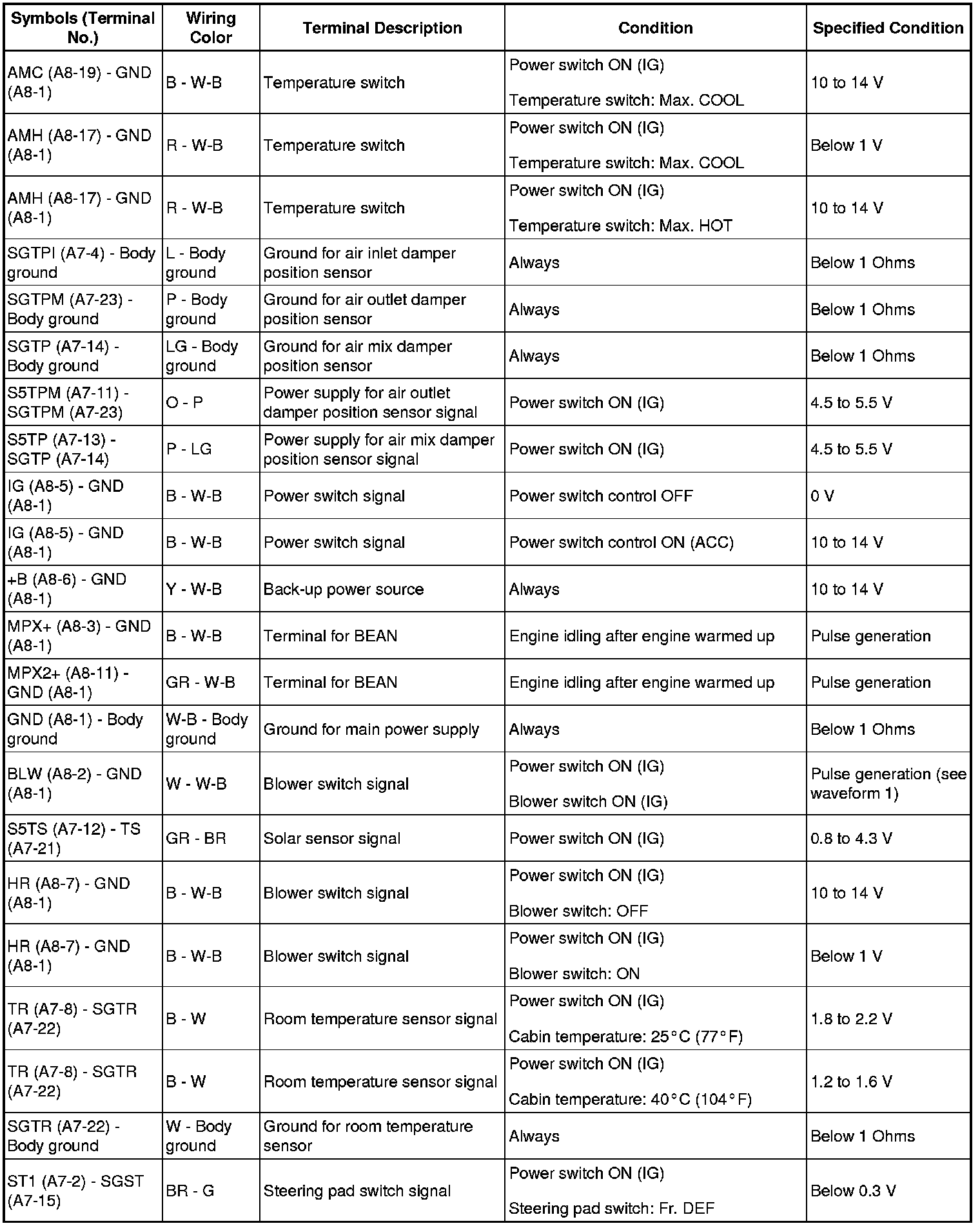

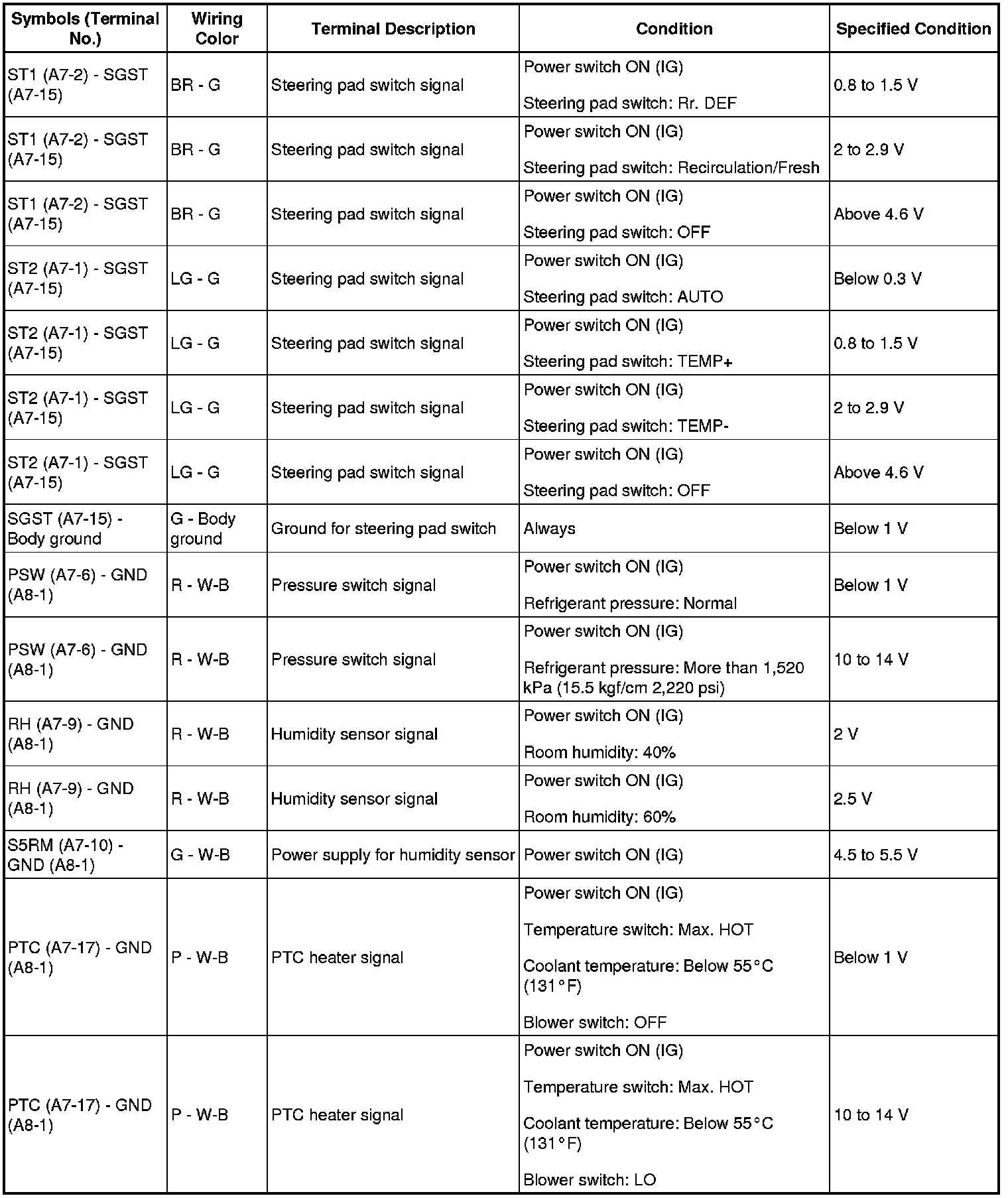

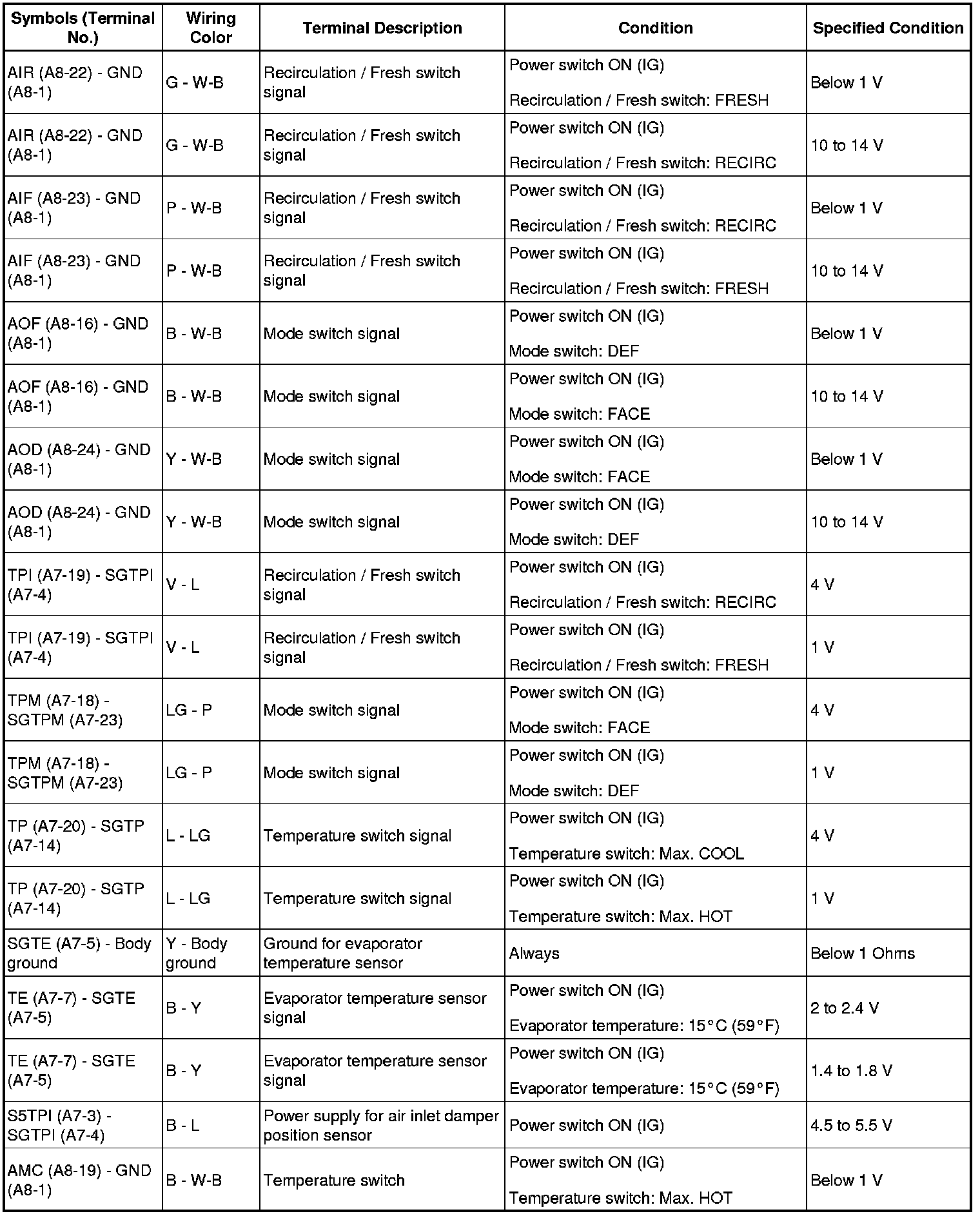

(a) Measure the voltage and resistance of the connectors.
HINT: Check from the rear of the connector while it is connected to the air conditioning amplifier.

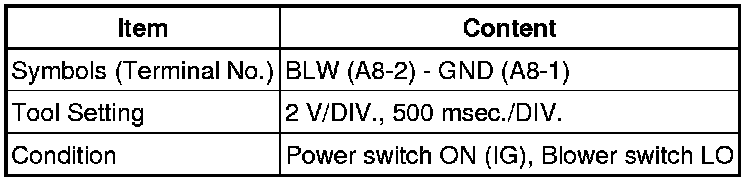

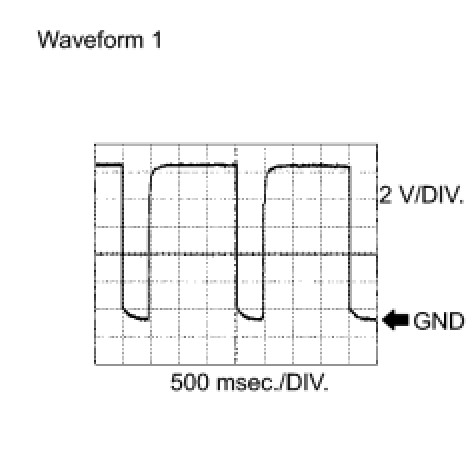

(b) Using an oscilloscope, measure the waveform 1.





HINT: When the blower level is increased, the duty ratio changes accordingly.
