Removal

P112 HYBRID BATTERY CONTROL: BATTERY BLOWER: REMOVAL

REMOVAL

1. REMOVE REAR NO. 2 FLOOR BOARD Removal
2. REMOVE REAR DECK FLOOR BOX Removal
3. REMOVE REAR NO. 3 FLOOR BOARD Removal
4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

5. REMOVE REAR DECK TRIM COVER Removal
6. REMOVE TONNEAU COVER Removal
7. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
8. REMOVE REAR NO. 1 FLOOR BOARD Removal
9. REMOVE REAR SIDE SEAT BACK FRAME RH Removal
10. REMOVE DECK TRIM SIDE PANEL RH Removal
11. REMOVE NO. 2 QUARTER VENT DUCT INNER Removal

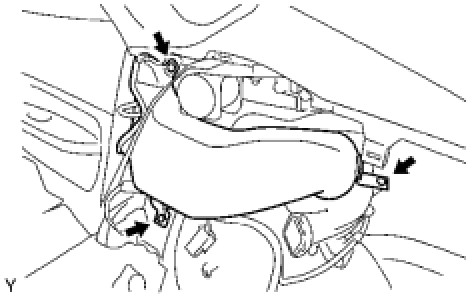

12. REMOVE VENTILATOR DUCT INNER





(a) Remove the 3 clips and ventilator duct inner.

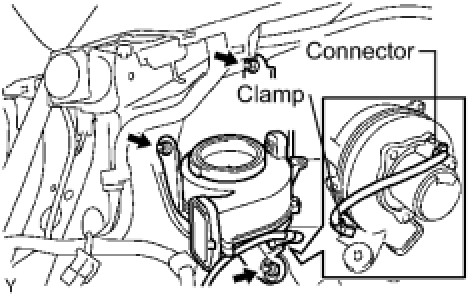

13. REMOVE BATTERY BLOWER





(a) Remove the 3 nuts, then disconnect the battery blower assembly from the vehicle.
(b) Remove the connector, clamp and battery blower.
