Reassembly

P112 HYBRID BATTERY CONTROL: HV BATTERY: REASSEMBLY

REASSEMBLY





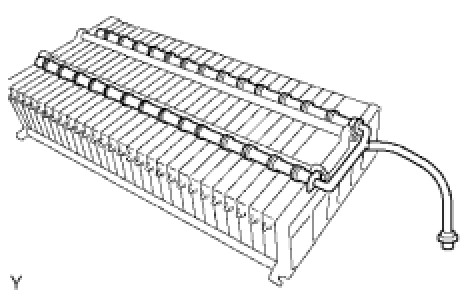

1. INSTALL BATTERY ROOM VENTILATION HOSE
CAUTION: Wear insulating gloves and protective glasses.

2. INSTALL NO. 2 FRAME WIRE Installation
3. INSTALL NO. 2 BATTERY SPACER
CAUTION: Wear insulating gloves and protective glasses.





4. INSTALL UPPER BATTERY CARRIER
CAUTION: Wear insulating gloves and protective glasses.

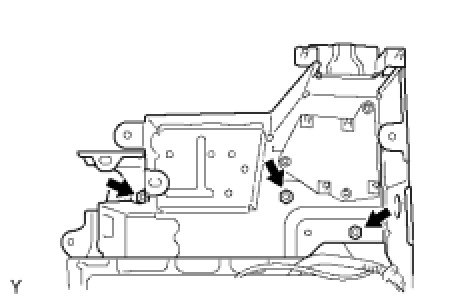

(a) Install the upper battery carrier with the 3 nuts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
5. INSTALL BATTERY ECU Installation
6. INSTALL NO. 1 SYSTEM MAIN RELAY Installation
7. INSTALL SYSTEM MAIN RESISTOR Installation
8. INSTALL NO. 3 SYSTEM MAIN RELAY Installation
9. INSTALL NO. 2 SYSTEM MAIN RELAY Installation
10. INSPECT CONTACT CONDITION Installation
11. INSTALL JUNCTION BLOCK Installation
12. INSTALL BATTERY PLUG Installation
13. INSTALL NO. 1 WIRE HARNESS PROTECTOR COVER Installation
14. INSTALL BATTERY CLAMP PAD Installation
15. INSTALL NO. 4 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.

16. INSTALL NO. 2 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.

17. INSTALL BATTERY CURRENT SENSOR Installation
18. INSTALL NO. 2 MAIN BATTERY CABLE Installation
19. INSTALL MAIN BATTERY CABLE Installation
20. INSTALL NO. 3 BATTERY CARRIER CUSHION Installation
21. INSTALL NO. 3 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.

22. INSTALL NO. 1 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.

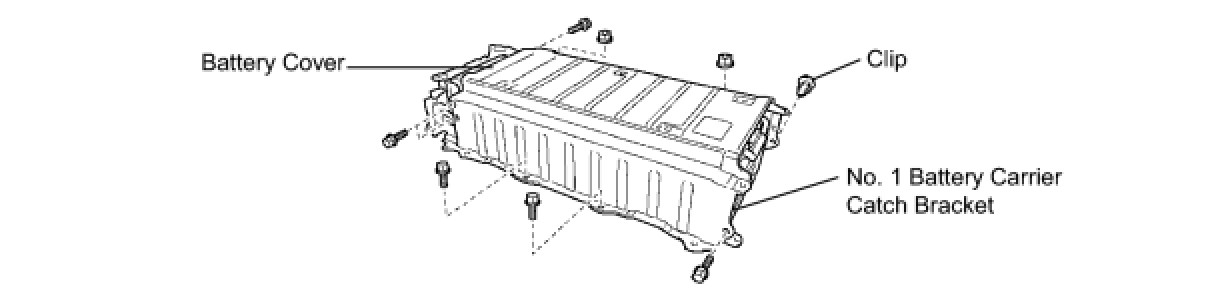

23. INSTALL BATTERY COVER
CAUTION: Wear insulating gloves.

(a) Temporarily fasten the battery carrier catch bracket to the battery room ventilation hose.
(b) Install the battery cover with the 6 bolts, 2 nuts and clip.





Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
(c) Install the protector on the battery cover.
