Installation

P112 HYBRID BATTERY CONTROL: JUNCTION BLOCK: INSTALLATION

INSTALLATION





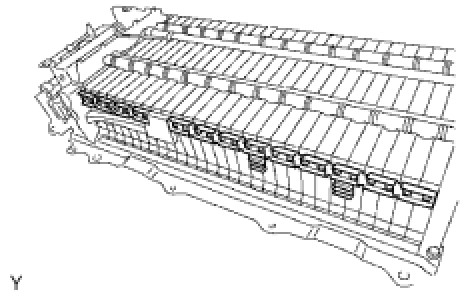

1. INSTALL JUNCTION BLOCK
CAUTION: Wear insulating gloves.

(a) Install the junction block assembly with 26 new nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

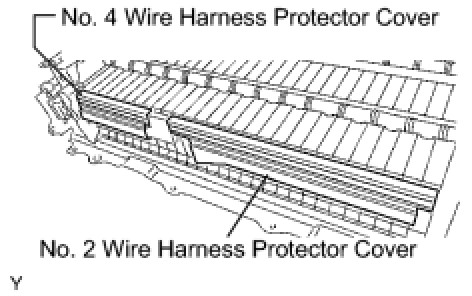

2. INSTALL NO. 2 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.

3. INSTALL NO. 4 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.

4. INSTALL BATTERY COVER Reassembly
5. INSTALL HV BATTERY ASSEMBLY
(a) Install the HV battery to the vehicle Installation.
6. INSTALL SERVICE PLUG GRIP Installation
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
8. INSTALL REAR NO. 3 FLOOR BOARD Installation
9. INSTALL REAR DECK FLOOR BOX Installation
10. INSTALL REAR NO. 2 FLOOR BOARD Installation
11. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
