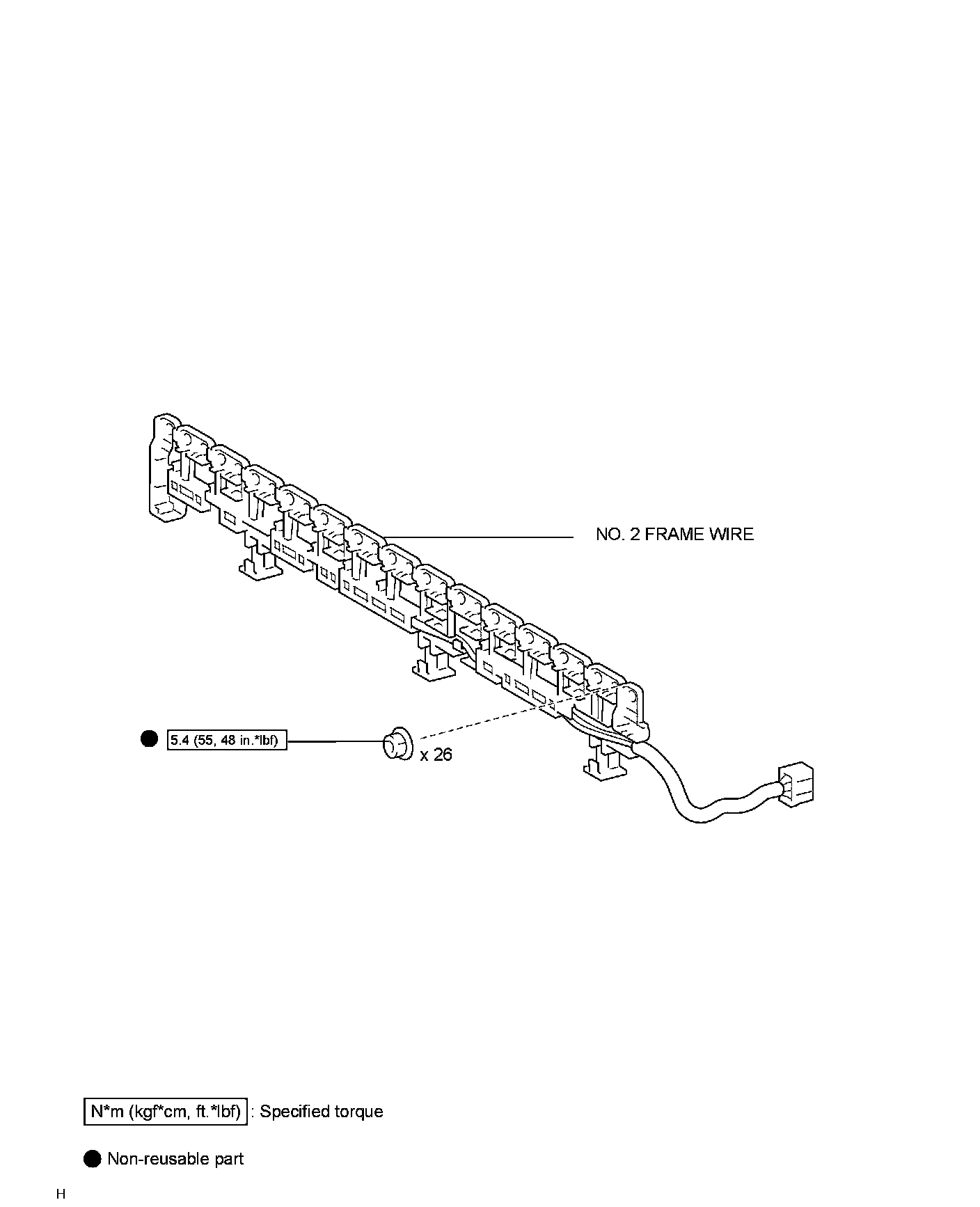

Home >> Toyota >> 2009 >> Prius L4-1.5L (1NZ-FXE) Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Battery System, Hybrid Drive >> Hybrid Battery Bus / Cable >> Service and Repair >> Hybrid Battery Control Frame Wire >> Components
