P112 HYBRID BATTERY CONTROL: BATTERY PLUG: INSTALLATION

INSTALLATION

1. INSTALL BATTERY PLUG





(a) Temporarily fasten the service plug.
(b) Install the service plug to the upper battery carrier with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

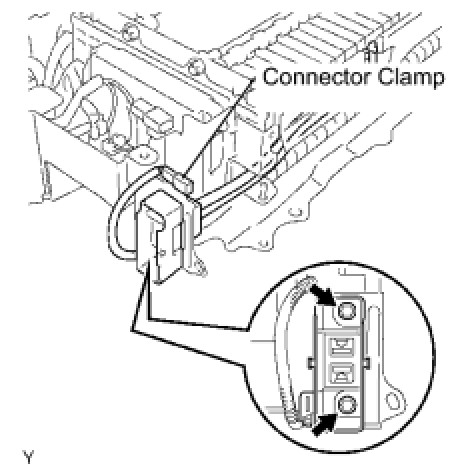

(c) Assemble the connector clamp.
2. INSTALL NO. 1 WIRE HARNESS PROTECTOR COVER
(a) Temporarily fasten the wire harness protector cover to the service plug.
(b) Install the wiring harness protector cover through the service plug with 2 new nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)





3. INSTALL BATTERY CLAMP PAD
CAUTION: Wear insulating gloves.

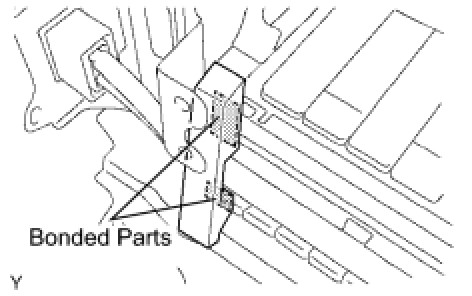

(a) Install a new clamp pad (the battery carrier cushion).
4. INSTALL BATTERY COVER Reassembly
5. INSTALL HV BATTERY ASSEMBLY
(a) Install the HV battery to the vehicle Installation.
6. INSTALL SERVICE PLUG GRIP Installation
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
8. INSTALL REAR NO. 3 FLOOR BOARD Installation
9. INSTALL REAR DECK FLOOR BOX Installation
10. INSTALL REAR NO. 2 FLOOR BOARD Installation
11. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
