Removal

1NZ-FXE COOLING: COOLANT HEAT STORAGE WATER PUMP: REMOVAL

REMOVAL

1. REMOVE REAR FLOOR NO. 2 BOARD Removal
2. REMOVE REAR DECK FLOOR BOX Removal
3. REMOVE REAR FLOOR NO. 3 BOARD Removal
4. DISCONNECT CABLE FROM BATTERY NEGATIVE TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

5. REMOVE RADIATOR SUPPORT OPENING COVER Testing and Inspection
6. REMOVE FRONT WHEEL LH
7. REMOVE ENGINE UNDER COVER LH
8. REMOVE FRONT FENDER LINER LH
(a) Partially remove the front fender liner LH.
9. DRAIN ENGINE COOLANT (for Engine) Coolant (for Inverter)
10. REMOVE COOLANT HEAT STORAGE WATER PUMP





(a) Disconnect the coolant heat storage water pump connector.

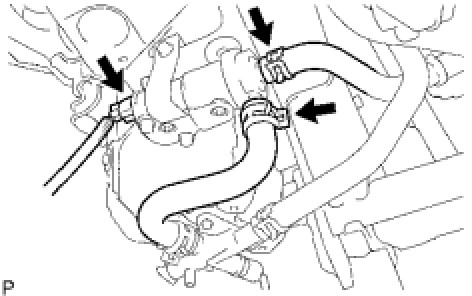

(b) Disconnect the 2 hoses.

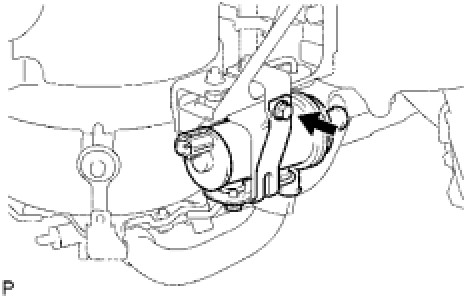

(c) Remove the bolt and coolant heat storage water pump.
