12V Auxilliary Battery

REMOVAL

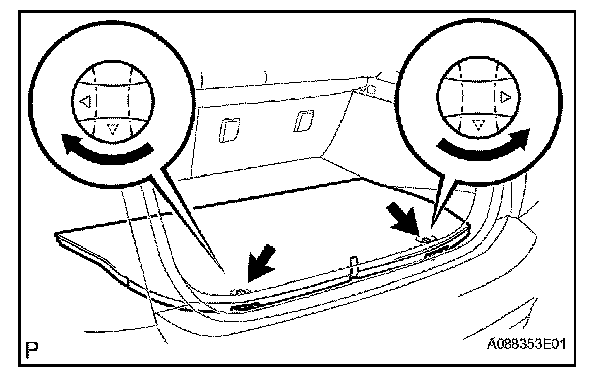

1. REMOVE REAR NO. 2 FLOOR BOARD




a. Unlock the 2 washer tank cover knobs, and then remove the rear floor board.

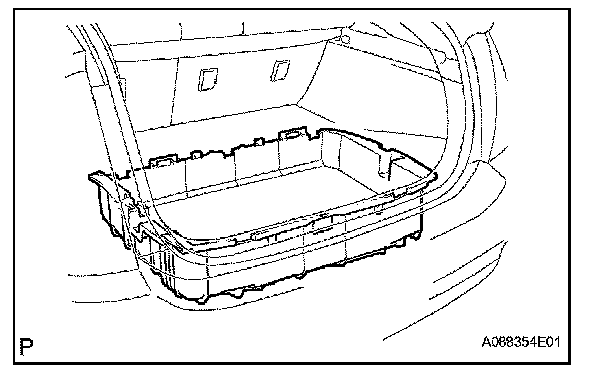

2. REMOVE REAR DECK FLOOR BOX




a. Remove the rear deck floor box from the vehicle.

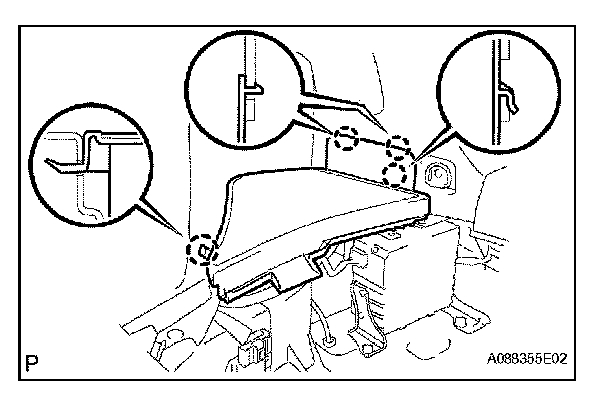

3. REMOVE REAR NO. 3 FLOOR BOARD




a. Detach the 4 claws, and then remove the floor board.

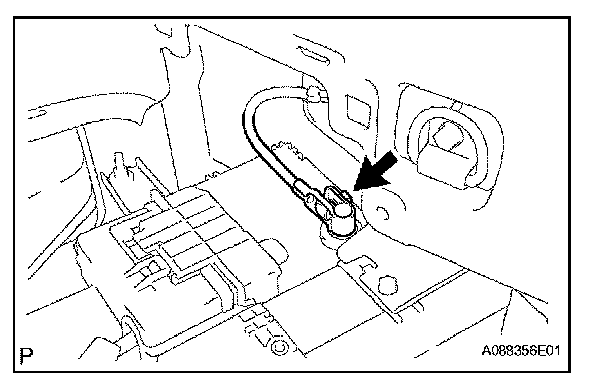

4. DISCONNECT BATTERY NEGATIVE CABLE




a. Loosen the nut, and then disconnect the battery negative cable (engine wire).
