Battery Current Sensor
>>
Locations
Battery Current Sensor: Locations

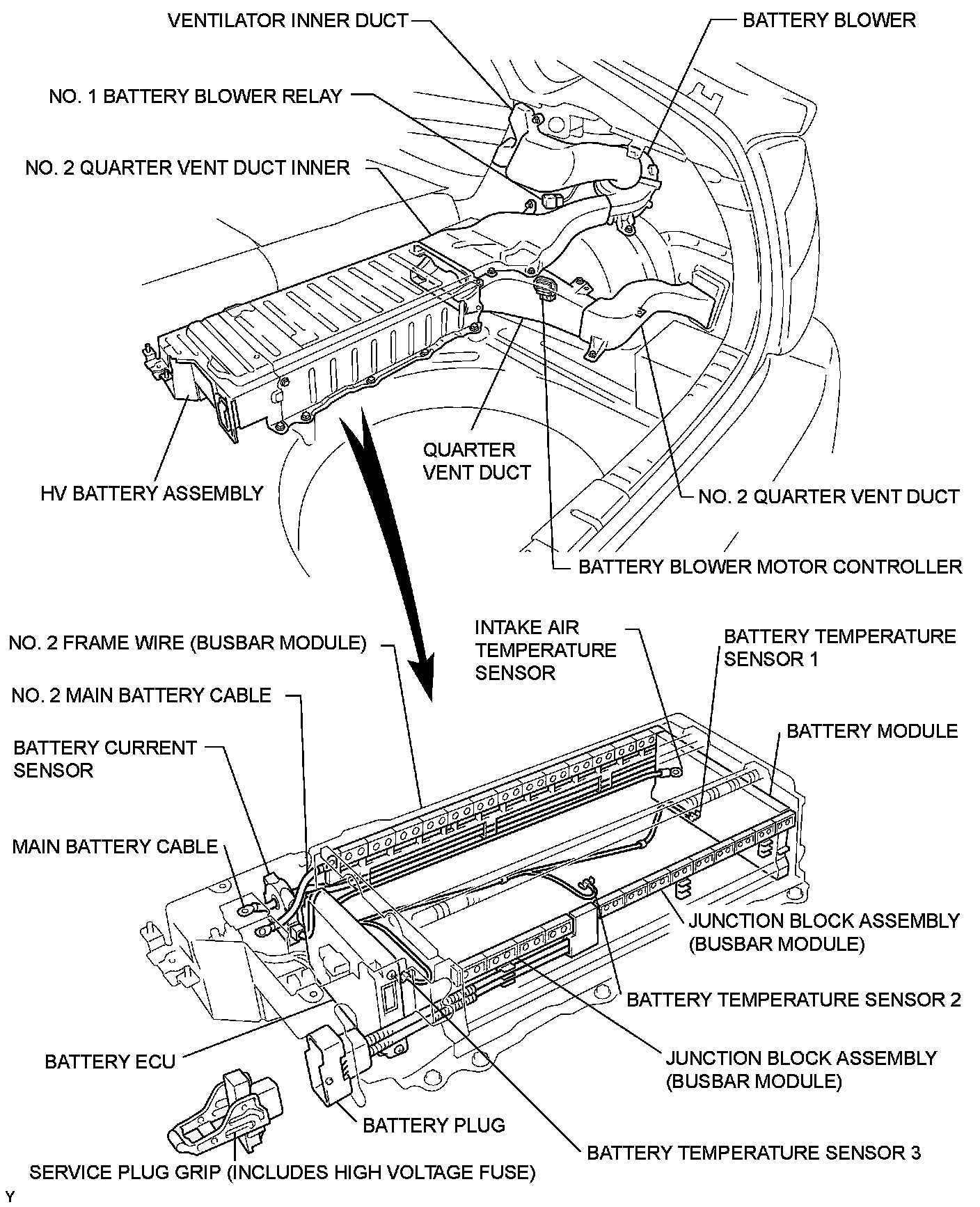

P112 HYBRID BATTERY CONTROL: HYBRID BATTERY SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
