P112 HYBRID BATTERY CONTROL: BATTERY CURRENT SENSOR: INSTALLATION

INSTALLATION

1. INSTALL BATTERY CURRENT SENSOR




CAUTION: Wear insulating gloves.

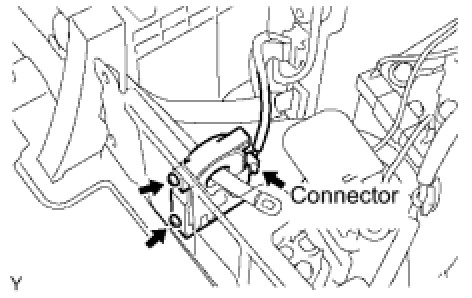

(a) Install the battery current sensor with the 2 screws.
Torque: 1.4 Nm (14 kgf-cm, 12 in-lbf)
(b) Connect the connector.

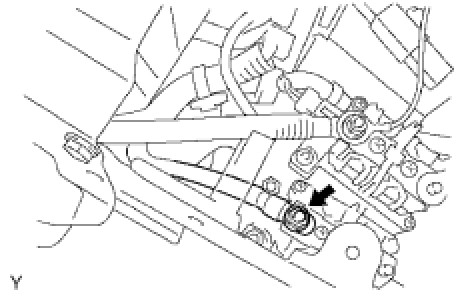

(c) Install the main battery cable with a new nut.
Torque: 5.6 Nm (57 kgf-cm, 50 in-lbf)

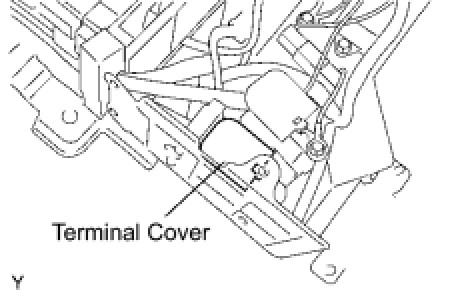

(d) Install the terminal cover.
2. INSTALL NO. 6 BATTERY CARRIER PANEL Installation
3. INSTALL BATTERY CARRIER BRACKET Installation
4. INSTALL DECK TRIM SIDE PANEL LH Installation
5. INSTALL DECK FLOOR BOX LH Installation
6. INSTALL REAR NO. 4 FLOOR BOARD Installation
7. INSTALL REAR SIDE SEAT BACK FRAME LH Installation
8. INSTALL REAR NO. 1 FLOOR BOARD Installation
9. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
10. INSTALL TONNEAU COVER Installation
11. INSTALL REAR DECK TRIM COVER Installation
12. INSTALL SERVICE PLUG GRIP Installation
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
14. INSTALL REAR NO. 3 FLOOR BOARD Installation
15. INSTALL REAR DECK FLOOR BOX Installation
16. INSTALL REAR NO. 2 FLOOR BOARD Installation
17. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
