Fail-Safe Chart

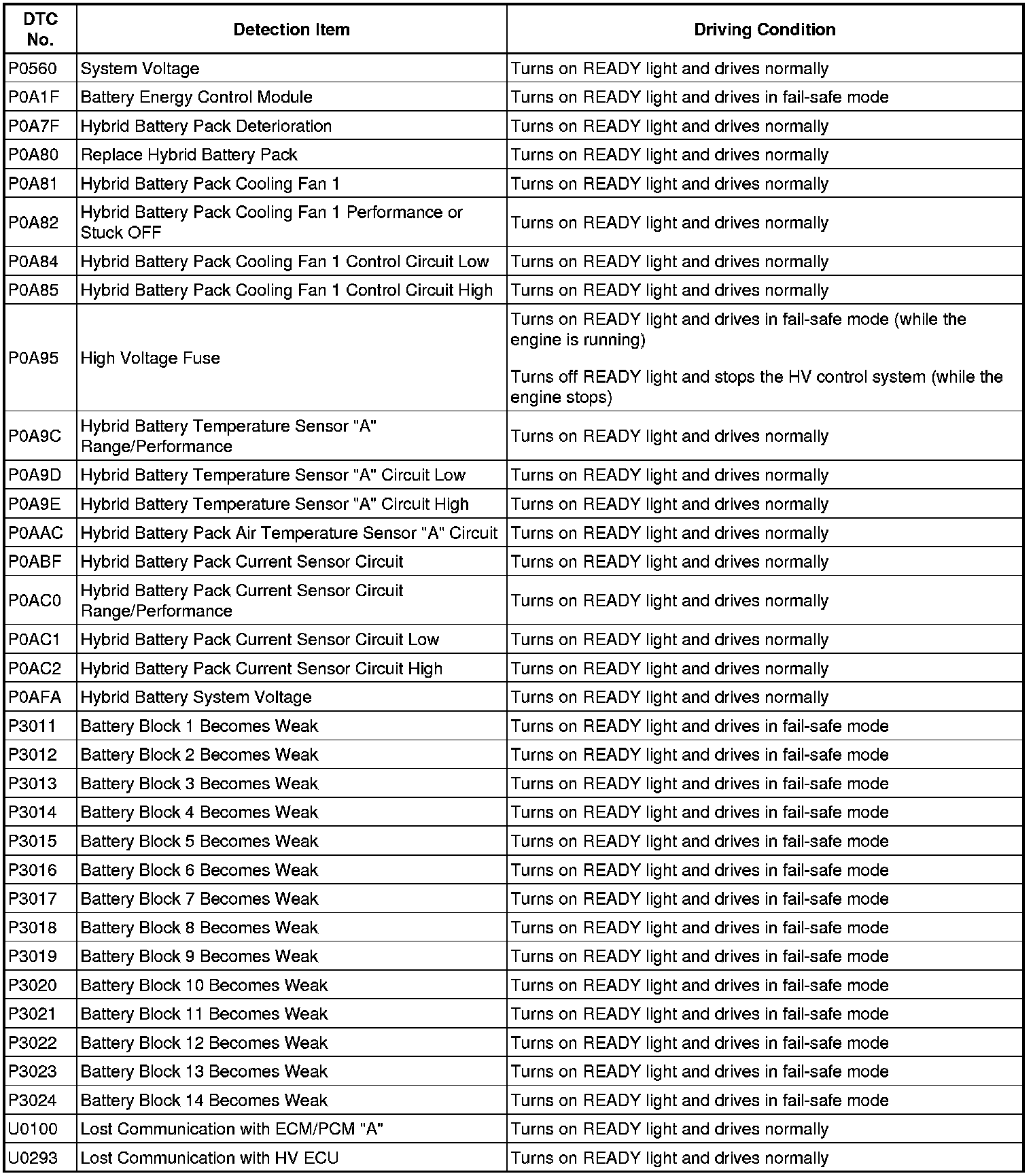

P112 HYBRID BATTERY CONTROL: HYBRID BATTERY SYSTEM: FAIL-SAFE CHART
FAIL-SAFE CHART
1.
FAIL-SAFE CHART
