Fail-Safe Chart

P112 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

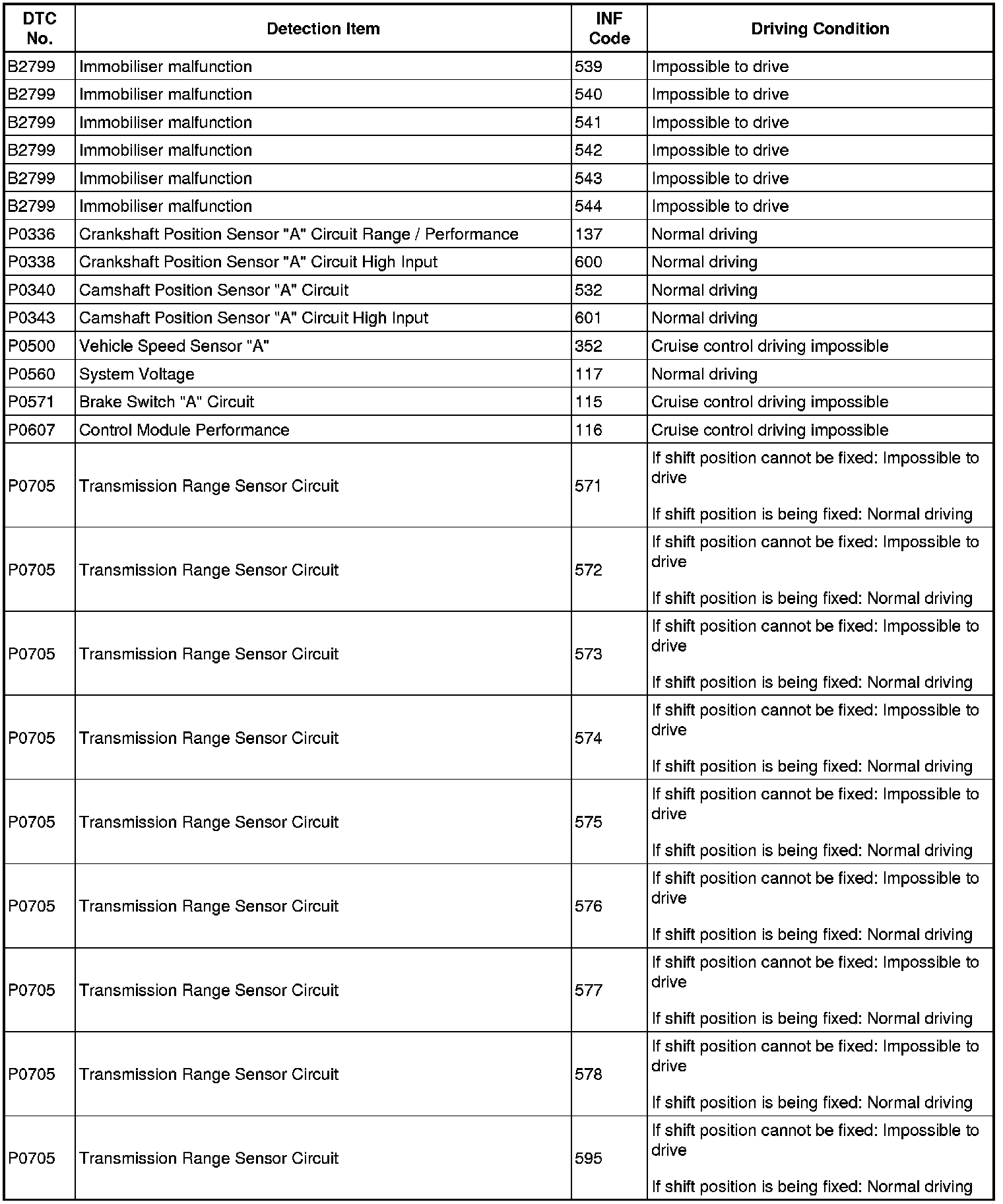

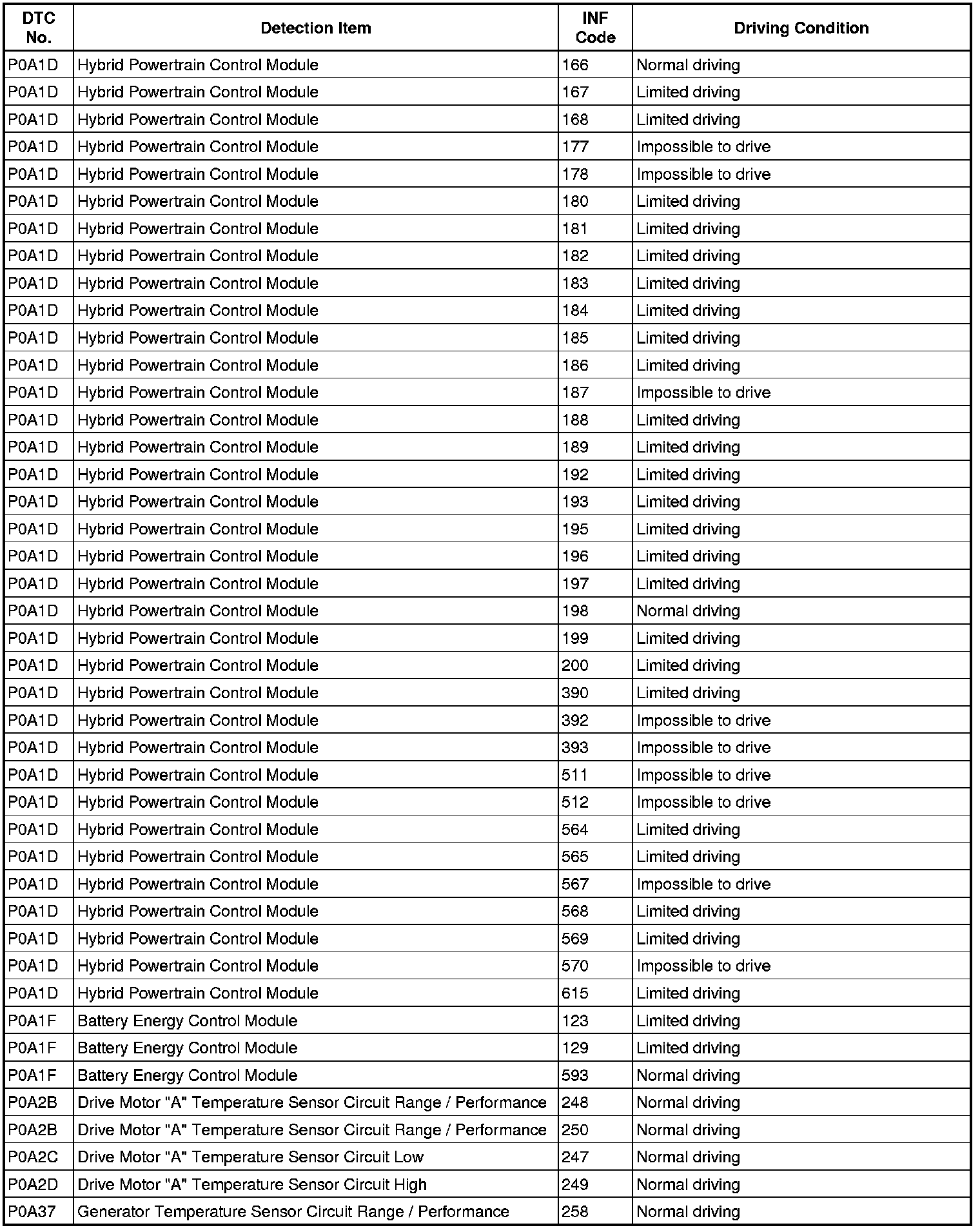

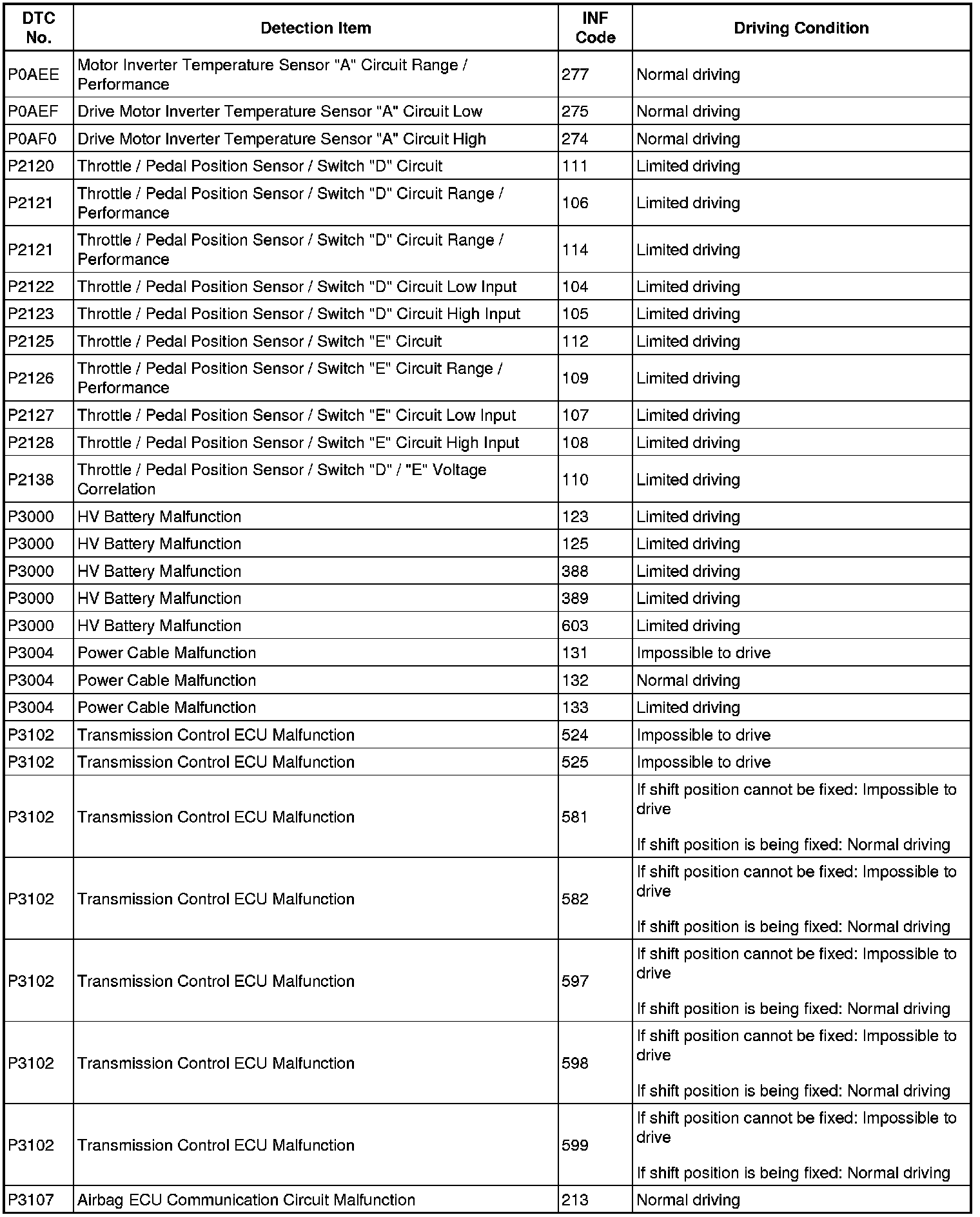

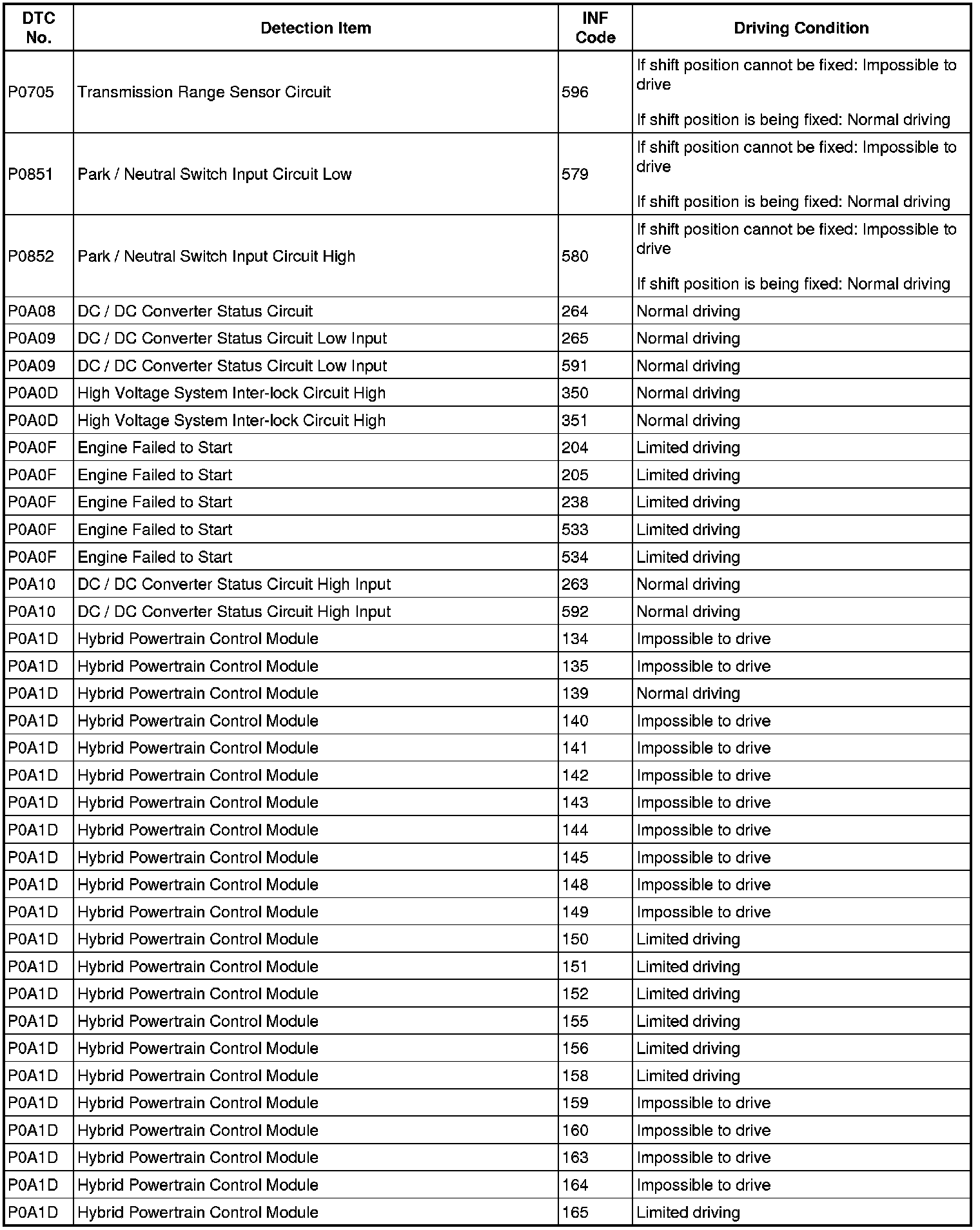

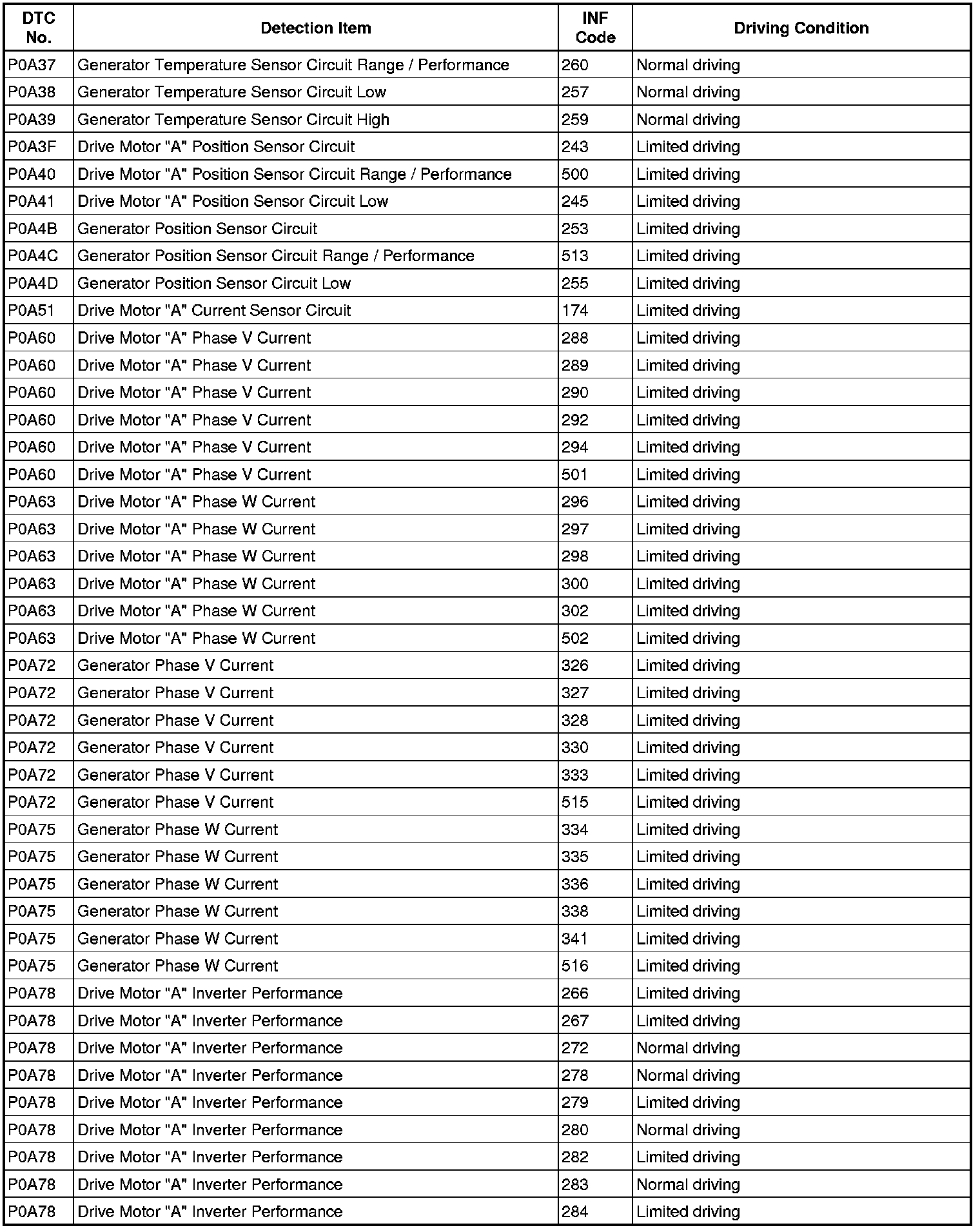

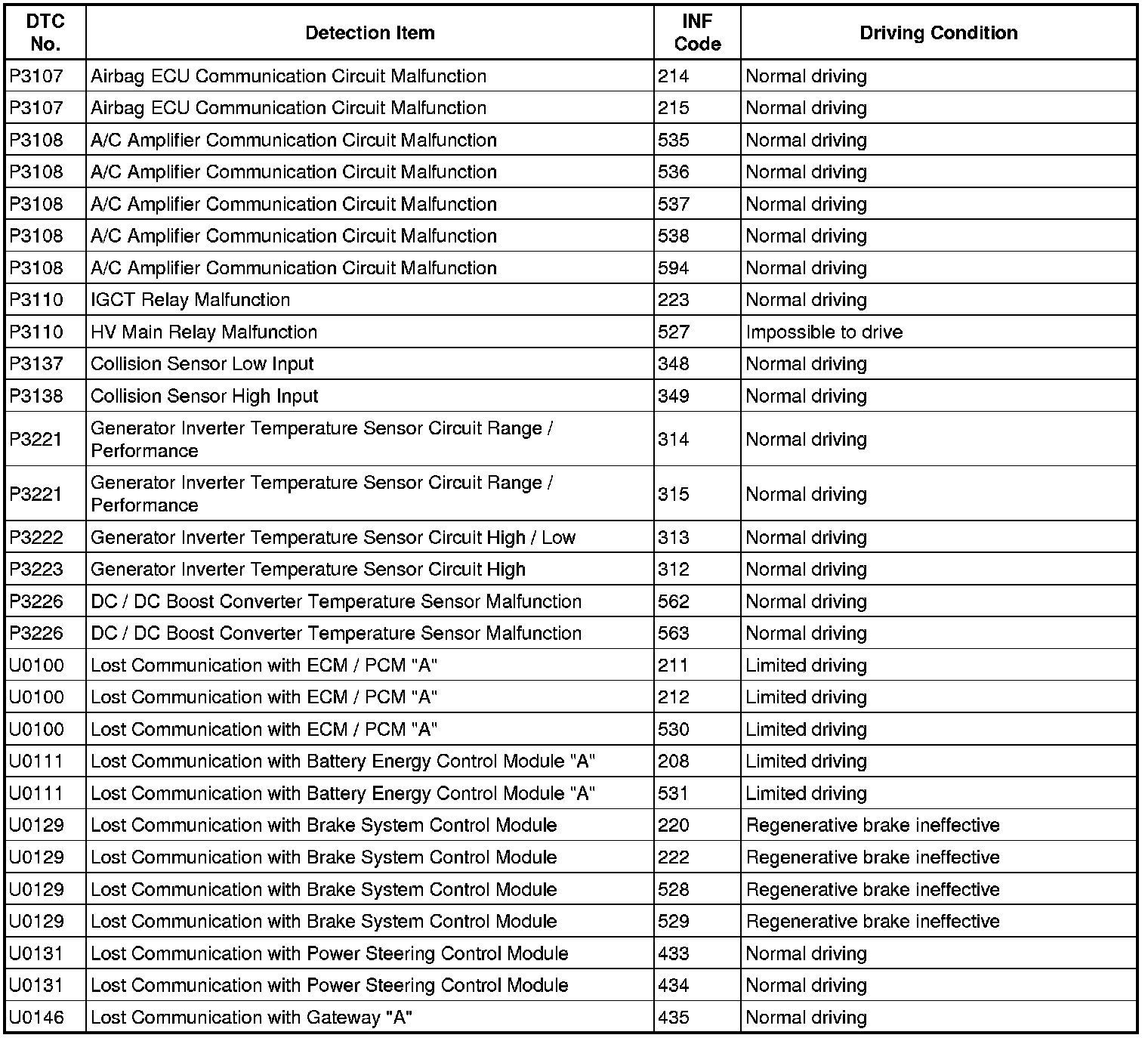

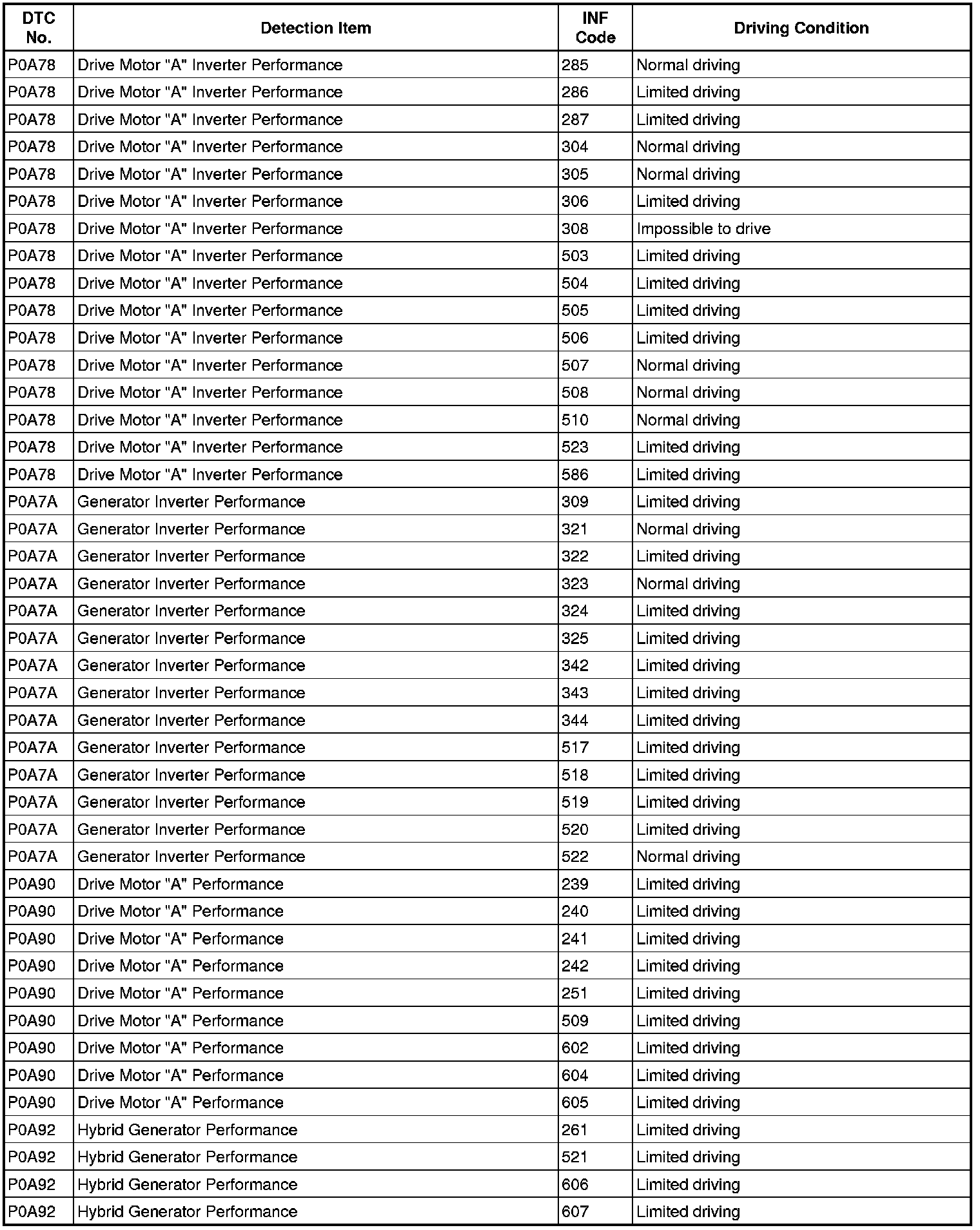

1. FAIL-SAFE CHART

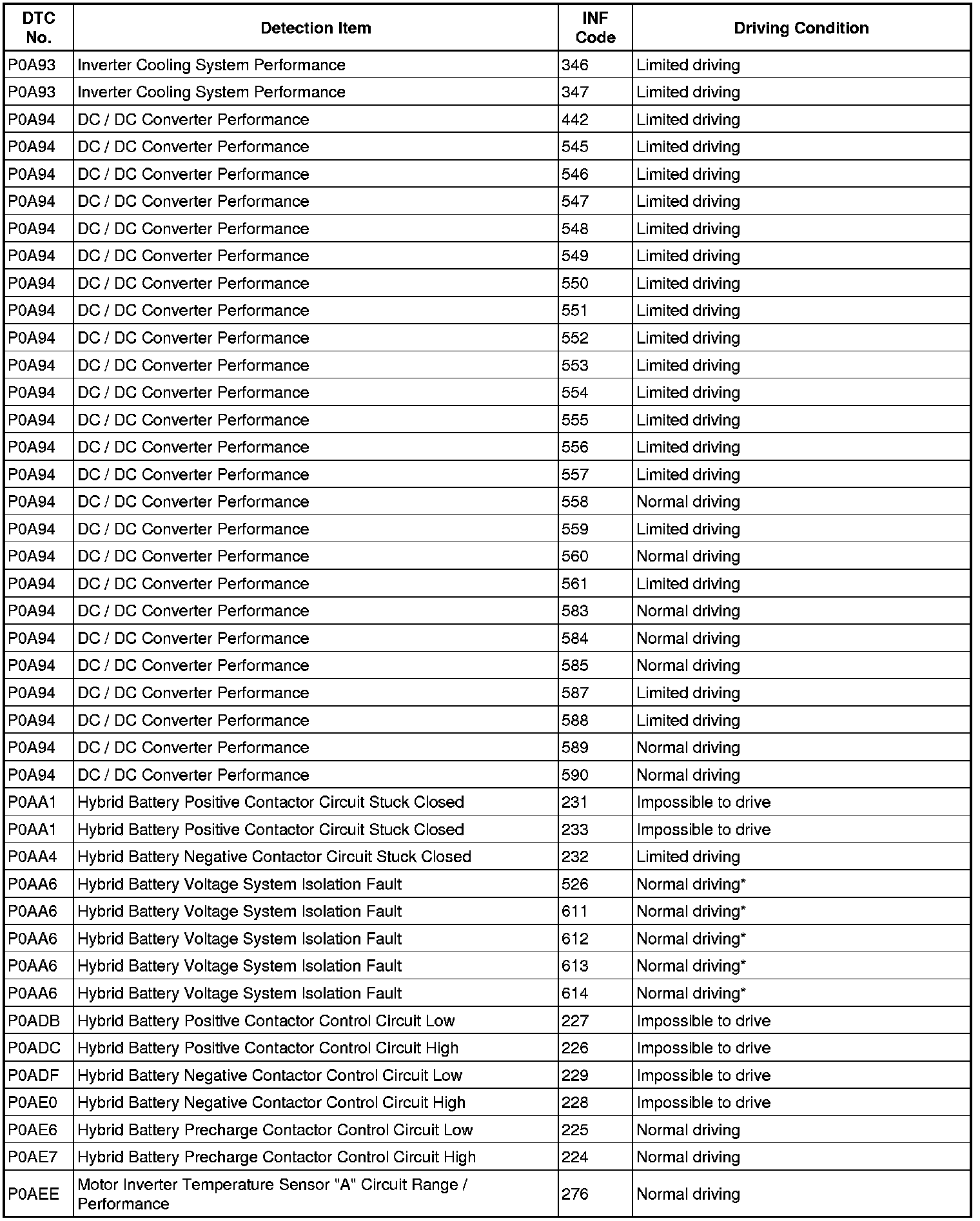

HINT: *: Normal driving occurs but turning the power switch OFF once causes driving to become impossible.
