Freeze Frame Data

P112 HYBRID BATTERY CONTROL: HYBRID BATTERY SYSTEM: FREEZE FRAME DATA

FREEZE FRAME DATA

1. FREEZE FRAME DATA
HINT: The freeze frame data records the operating conditions of the HV battery system and components when the DTC was set. It is used for estimating or simulating the condition of the vehicle when a malfunction occurred.

(a) Connect the Techstream to the DLC3.
(b) Turn the power switch ON (IG) and the tester ON.
(c) Enter the following menus: Powertrain / HV Battery / DTC.
(d) Select a DTC in order to display its freeze frame data.
(e) Check the freeze frame data of the DTC that has been detected.

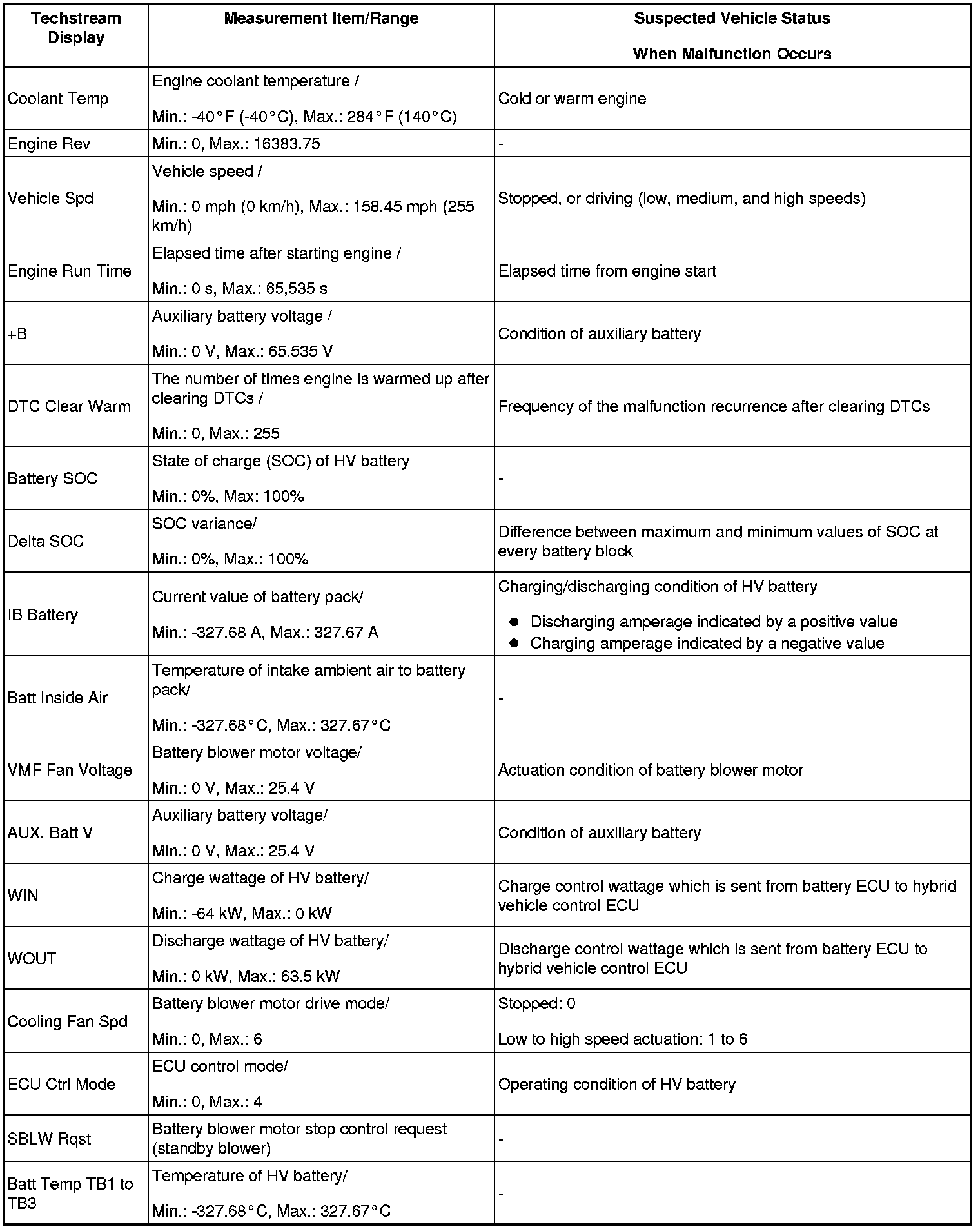

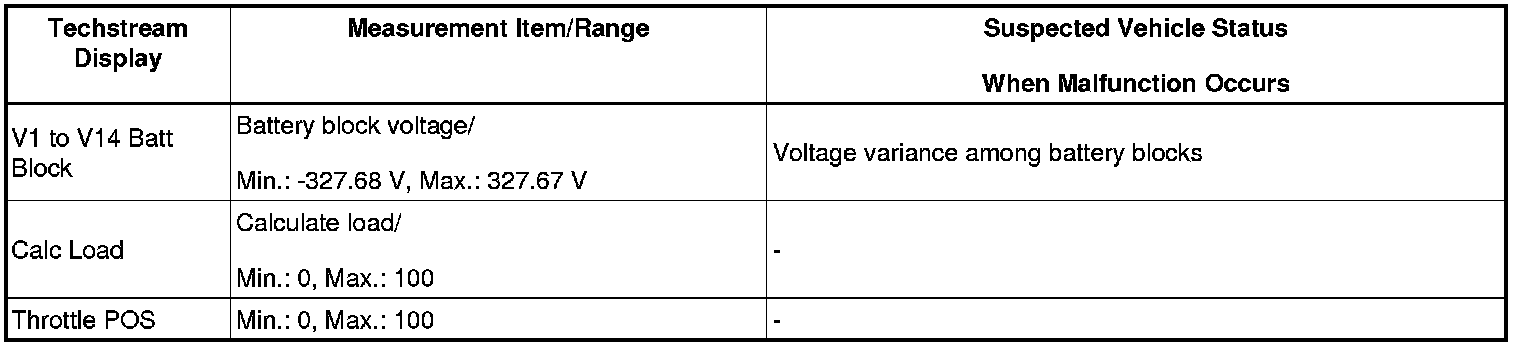

Freeze frame data
