Information / Freeze Frame Data

P112 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: INFORMATION / FREEZE FRAME DATA

INFORMATION / FREEZE FRAME DATA

1. FREEZE FRAME DATA
HINT: The freeze frame data records the driving condition when the DTC was set. It is used for estimating or simulating the condition of the vehicle when the malfunction occurred. To check the details of the hybrid vehicle control system, check the detailed information for the DTC (Information).

(a) Connect the Techstream to the DLC3.
(b) Turn the power switch ON (IG).
(c) Turn the Techstream ON.
(d) Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
(e) Select a DTC in order to display its freeze frame data.
(f) Check the freeze frame data of the DTC that has been detected.
(g) Check information of the DTC (see below).

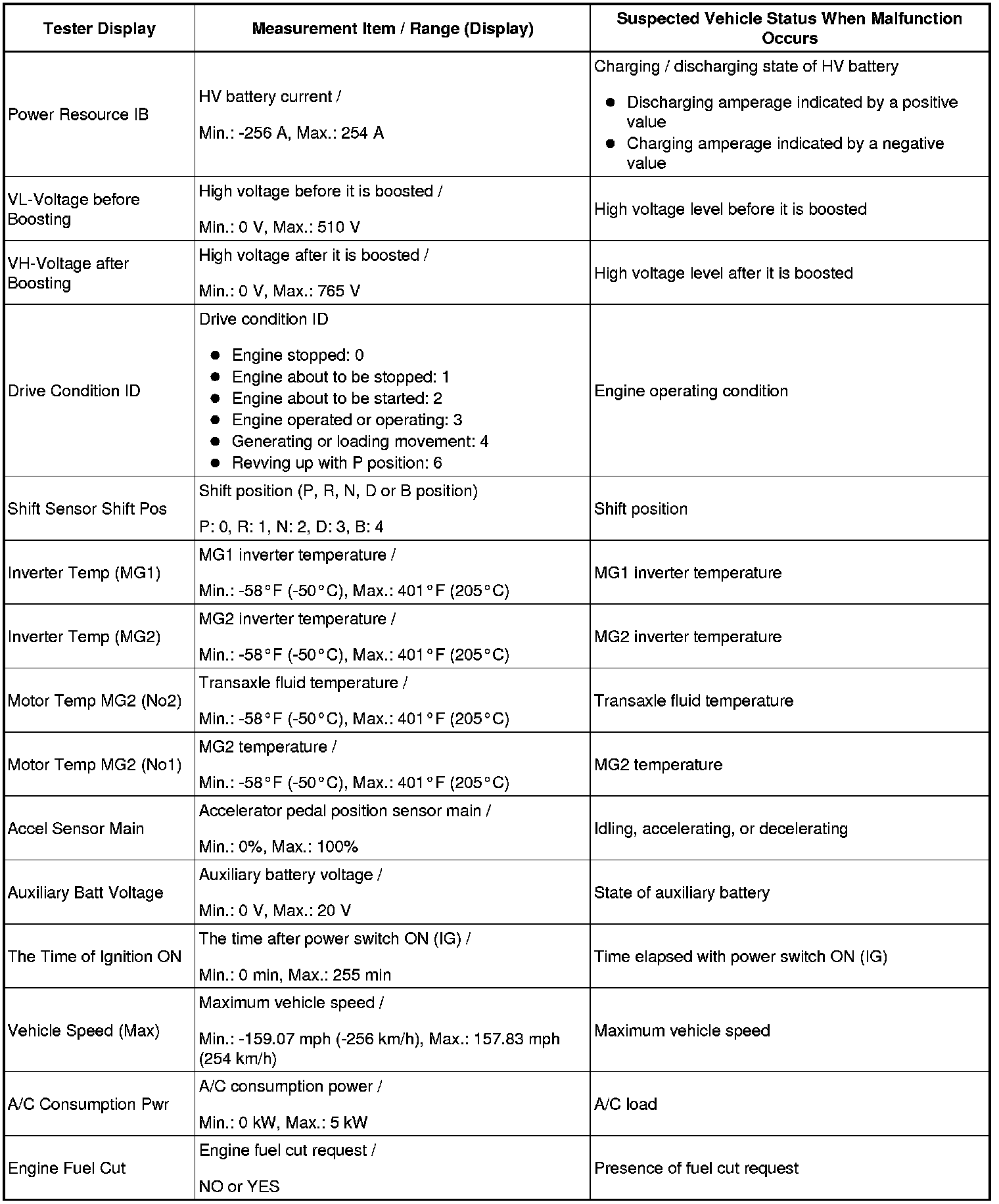

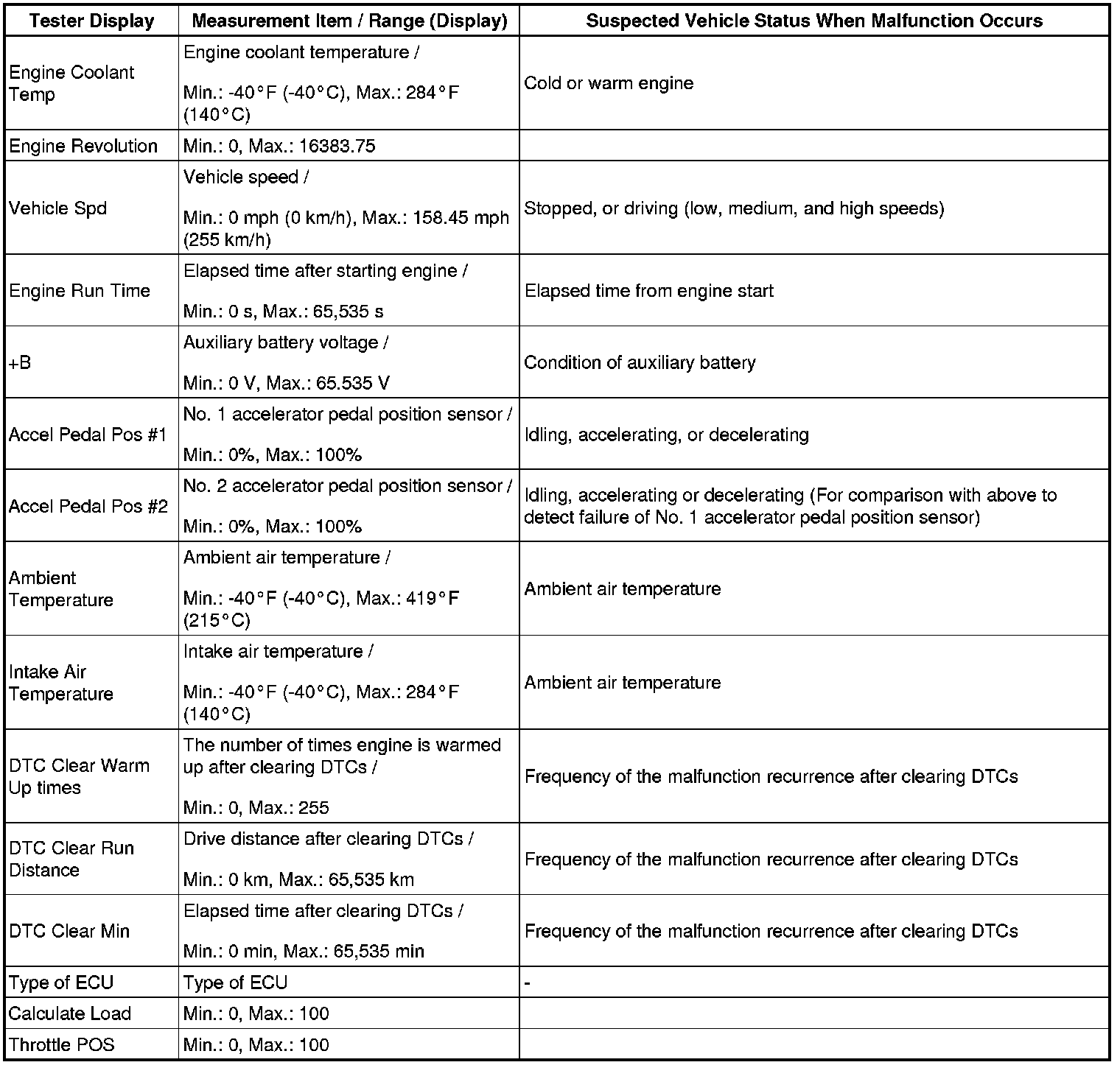

Freeze frame data:





2. INFORMATION
HINT: Similar to freeze frame data, information records operating condition of the HV system and components at the time of detection of a DTC.

(a) Select one which has an INF code from among INFORMATION 1 to 5.
(b) Check the information of the DTC.

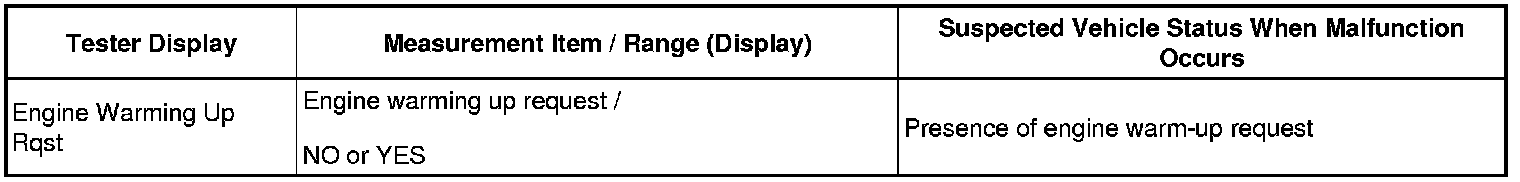

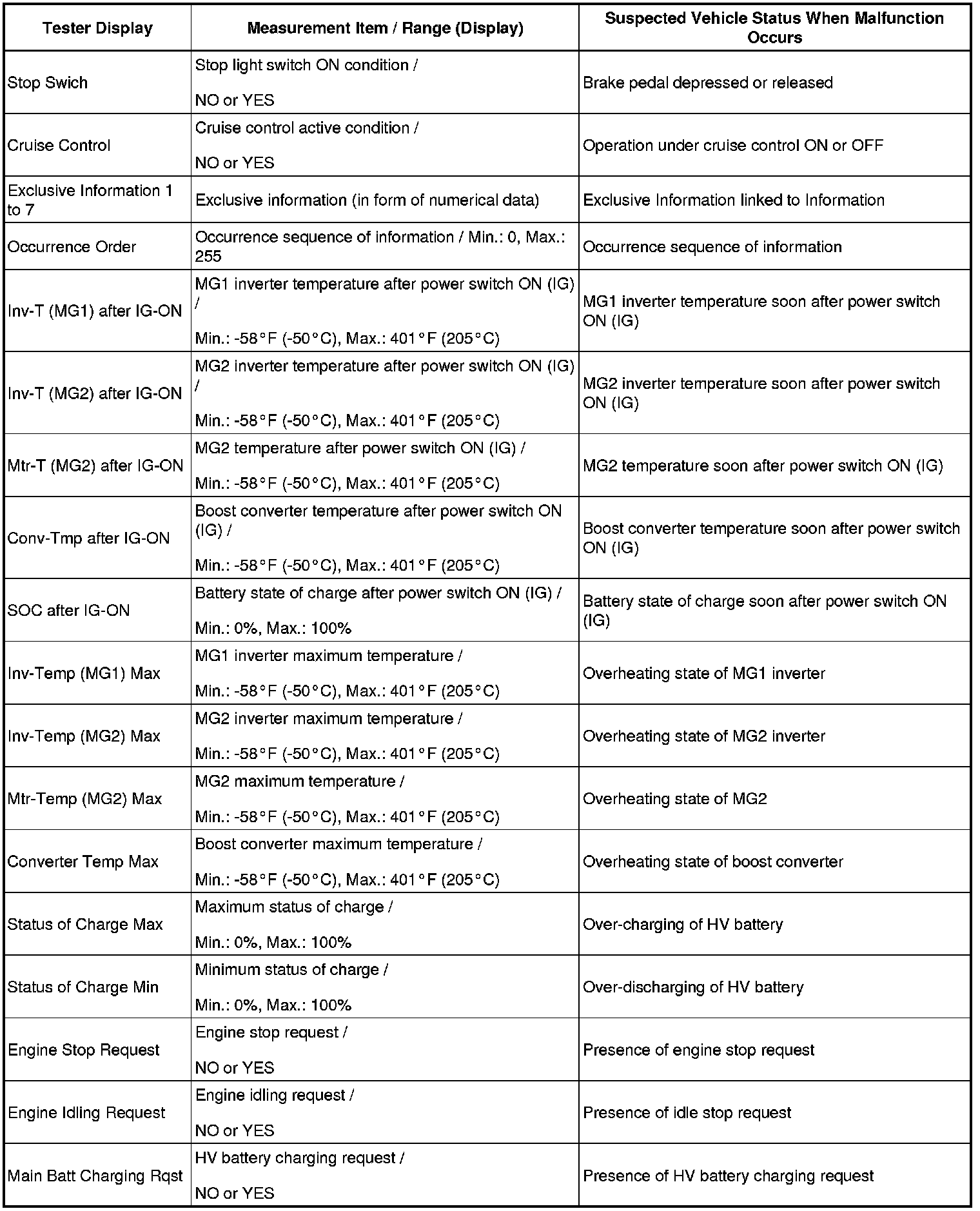

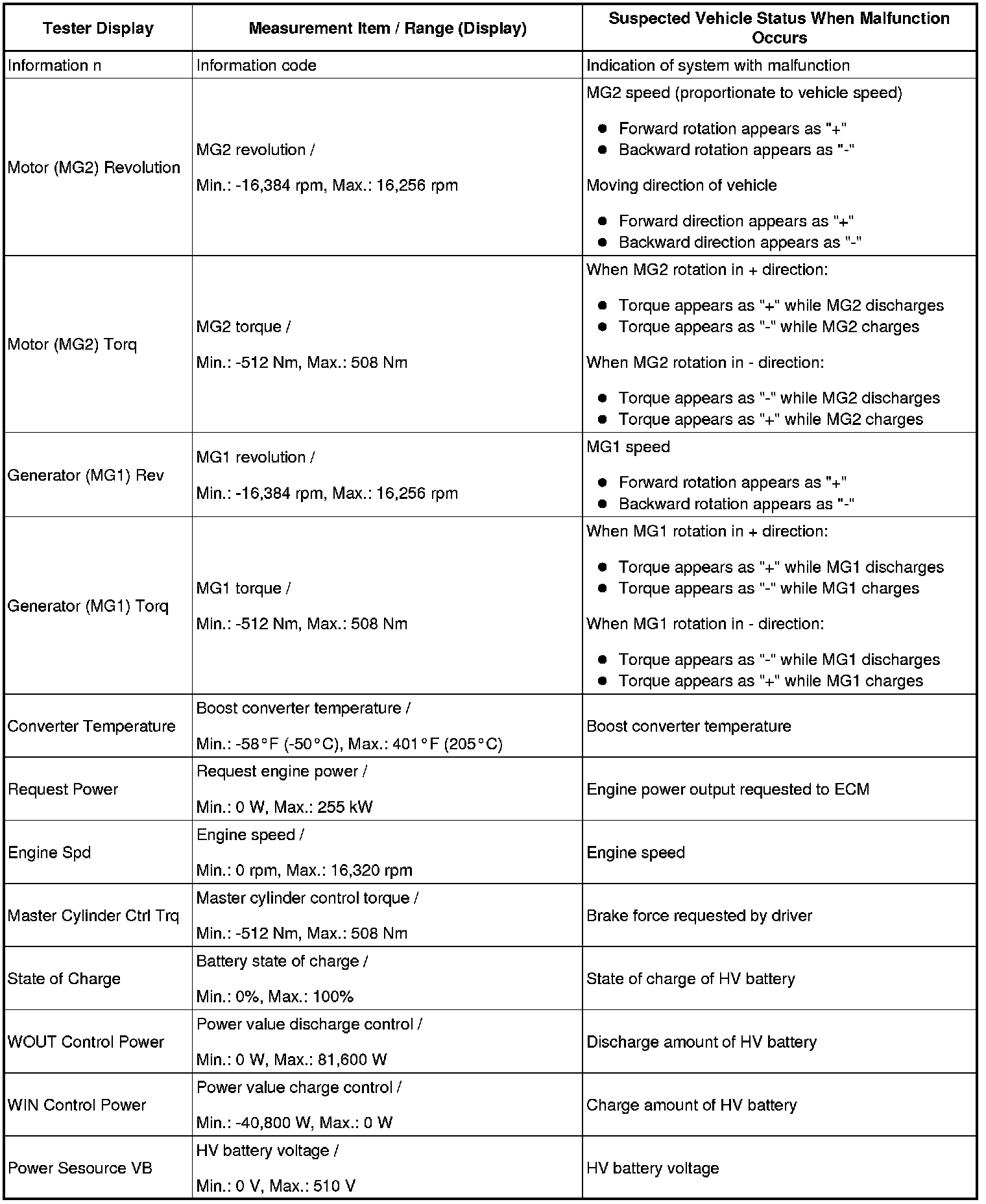

Information:
