Installation

OTHER SYSTEM: CLOCK: INSTALLATION

INSTALLATION





1. INSTALL CLOCK ASSEMBLY

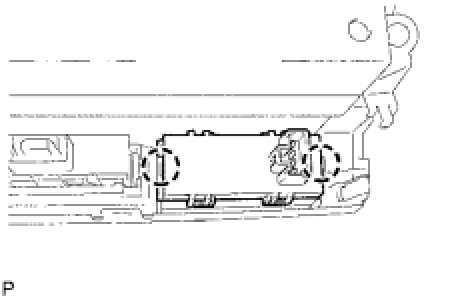

(a) Attach the 2 claws to install the clock.
2. INSTALL MULTI-DISPLAY ASSEMBLY
3. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
4. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation
5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation
6. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
7. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

10. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
