Removal

OTHER SYSTEM: CLOCK: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY Removal
3. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Removal
4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal
5. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal
6. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY Removal
7. REMOVE MULTI-DISPLAY ASSEMBLY





8. REMOVE CLOCK ASSEMBLY

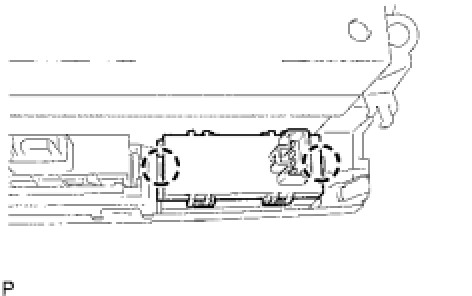

(a) Detach the 2 claws and remove the clock.
