Disassembly

METER: COMBINATION METER: DISASSEMBLY

DISASSEMBLY

1. REMOVE NO. 1 COMBINATION METER COVER

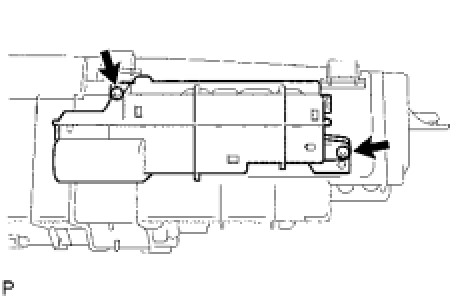

(a) Remove the 2 screws.

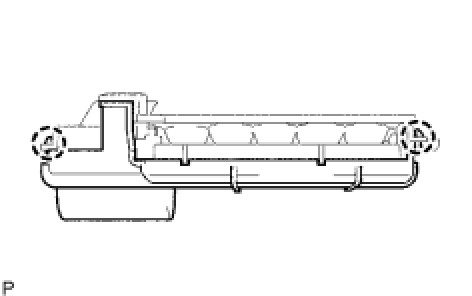

(b) Detach the 2 claws, and then remove the combination meter cover.
2. REMOVE METER CIRCUIT PLATE




NOTE: When disassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

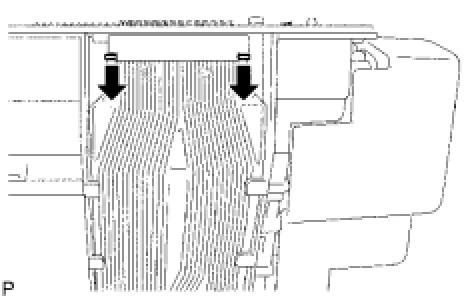

(a) Pull the connector lock in the direction indicated by the arrow in the illustration and separate the No. 3 meter circuit plate from the meter circuit plate.

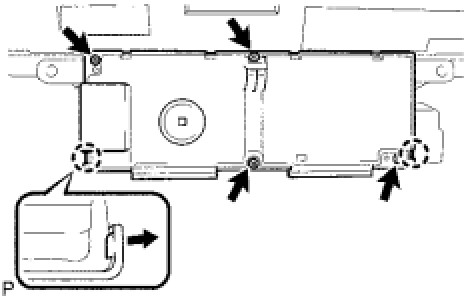

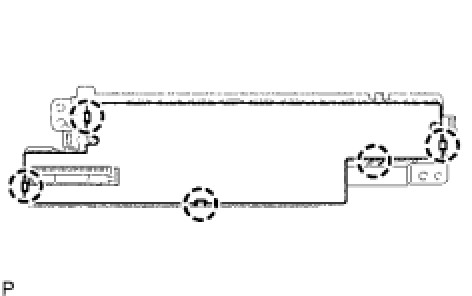

(b) Detach the 5 claws, and then remove the meter circuit plate.
3. REMOVE NO. 2 COMBINATION METER CASE
4. REMOVE NO. 2 COMBINATION METER COVER




NOTE: When disassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

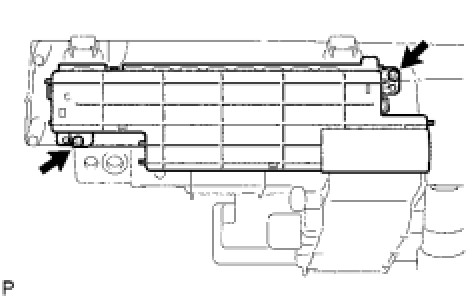

(a) Remove the 2 screws.

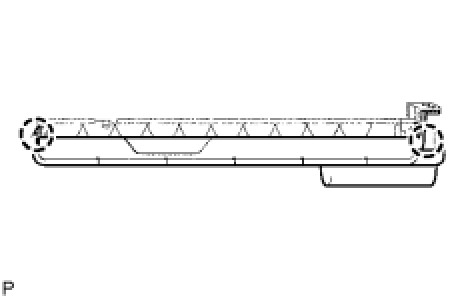

(b) Detach the 2 claws, and then remove the combination meter cover.
5. REMOVE NO. 2 METER CIRCUIT PLATE




NOTE: When disassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

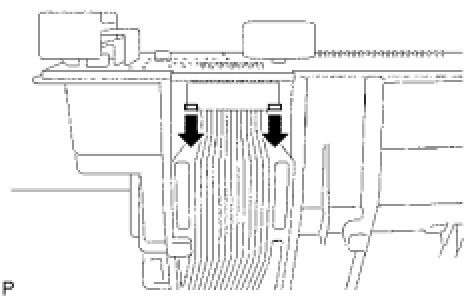

(a) Pull the connector lock in the direction indicated by the arrow in the illustration and separate the No. 4 meter circuit plate from the No. 2 meter circuit plate.

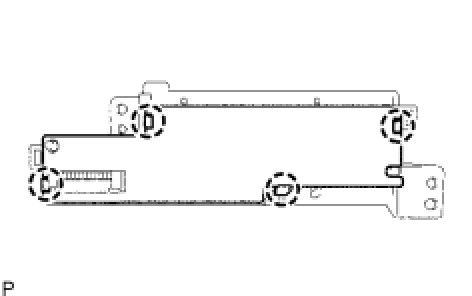

(b) Detach the 4 claws, and then remove the meter circuit plate.
6. REMOVE NO. 3 COMBINATION METER CASE
7. REMOVE NO. 1 COMBINATION METER REFLECTOR





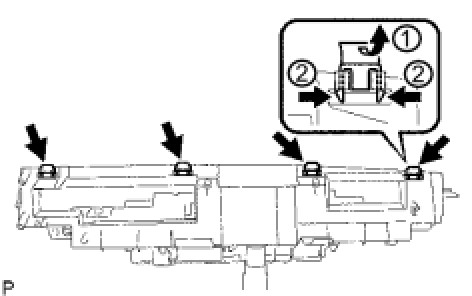

(a) Remove the 4 clips.

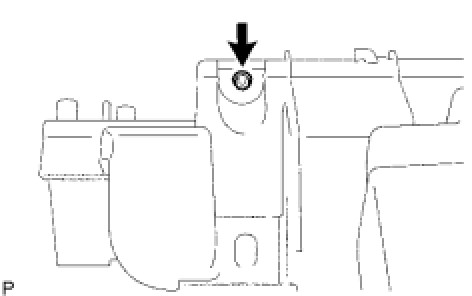

(b) Remove the screw and combination meter reflector.
8. REMOVE NO. 3 COMBINATION METER COVER





(a) Remove the 4 screws.
(b) Release the 2 claws of the cover, as shown in the illustration.
(c) Raise the cover from the bottom and remove the combination meter cover.
9. REMOVE NO. 3 METER CIRCUIT PLATE




NOTE: When disassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

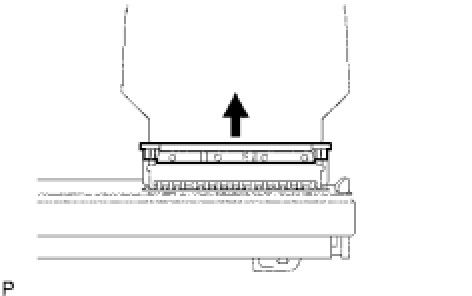

(a) Pull the connector lock in the direction indicated by the arrow in the illustration, and remove the meter circuit plate.
10. REMOVE NO. 4 METER CIRCUIT PLATE




NOTE: When disassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

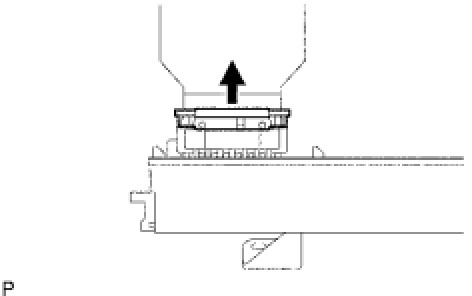

(a) Pull the connector lock in the direction indicated by the arrow in the illustration, and remove the meter circuit plate.
11. REMOVE COMBINATION METER CASE
