Reassembly

METER: COMBINATION METER: REASSEMBLY

REASSEMBLY

1. INSTALL COMBINATION METER CASE

2. INSTALL NO. 4 METER CIRCUIT PLATE
NOTE: When reassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

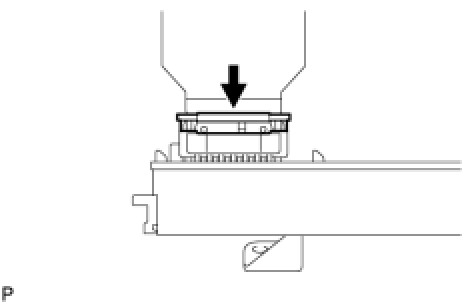

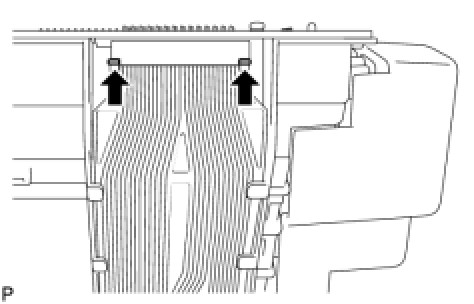

(a) Push the connector lock in the direction indicated by the arrow in the illustration, and install the meter circuit plate.

3. INSTALL NO. 3 METER CIRCUIT PLATE
NOTE: When reassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

(a) Push the connector lock in the direction indicated by the arrow in the illustration, and install the meter circuit plate.

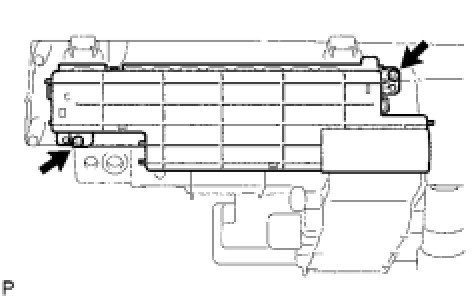

4. INSTALL NO. 3 COMBINATION METER COVER

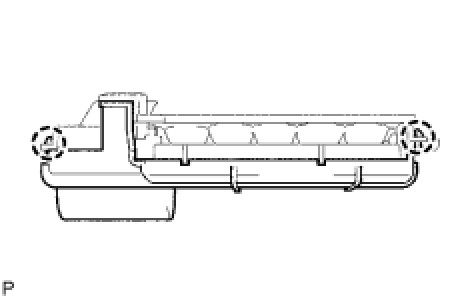

(a) Attach the 2 claws to install the combination meter cover.
(b) Install the 4 screws.

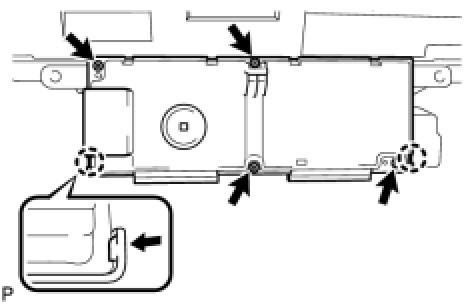

5. INSTALL NO. 1 COMBINATION METER REFLECTOR

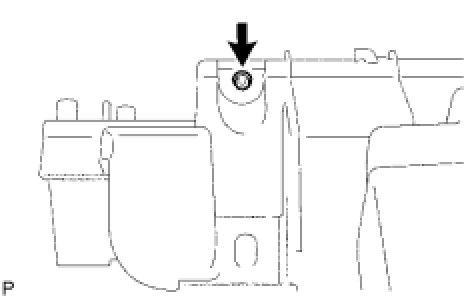

(a) Install the combination reflector with the screw.

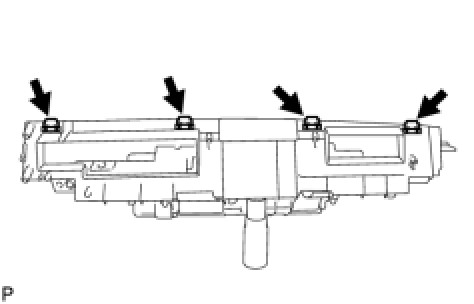

(b) Install the 4 clips.
6. INSTALL NO. 3 COMBINATION METER CASE
7. INSTALL NO. 2 METER CIRCUIT PLATE

NOTE: When reassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

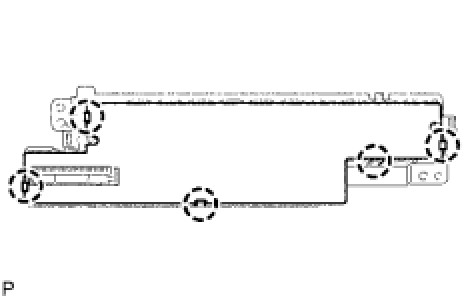

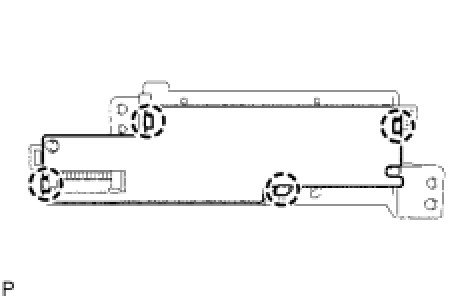

(a) Attach the 4 claws to install the meter circuit plate.

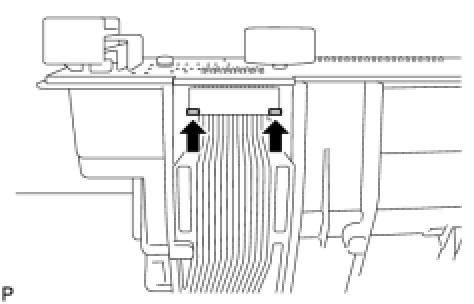

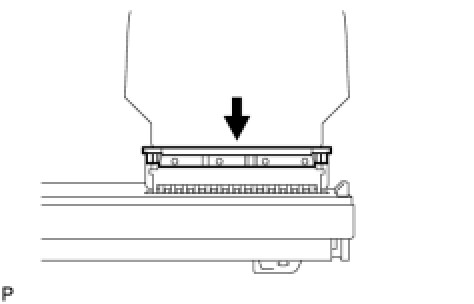

(b) Push the connector lock in the direction indicated by the arrow in the illustration and install the No. 4 meter circuit plate from the No. 2 meter circuit plate.

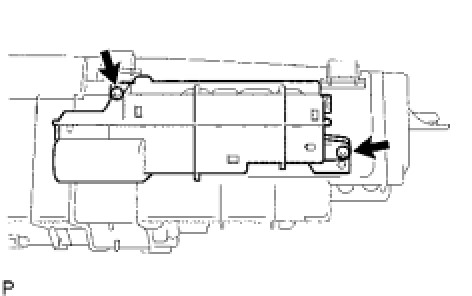

8. INSTALL NO. 2 COMBINATION METER COVER

(b) Install the 2 screws.
9. INSTALL NO. 2 COMBINATION METER CASE
10. INSTALL METER CIRCUIT PLATE

(b) Push the connector lock in the direction indicated by the arrow in the illustration and install the No. 3 meter circuit plate to the meter circuit plate.
11. INSTALL NO. 1 COMBINATION METER COVER

(a) Attach the 2 claws to install the combination meter cover.

(b) Install the 2 screws.
