Meter / Gauge System

METER: METER / GAUGE SYSTEM: PRECAUTION

PRECAUTION

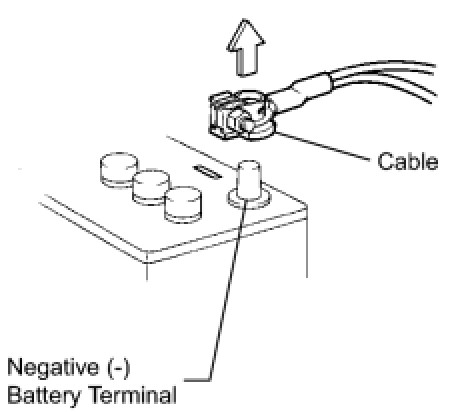

1. REMOVAL AND INSTALLATION OF BATTERY TERMINAL CABLE
(a) Before performing electronic work, disconnect the battery negative (-) terminal cable in order to prevent it from shorting and burning out.
(b) When disconnecting and reconnecting the battery cable, turn the power switch OFF and headlight dimmer switch OFF. Then loosen the terminal nut completely. Be careful not to damage the cable or terminal.
(c) When the battery terminal cable is removed, the memories of the clock, radio, DTCs, etc. are erased. So before removing it, check and make a note of them.
NOTE: When disconnecting the cable from the negative (-) battery terminal, initialize the following system(s) after the cable is reconnected.





2. FOR HYBRID SYSTEM ACTIVATION
(a) When the warning light is illuminated or the battery has been disconnected and reconnected, pressing the power switch may not start the system on the first try. If so, press the power switch again.
(b) With the power switch's power mode changed to ON (IG), disconnect the battery. If the key is not in the key slot during reconnection, DTC B2799 may be output.
