Meter / Gauge System

METER: METER / GAUGE SYSTEM: TERMINALS OF ECU

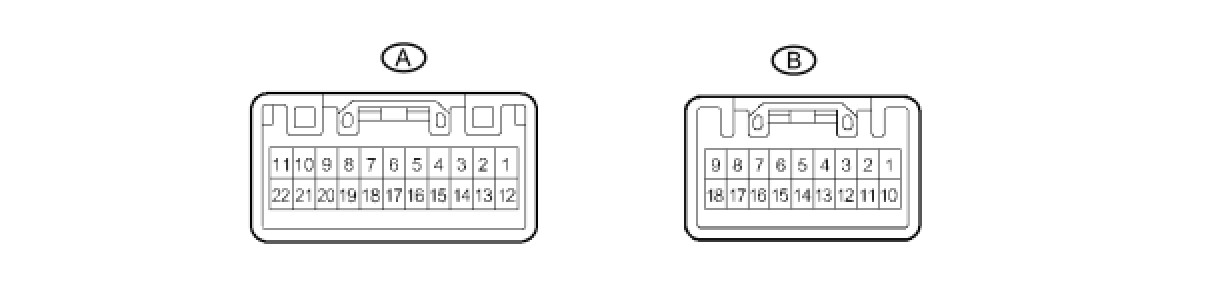

TERMINALS OF ECU

1. CHECK COMBINATION METER (METER ECU)

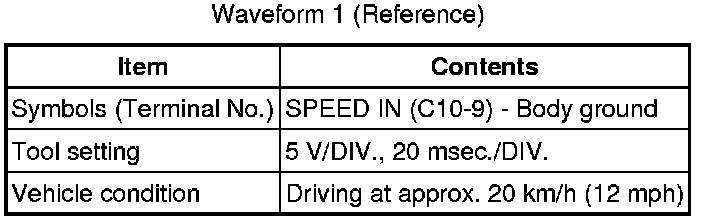

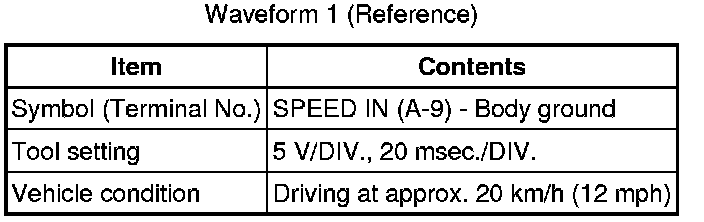

(a) Using an oscilloscope, check the signal waveform 1 of the meter.





HINT: As vehicle speed increases, the wavelength shortens.

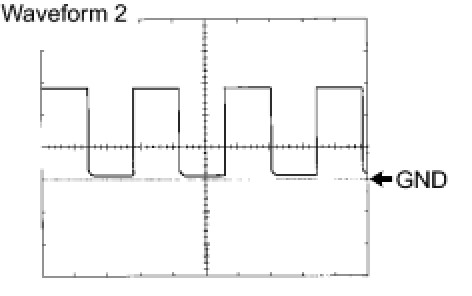

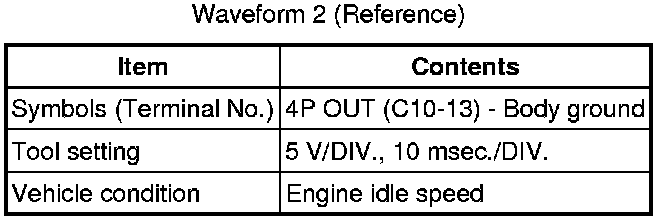

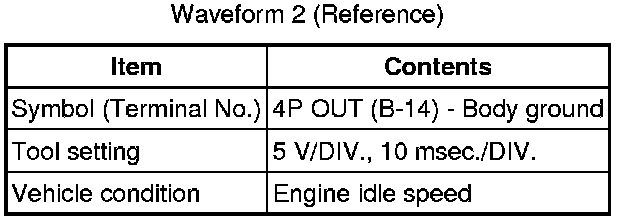

(b) Using an oscilloscope, check the signal waveform 2 of the meter.





HINT: As vehicle speed increases, the wavelength shortens.

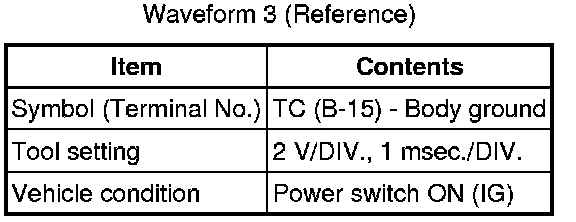

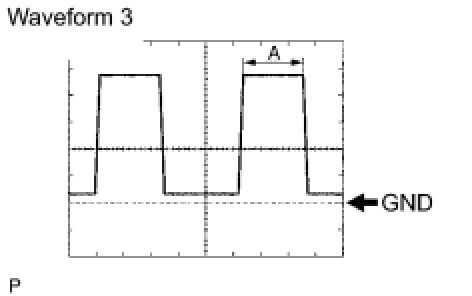

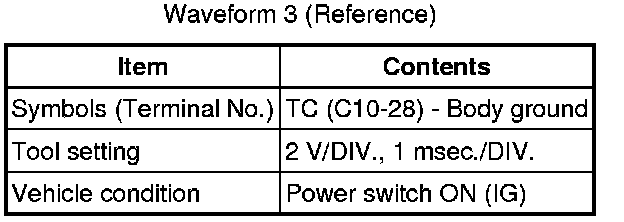

(c) Using an oscilloscope, check the signal waveform 3 of the meter.





HINT: Waveform changes as illumination dims ("A" becomes longer).

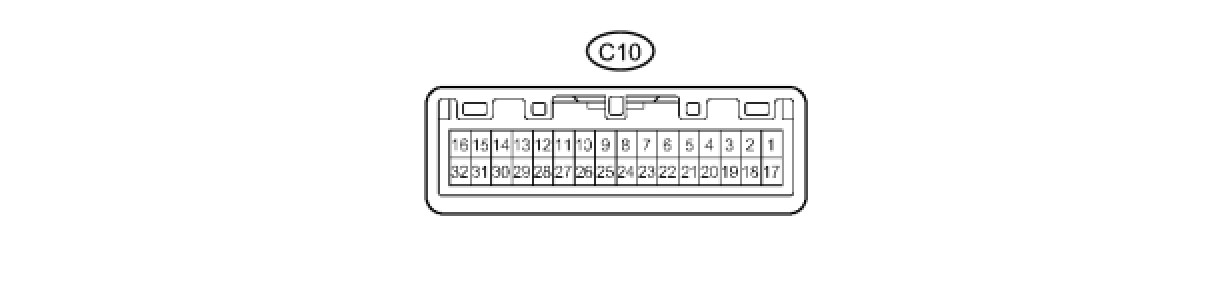

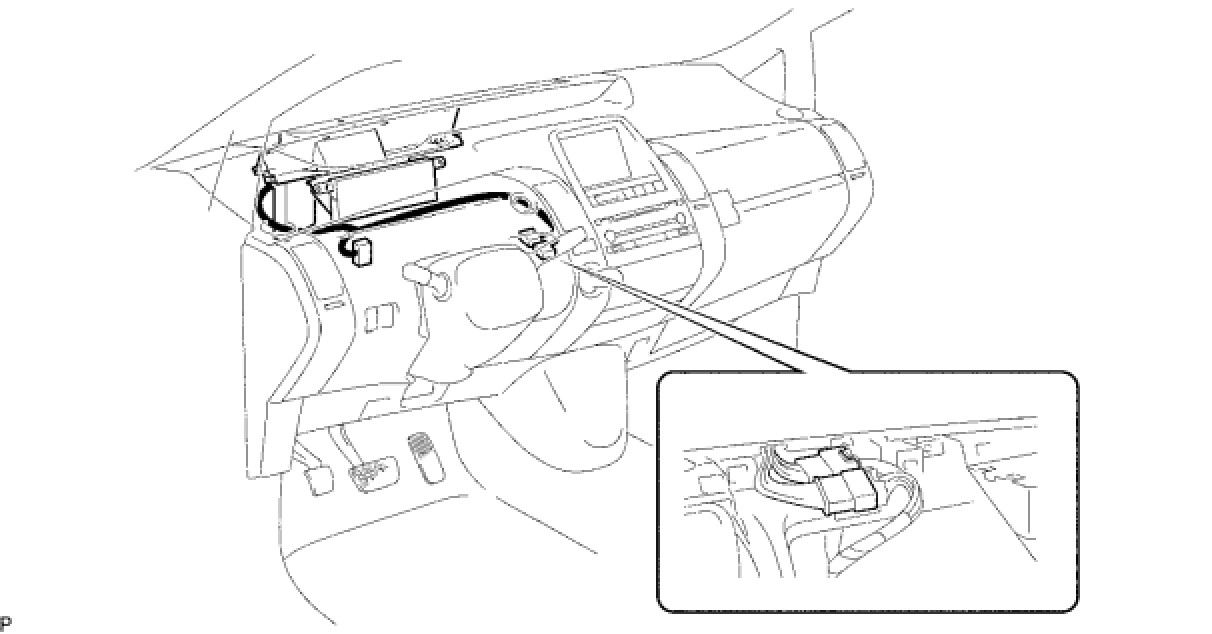

2. CHECK SUB WIRE HARNESS CONNECTOR





















(a) Using an oscilloscope, check the signal waveform 1 of the meter.





HINT: As vehicle speed increases, the wavelength shortens.





(b) Using an oscilloscope, check the signal waveform 2 of the meter.





HINT: As vehicle speed increases, the wavelength shortens.





(c) Using an oscilloscope, check the signal waveform 3 of the meter.





HINT: Waveform changes as illumination dims ("A" becomes longer).

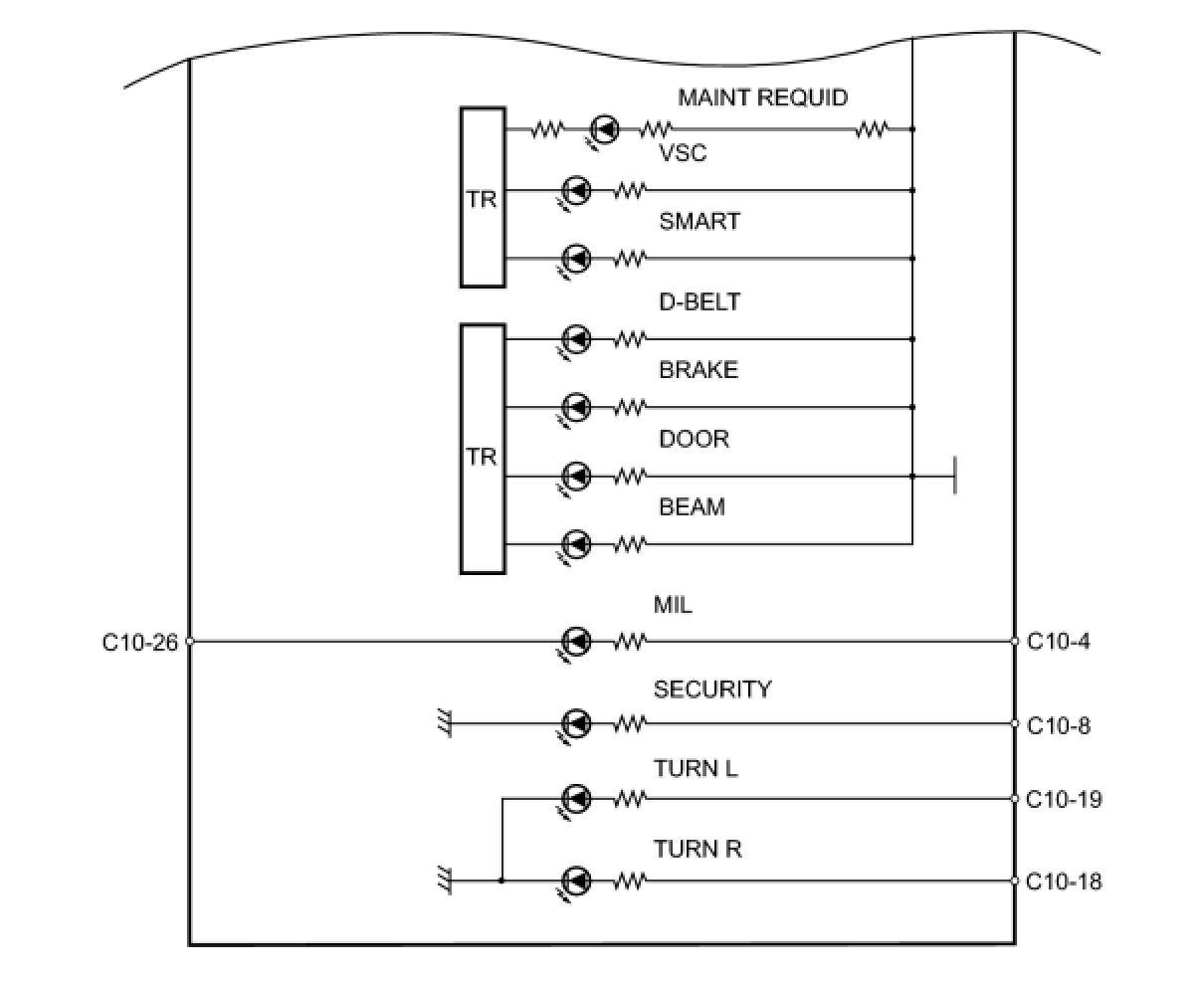

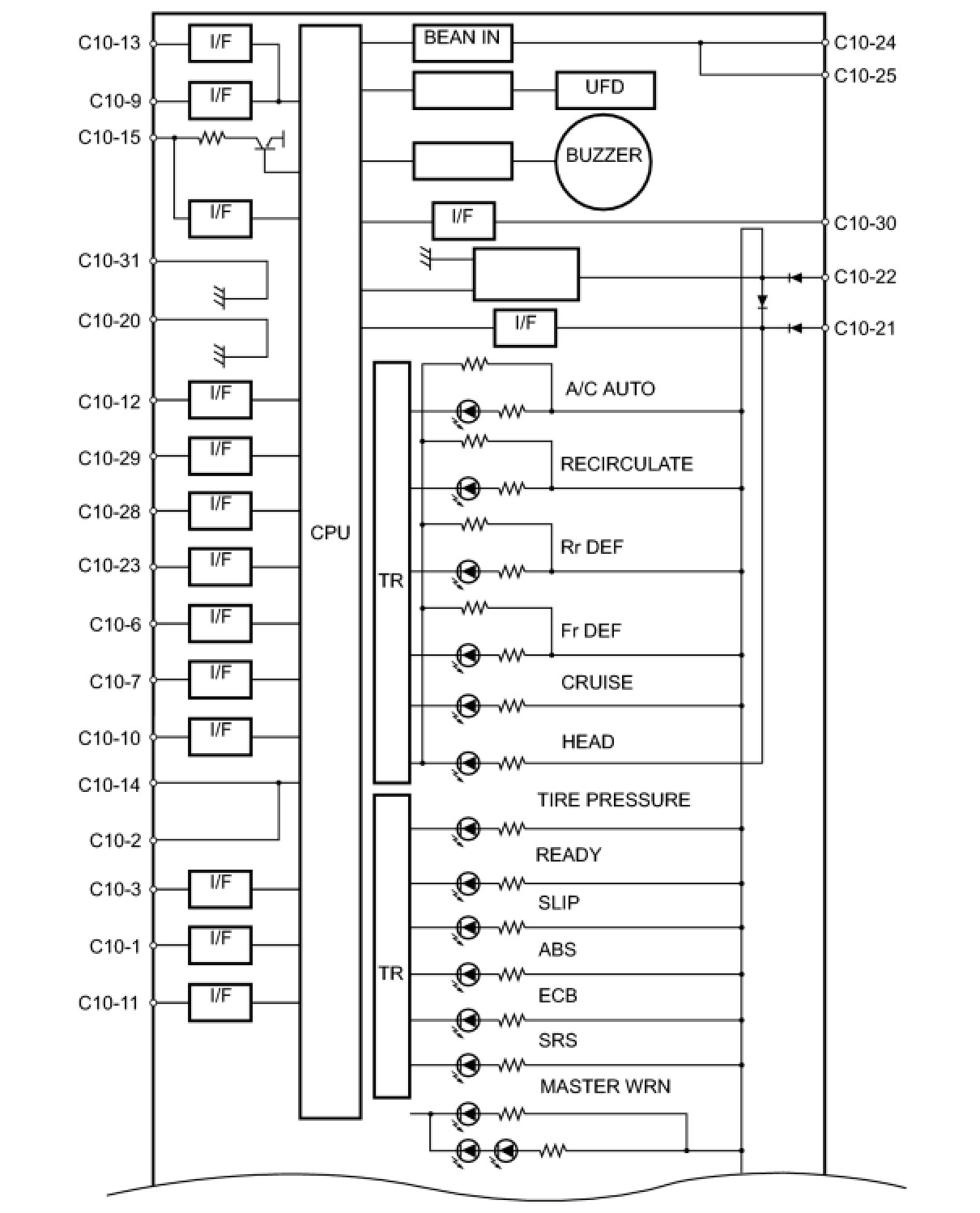

3. COMBINATION METER INNER CIRCUIT

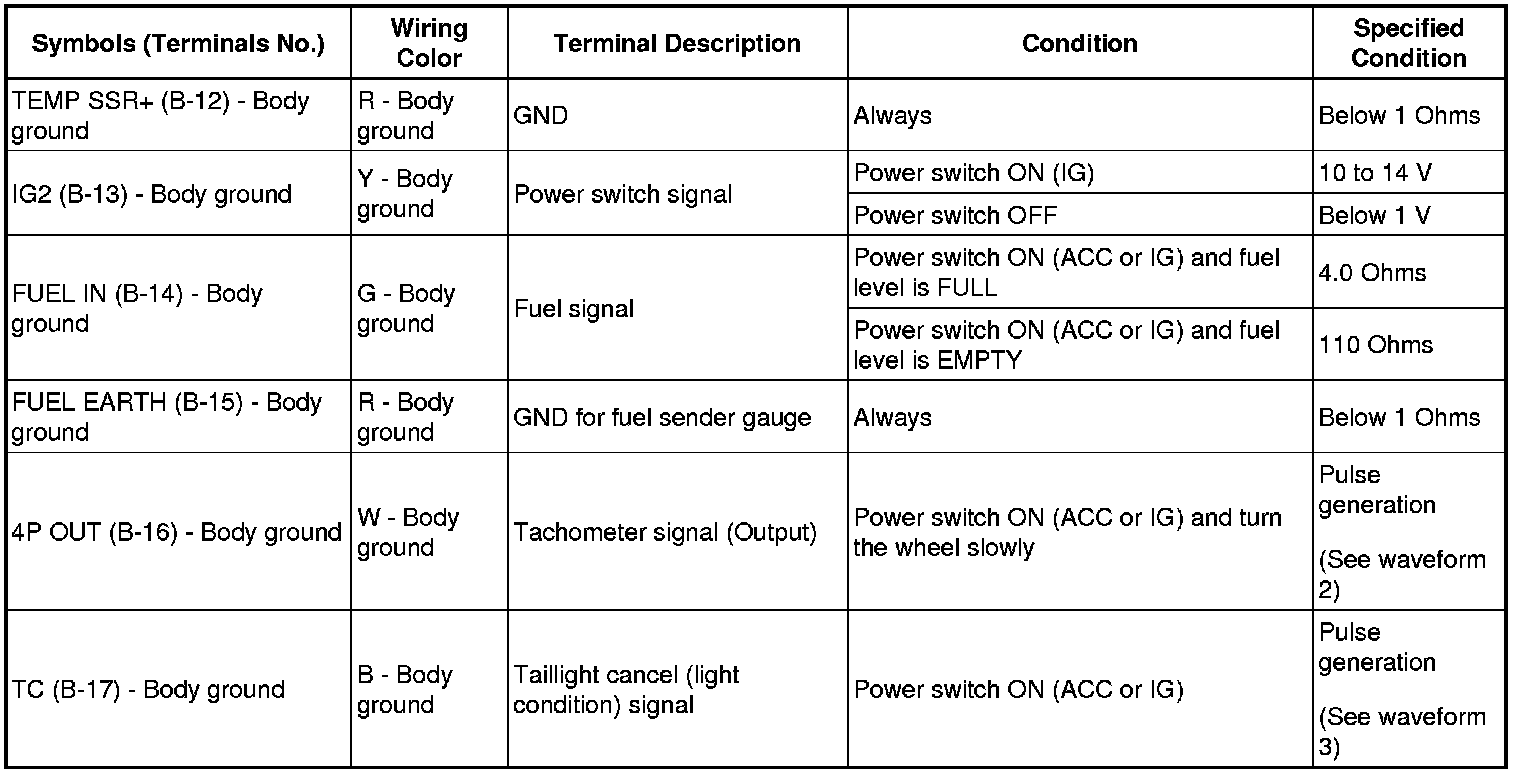

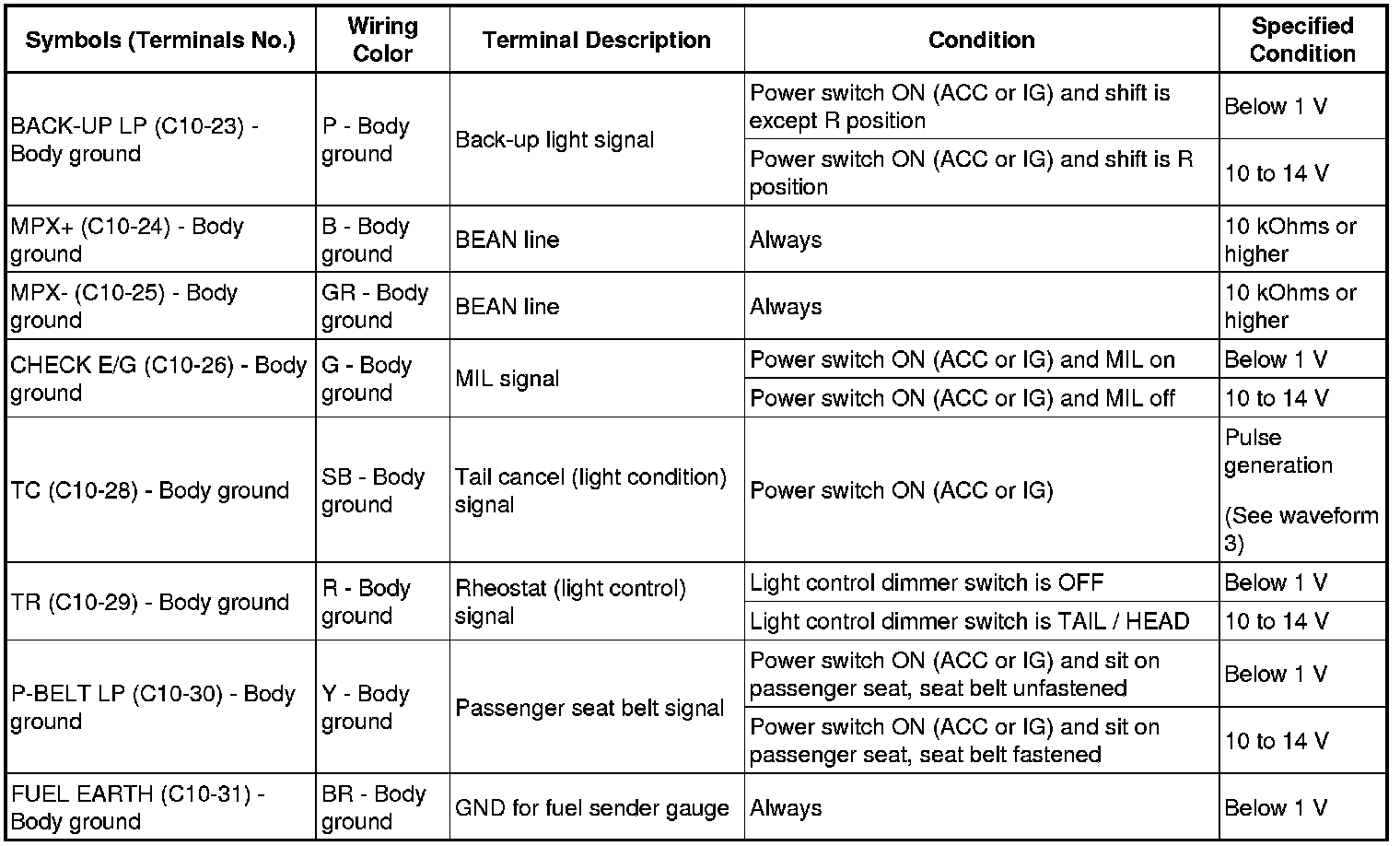

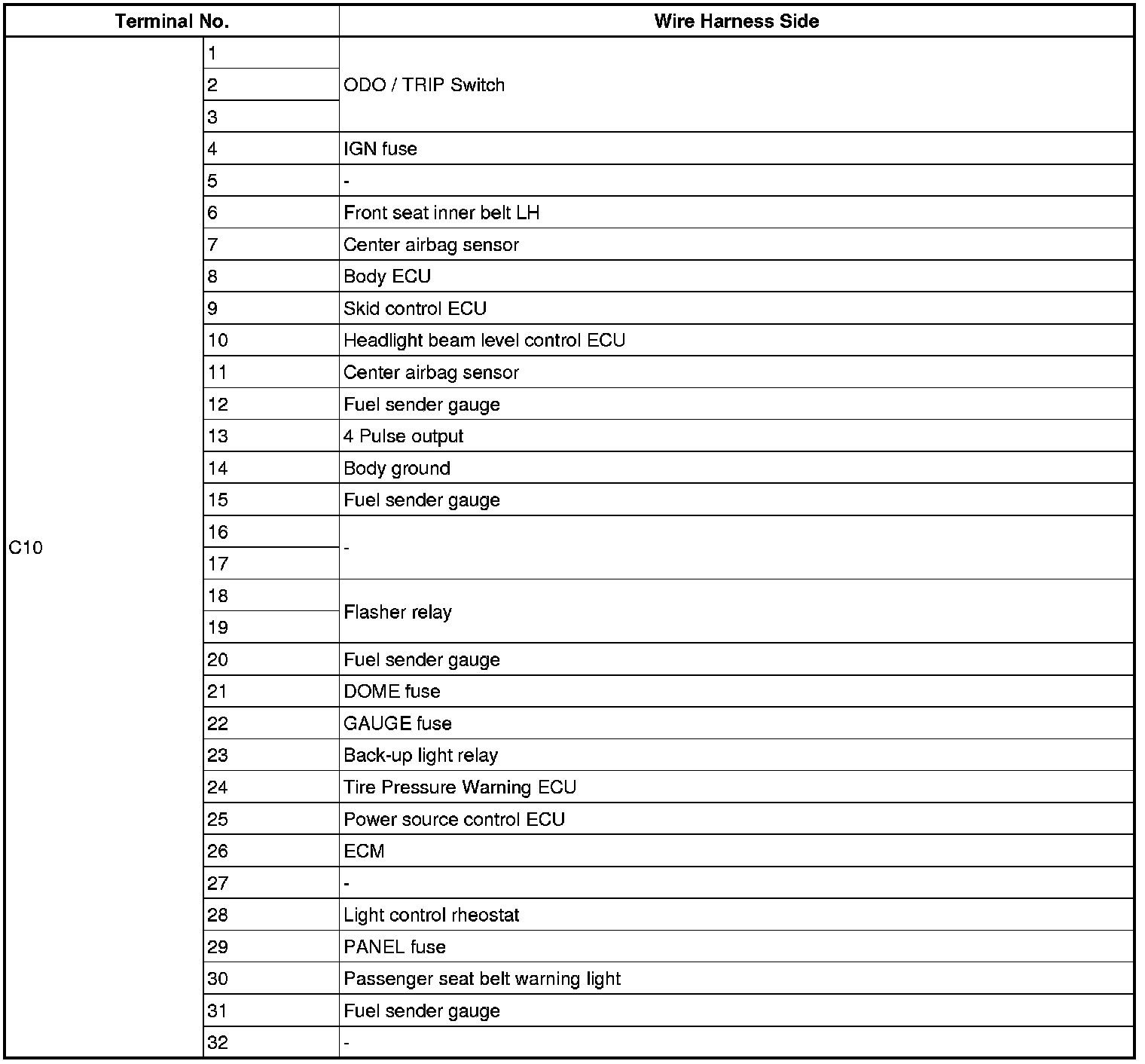

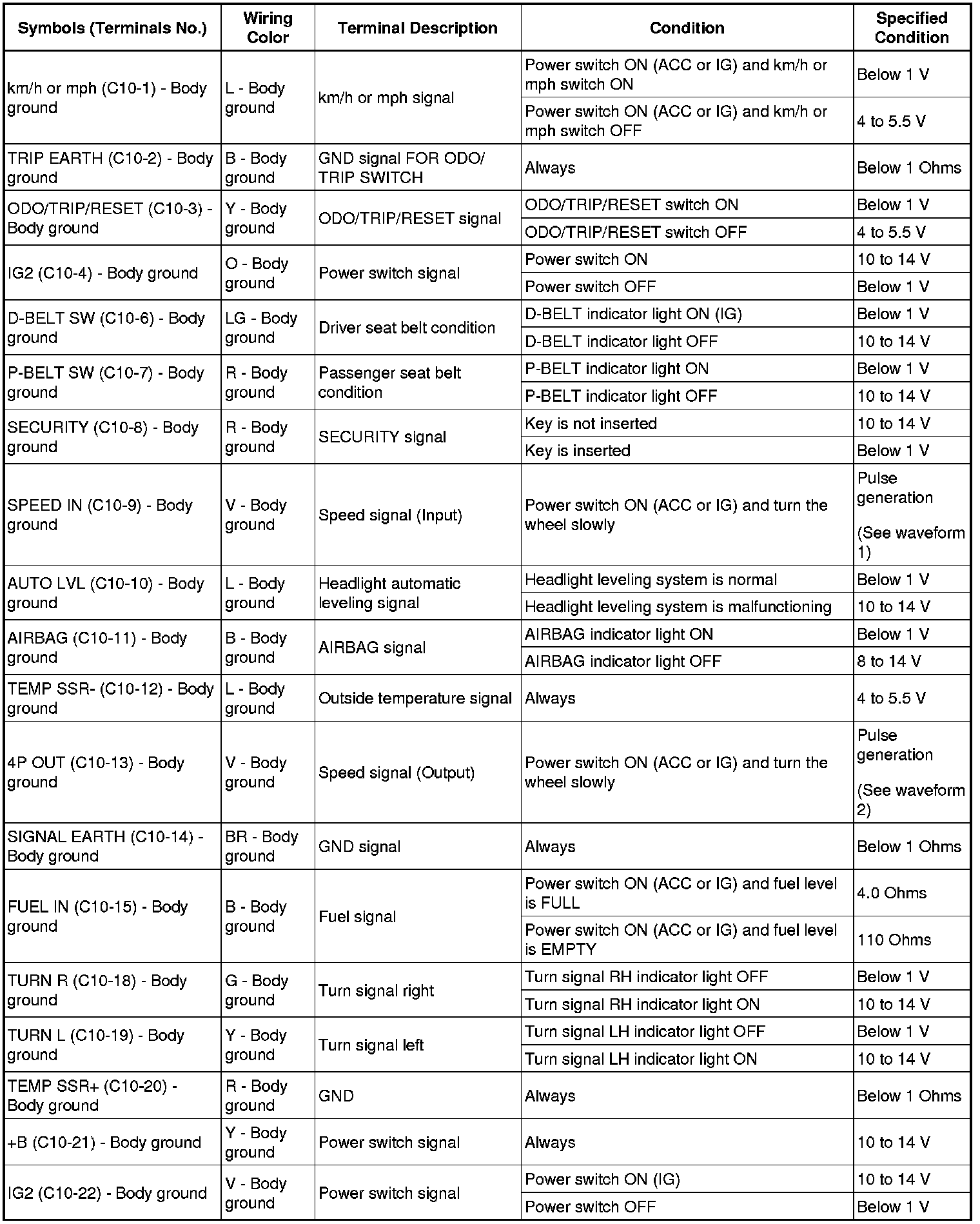

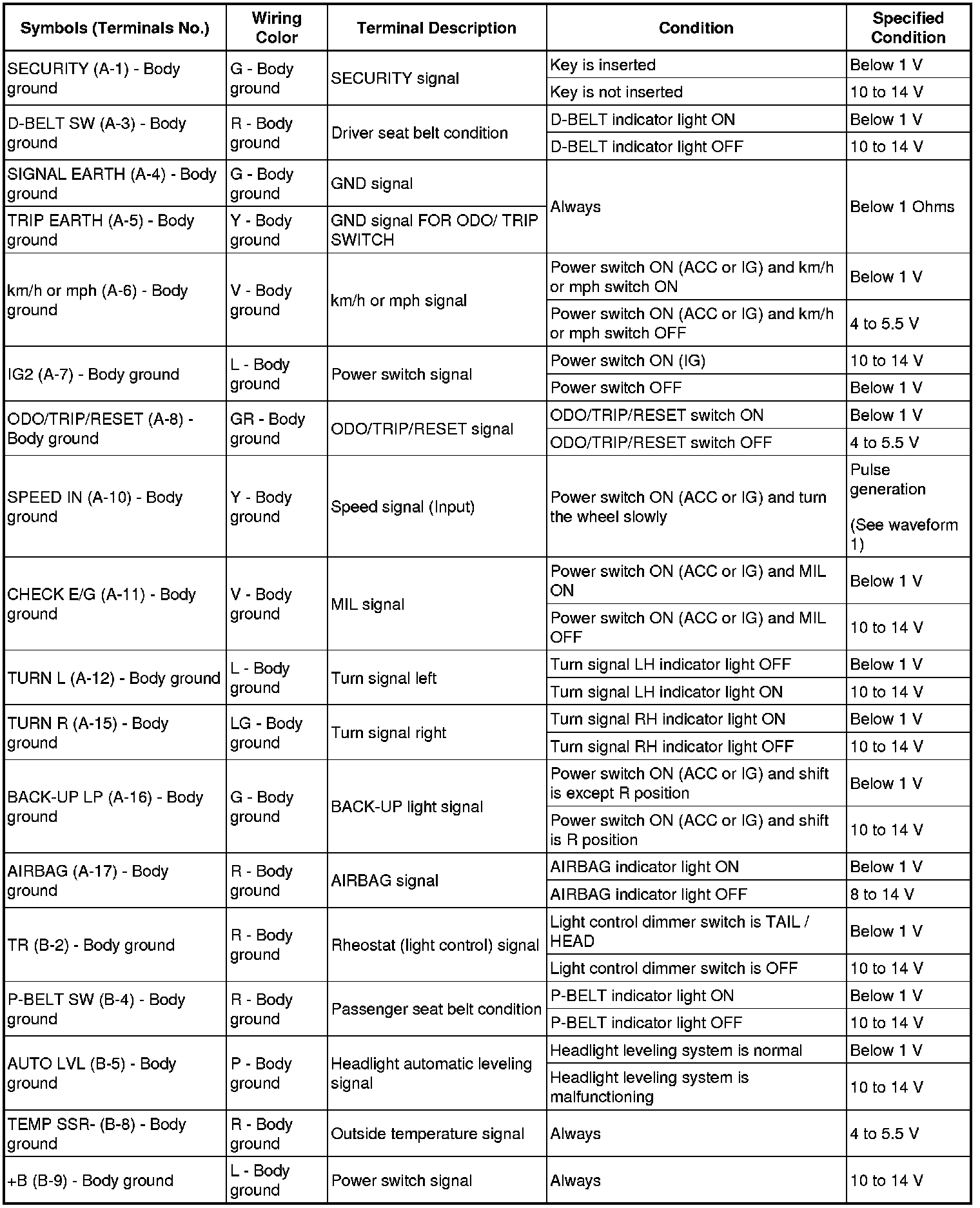

Table of Terminal Connection
