Programming and Relearning

METER: METER / GAUGE SYSTEM: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS
NOTE: Basically, these buzzers should be set on for safety driving. However, only if it is necessary to set the buzzer off for some reason, perform the following procedures.

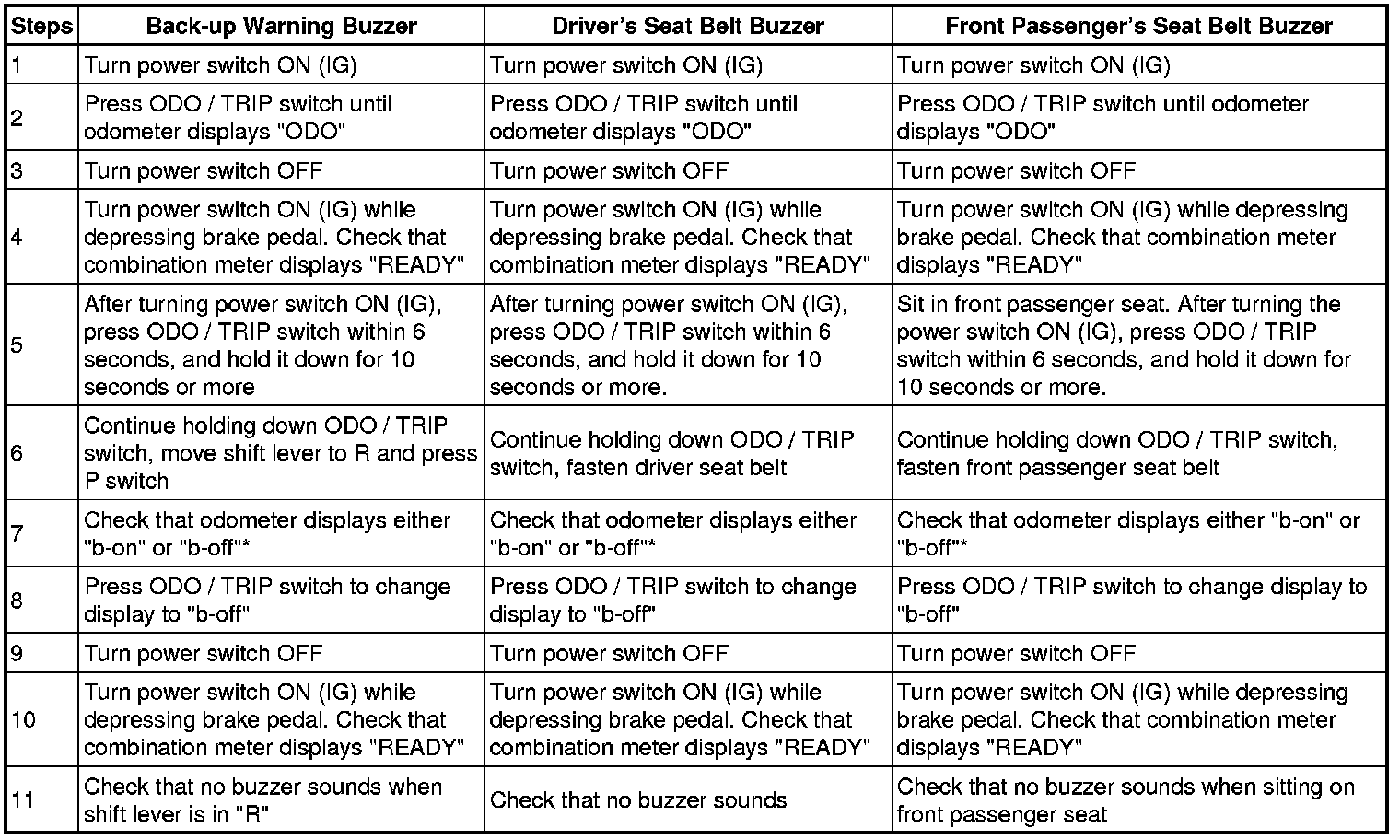

Procedure





HINT: *: "b-off" indicates that the buzzer is OFF. "b-on" indicates that the buzzer is ON. The buzzer cancel setting will be finished (the odometer will display "ODO") if the ODO / TRIP switch is not operated for 10 seconds or more. In this case, perform step 11 to check that buzzer cancel setting is complete. If it is not complete, start from step 1 again.
NOTE: When either the battery cable or the combination meter connector is disconnected, these buzzers are set on.
