Meter / Gauge System

METER: METER / GAUGE SYSTEM: DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST

1. READ DATA LIST
HINT: Using the Techstream's Data List allows switch, actuator and other item values to be read without removing any parts. Reading the Data List early in troubleshooting is one way to save time.

(a) Connect the Techstream to the DLC3.
(b) Turn the power switch ON (IG).
(c) Turn the Techstream ON.
(d) Enter the following menus:
(1) for Engine and ECT: Powertrain / Engine and ECT / Data List.
(2) for ABS/VSC/TRAC: Chassis / ABS/VSC/TRAC / Data List.
(e) Read the Data List according to the display on the tester.

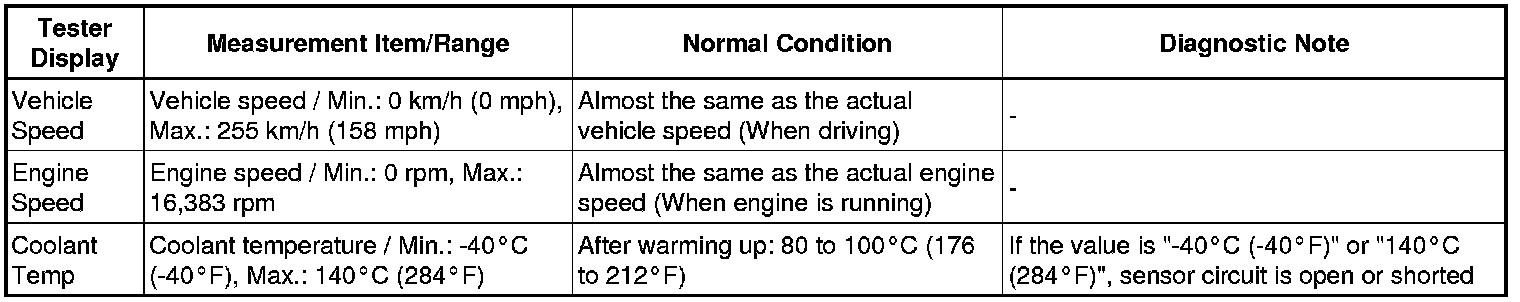

Engine and ECT

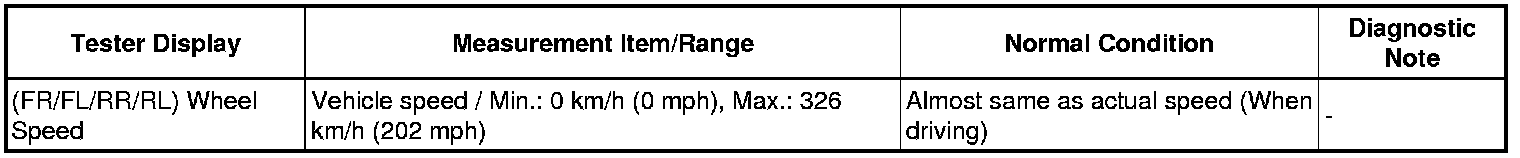

ABS/VSC/TRAC
