Entire Combination Meter Does Not Operate

METER: METER / GAUGE SYSTEM: Entire Combination Meter does not Operate

Entire Combination Meter does not Operate

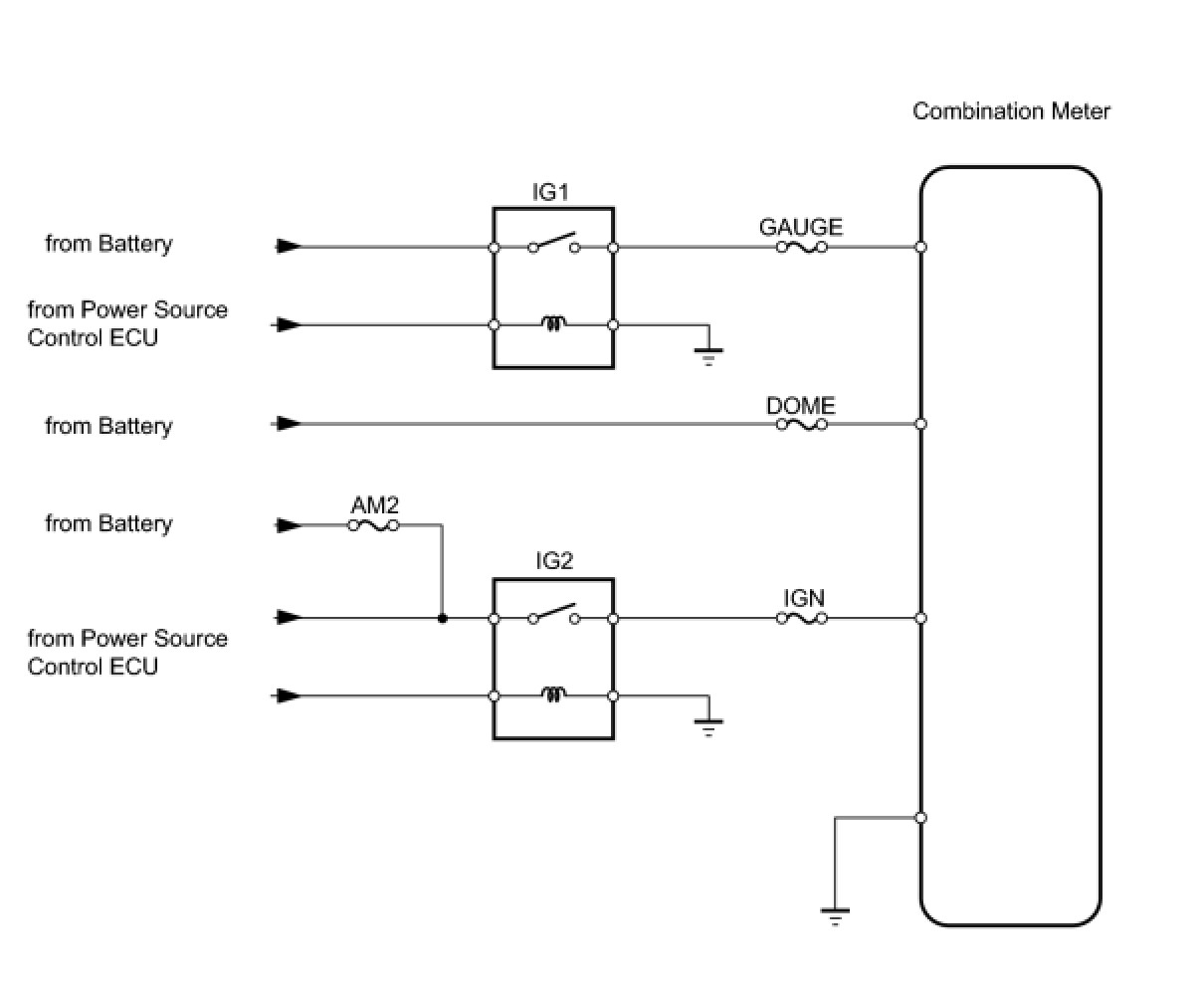

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (METER - BATTERY AND BODY GROUND)

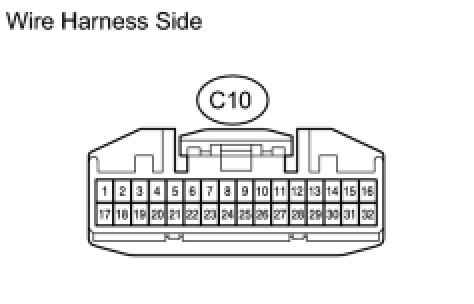

(a) Disconnect the C10 meter connector.
(b) Measure the voltage of the wire harness side connector.

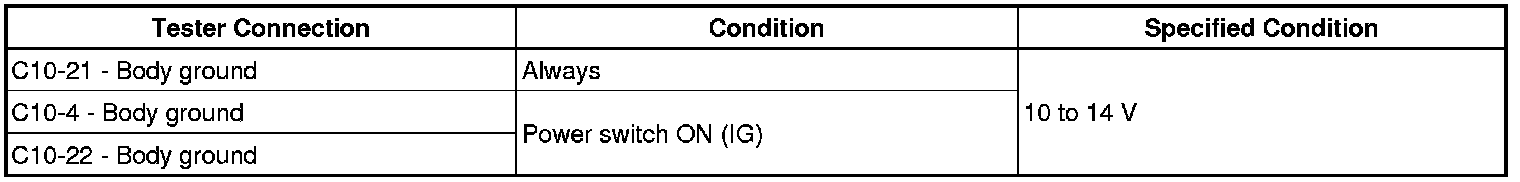

Standard voltage:





(c) Measure the resistance of the wire harness side connector.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE COMBINATION METER ASSEMBLY
