Problem Symptoms Table

METER: METER / GAUGE SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE
HINT:
- Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
- Inspect the fuses and relays related to this system before inspecting the suspected areas below.

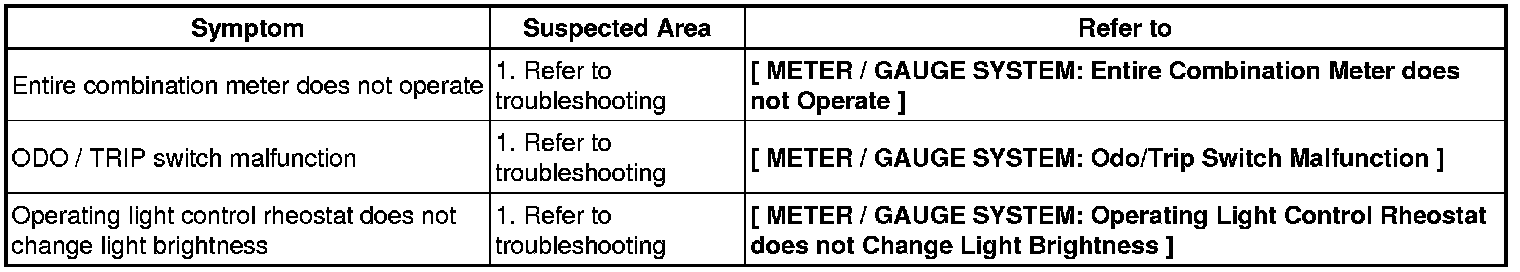

Malfunction system

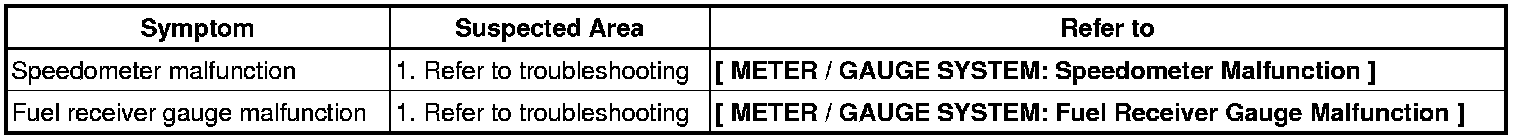

Meter gauges

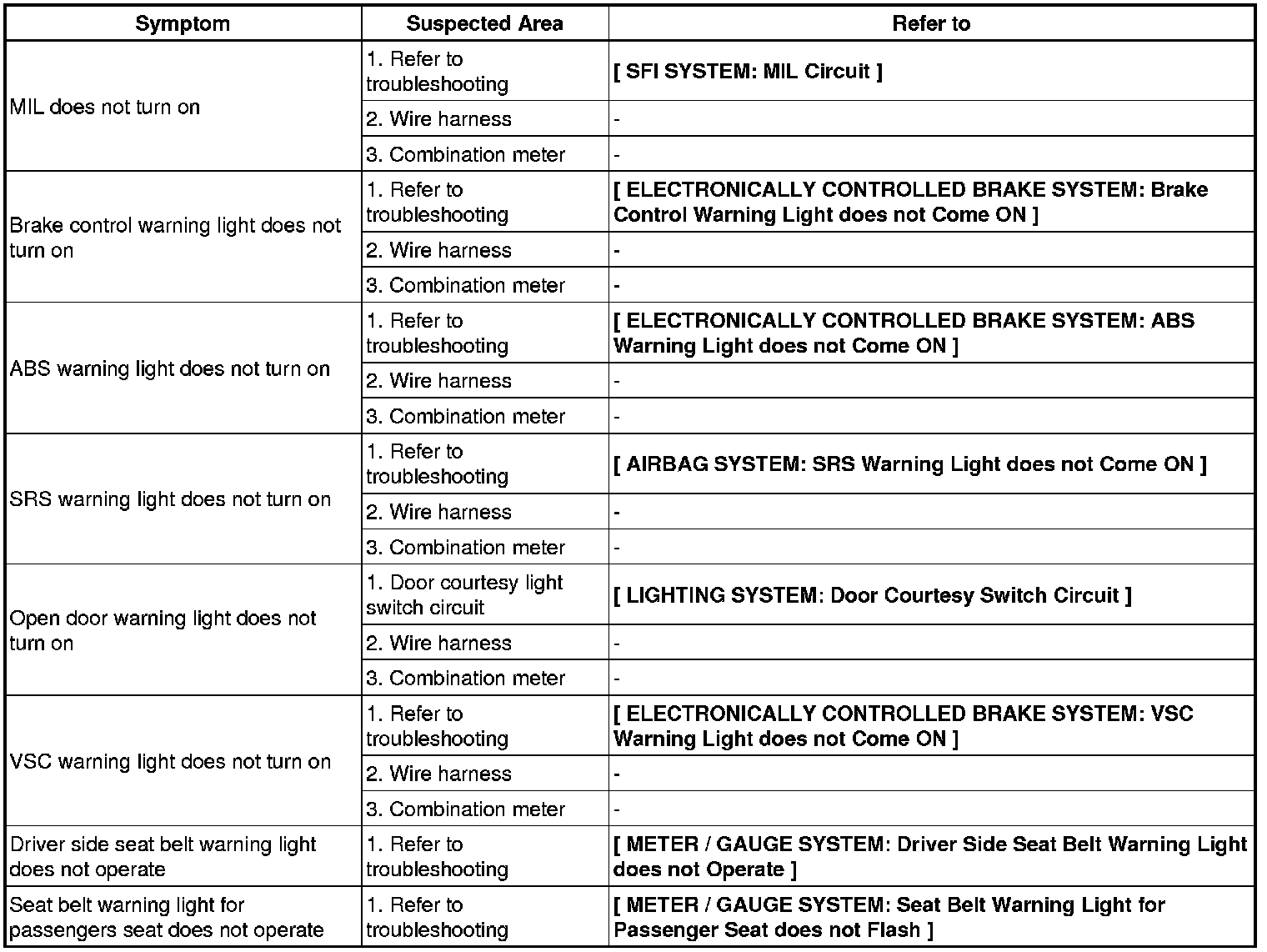

Warning lights

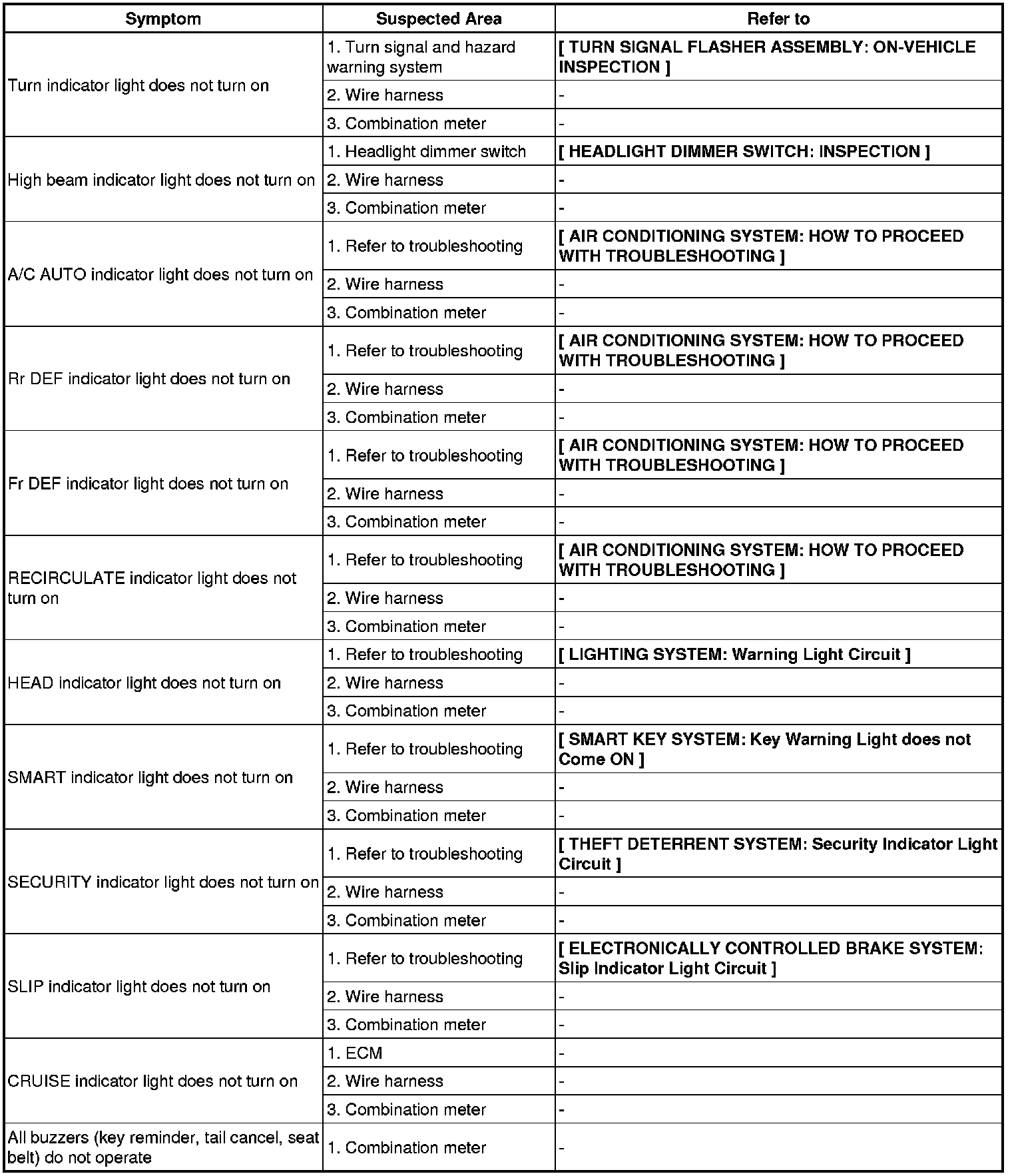

Indicator lights

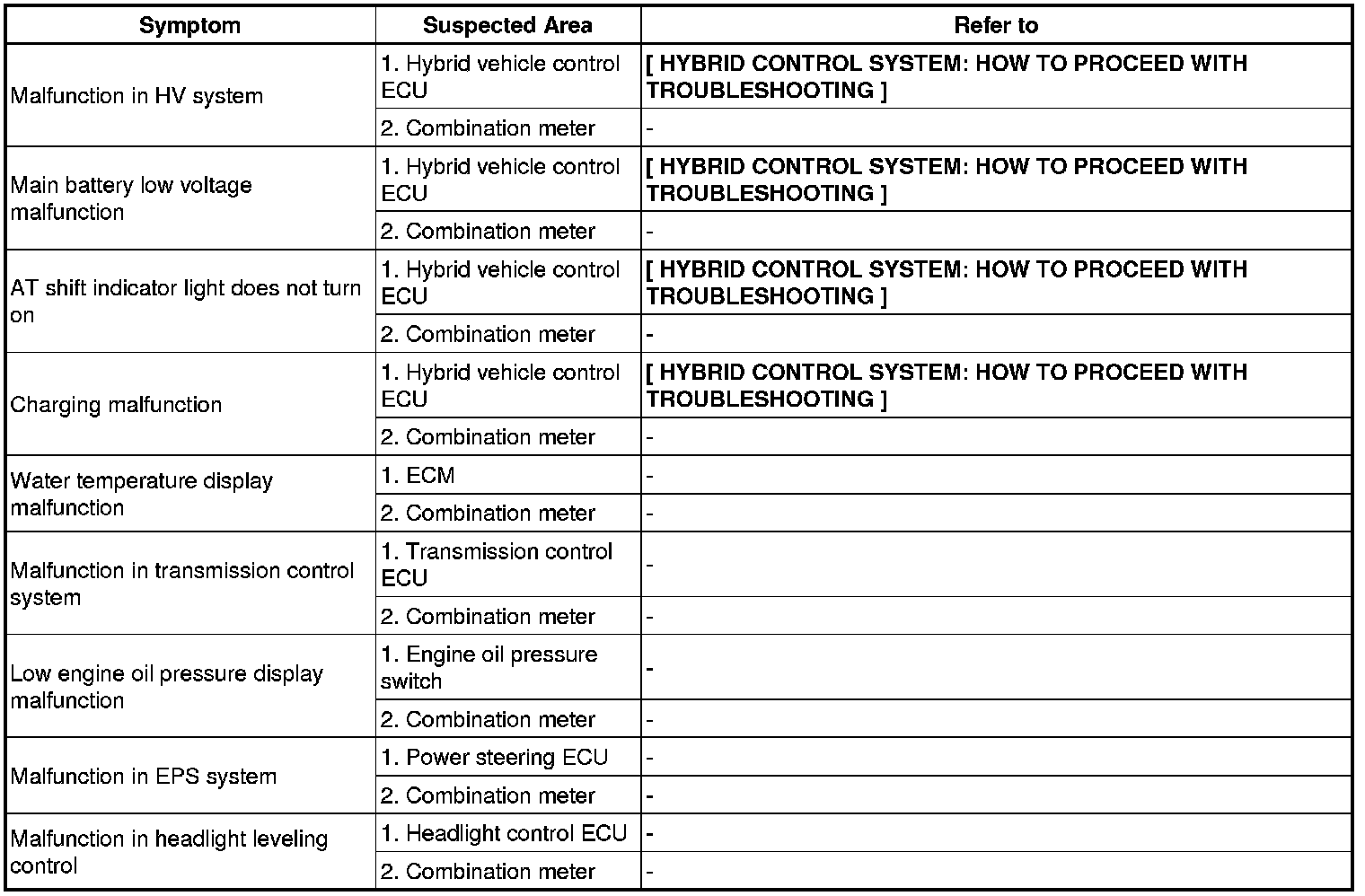

Display warning

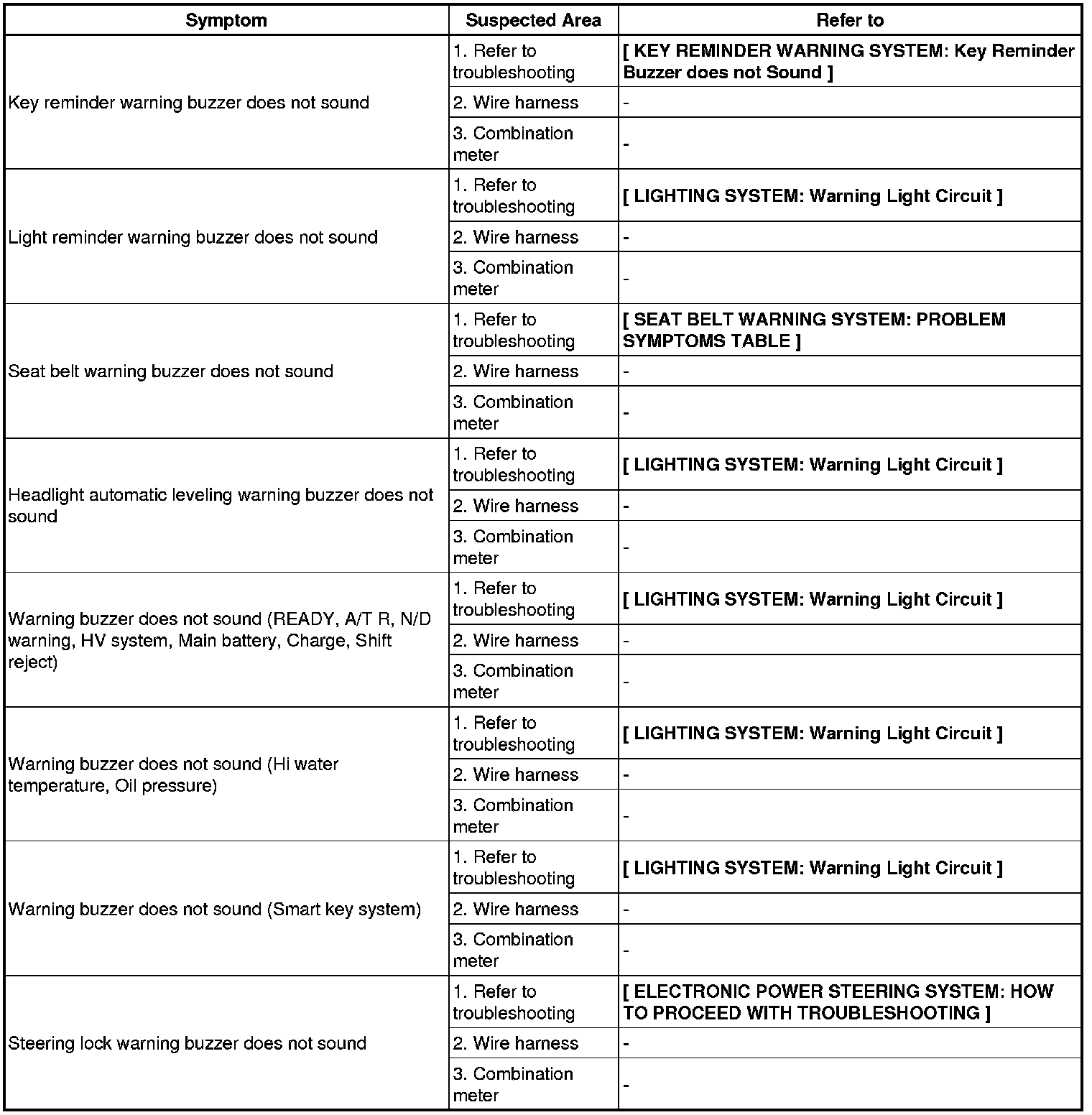

Buzzer
