Seat Belt Warning Light For Passenger Seat Does Not Flash

METER: METER / GAUGE SYSTEM: Seat Belt Warning Light for Passenger Seat does not Flash

Seat Belt Warning Light for Passenger Seat does not Flash

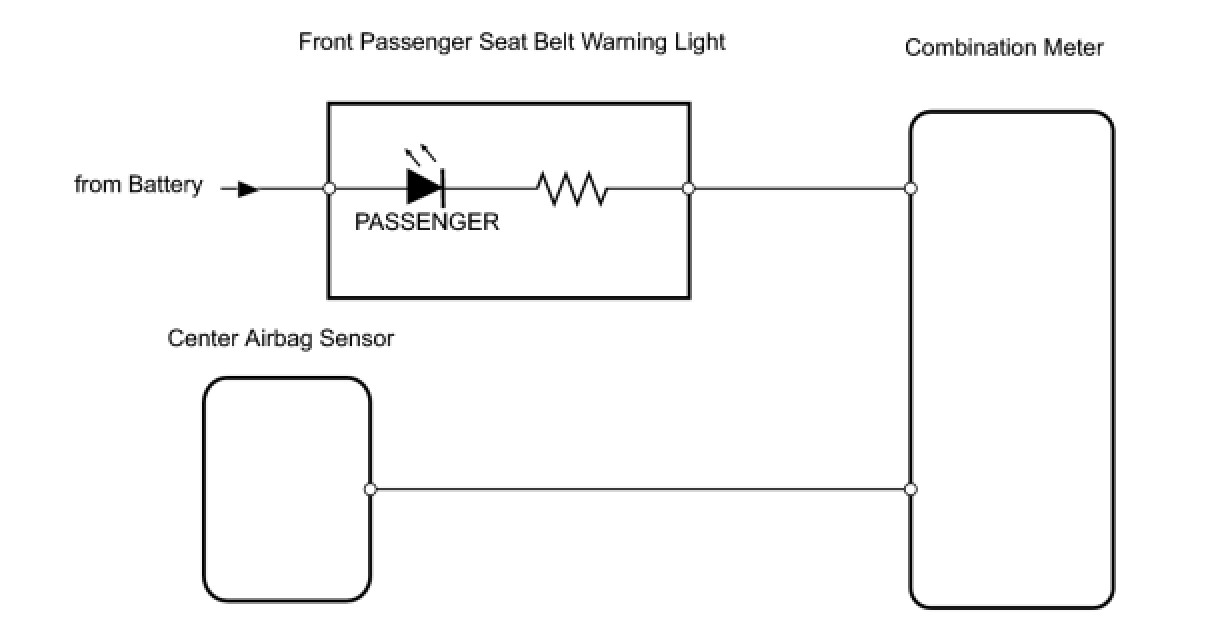

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC
(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.
(b) Check for DTC Reading and Clearing Diagnostic Trouble Codes.
Result :






B -- GO TO OCCUPANT CLASSIFICATION SYSTEM
A -- Continue to next step.

2. CHECK FRONT PASSENGER SEAT BELT WARNING LIGHT




(a) Disconnect the C10 meter connector.
(b) Using a service wire, connect the meter terminal 30 on the wire harness side and body ground.
(c) Check that the passenger seat belt warning light turns on.
OK:
Front passenger seat belt warning light turns on.
NG -- CHECK WIRE HARNESS (WARNING LIGHT - METER AND BATTERY)
OK -- Continue to next step.

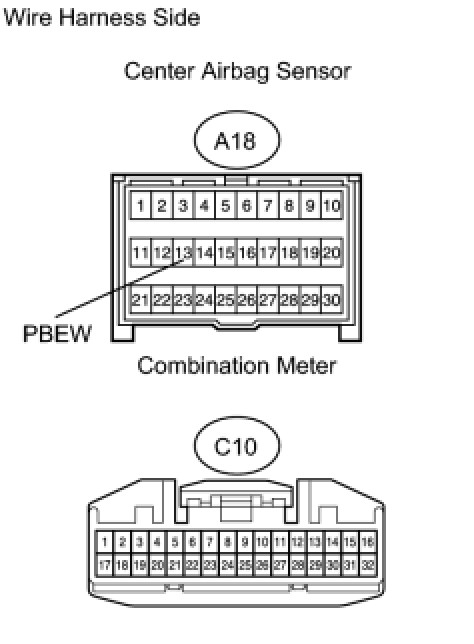

3. CHECK WIRE HARNESS (METER - SENSOR)




(a) Disconnect the A18 sensor connector.
(b) Disconnect the C10 meter connector.
(c) Measure the resistance of the wire harness side connectors.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE COMBINATION METER ASSEMBLY

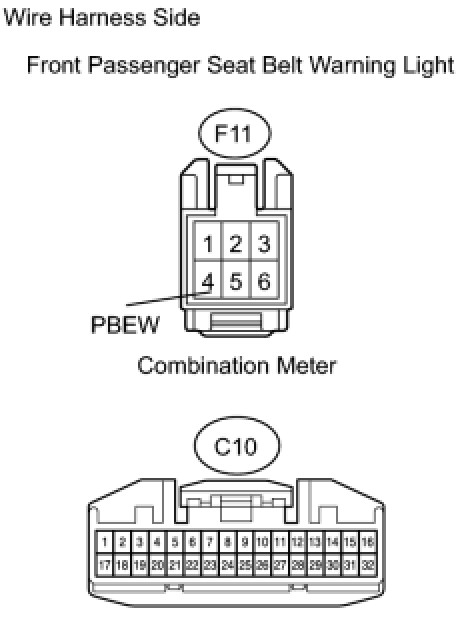

4. CHECK WIRE HARNESS (WARNING LIGHT - METER AND BATTERY)




(a) Disconnect the F11 warning light connector.
(b) Disconnect the C10 meter connector.
(c) Measure the resistance of the wire harness side connectors.
Standard resistance:





(d) Measure the voltage of the wire harness side connector.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE FRONT PASSENGER SEAT BELT WARNING LIGHT
