Removal

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY Disassembly
3. REMOVE CENTER STOP LIGHT ASSEMBLY





(a) Disconnect the connector.

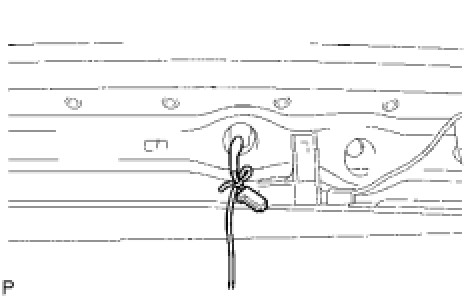

(b) Tie a string around the center stop light assembly cord.

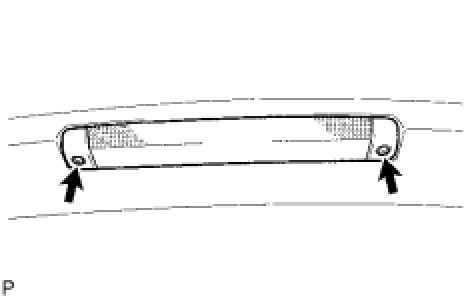

(c) Remove the 2 screws and the center stop light assembly.
NOTE: The string will be used when installing, so leave the string as it is inside the back door.
