Center Mounted Brake Lamp: Testing and Inspection

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. CHECK CENTER STOP LIGHT ASSEMBLY

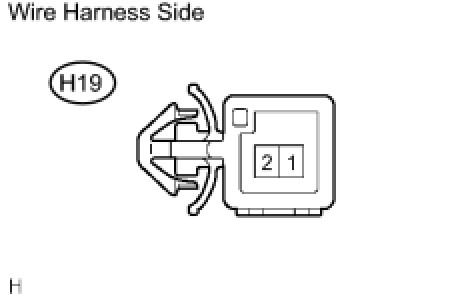

(a) Disconnect the H19 light connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
