Glove Box Lamp: Testing and Inspection

LIGHTING: GLOVE BOX LIGHT: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT GLOVE BOX LIGHT ASSEMBLY

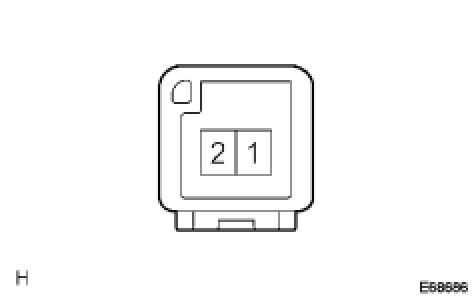

(a) Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, then check that the light comes on.
OK:
Light comes on.
If the result is not as specified, replace the light.
